Installation Procedure

WARNING: This page is about a different car, the 2007 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

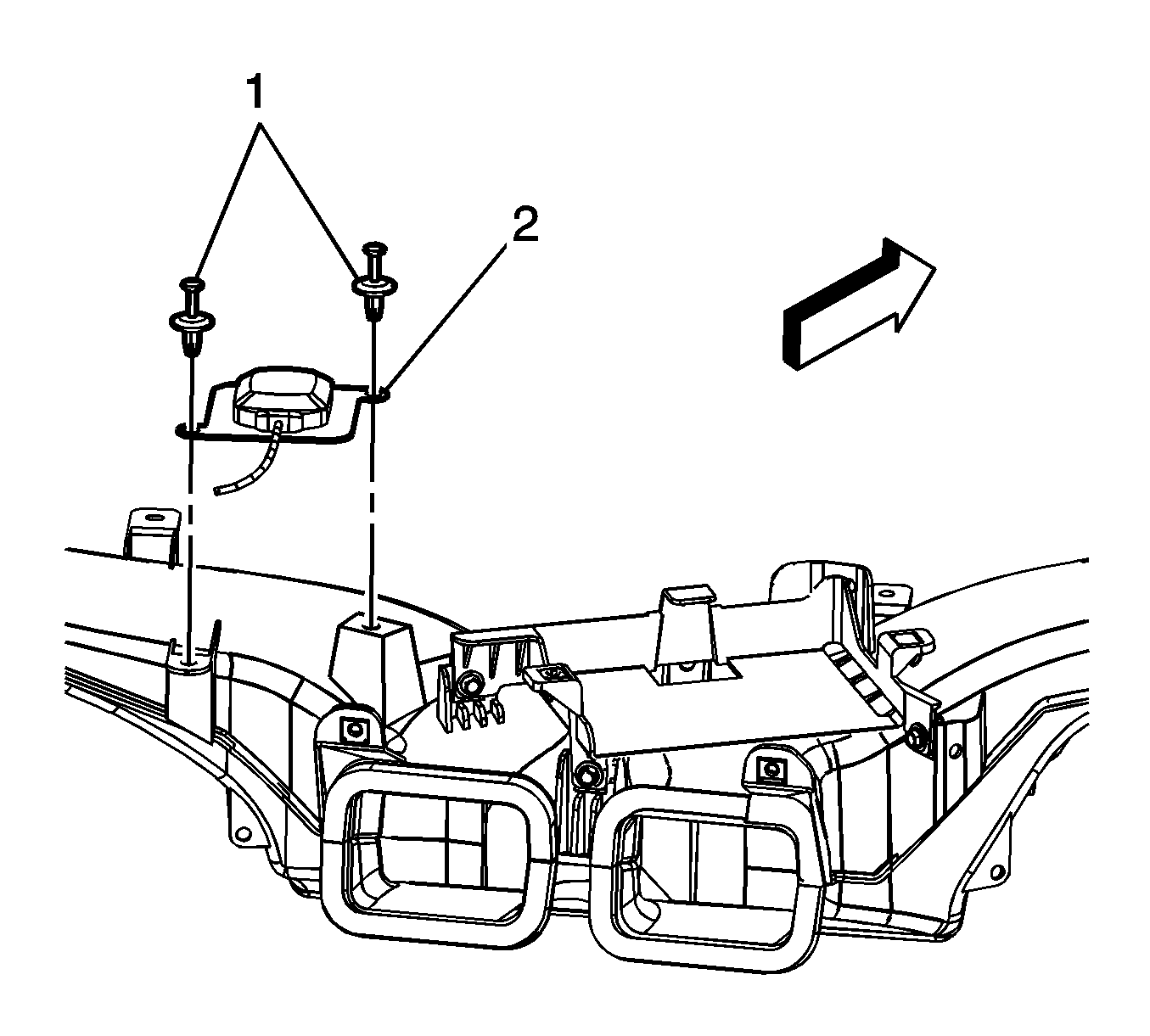

    Fig 1: View Of GPS Antenna & Plastic Rivet Retainers
    GM1509428Courtesy of GENERAL MOTORS CORP.
  1. Position the GPS antenna and the coaxial lead in the vehicle.
  2. Install 2 plastic rivets securing the GPS antenna to the HVAC duct.
  3. Install the I/P assembly. Refer to Instrument Panel Assembly Replacement .
