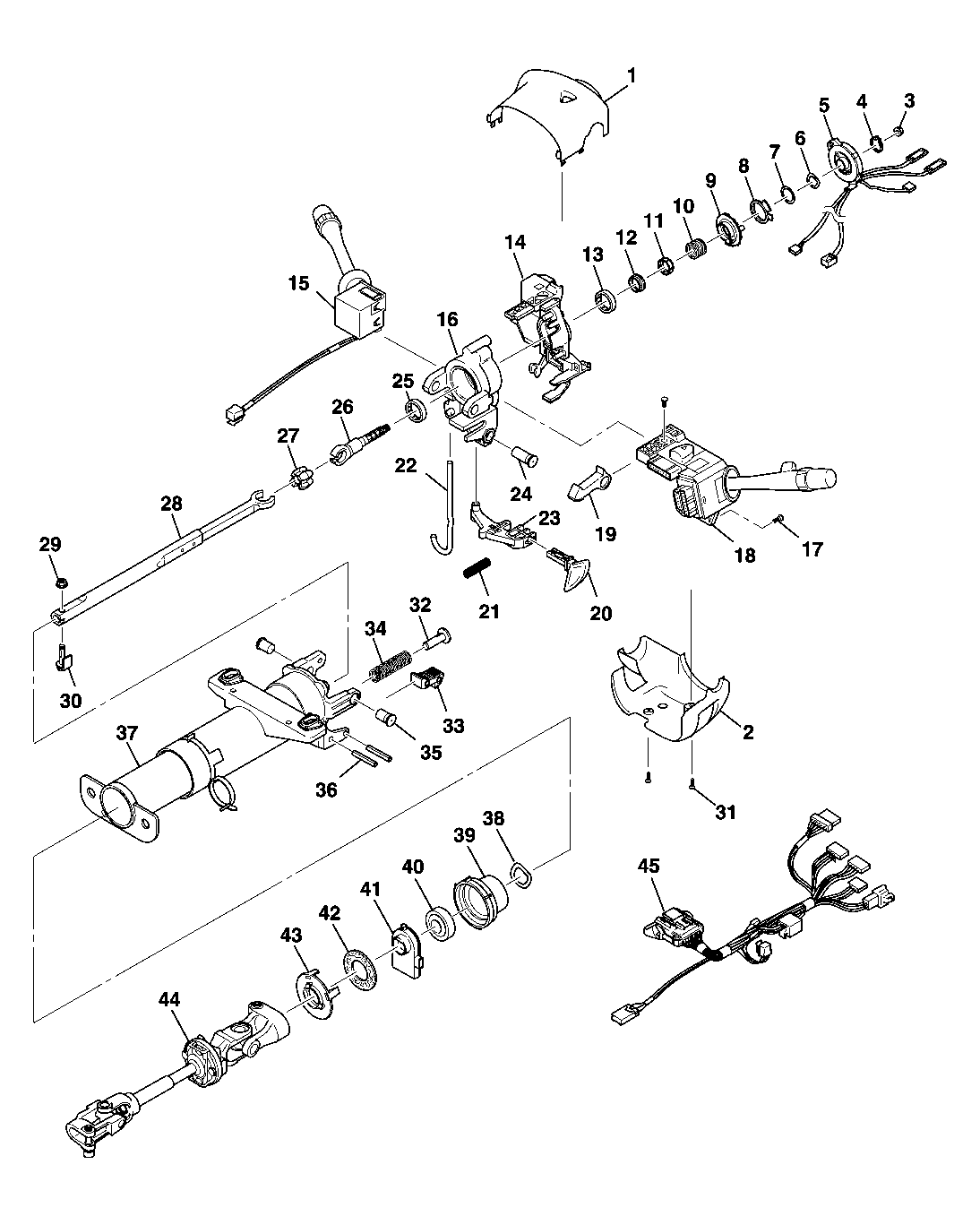

| 1 |
Upper Trim Cover |
| 2 |
Lower Trim Cover |
| 3 |
Flange Prevailing Torque Nut |
| 4 |
Retaining Ring |
| 5 |
SIR Coil |
| 6 |
Wave Washer |
| 7 |
Bearing Retainer |
| 8 |
Cam Orientation Plate |
| 9 |
Turn Signal Cancel Cam |
| 10 |
Upper Bearing Spring |
| 11 |
Inner Race |
| 12 |
Upper Bearing Inner Race Seat |
| 13 |
Bearing Assembly |
| 14 |
Switch Mounting Bracket |
| 15 |
Washer Wipe Switch Assembly |
| 16 |
Steering Column Tilt Head Assembly |
| 17 |
Pan Head Tapping Screws |
| 18 |
Turn Signal Multifunction Switch Assembly |
| 19 |
Steering Wheel Lock Shoe |
| 20 |
Tilt Knob |
| 21 |
Compression Spring |
| 22 |
Steering Column Anti Rotation Pin |
| 23 |
Shoe Release Lever |
| 24 |
Shoe Pivot Pin |
| 25 |
Bearing Assembly |
| 26 |
Race and Upper Shaft Assembly |
| 27 |
Centering Sphere |
| 28 |
Lower Steering Shaft Assembly |
| 29 |
Nut |
| 30 |
Bolt and Retainer Assembly |
| 31 |
Pan Head Tapping Screws |
| 32 |
Spring Guide |
| 33 |
Steering Wheel Lock Shoe |
| 34 |
Tilt Spring |
| 35 |
Pivot Pins |
| 36 |
Spring Pins |
| 37 |
Steering Column Jacket Assembly |
| 38 |
Washer Assembly Spring |
| 39 |
Bearing and Adapter Assembly |
| 40 |
Lower Bearing Assembly |
| 41 |
Steering Wheel Position Sensor |
| 42 |
Steering Shaft Seal |
| 43 |
Sensor Retainer |
| 44 |
Intermediate Shaft |
| 45 |
Wire Harness Assembly |
