Body Control System Schematics

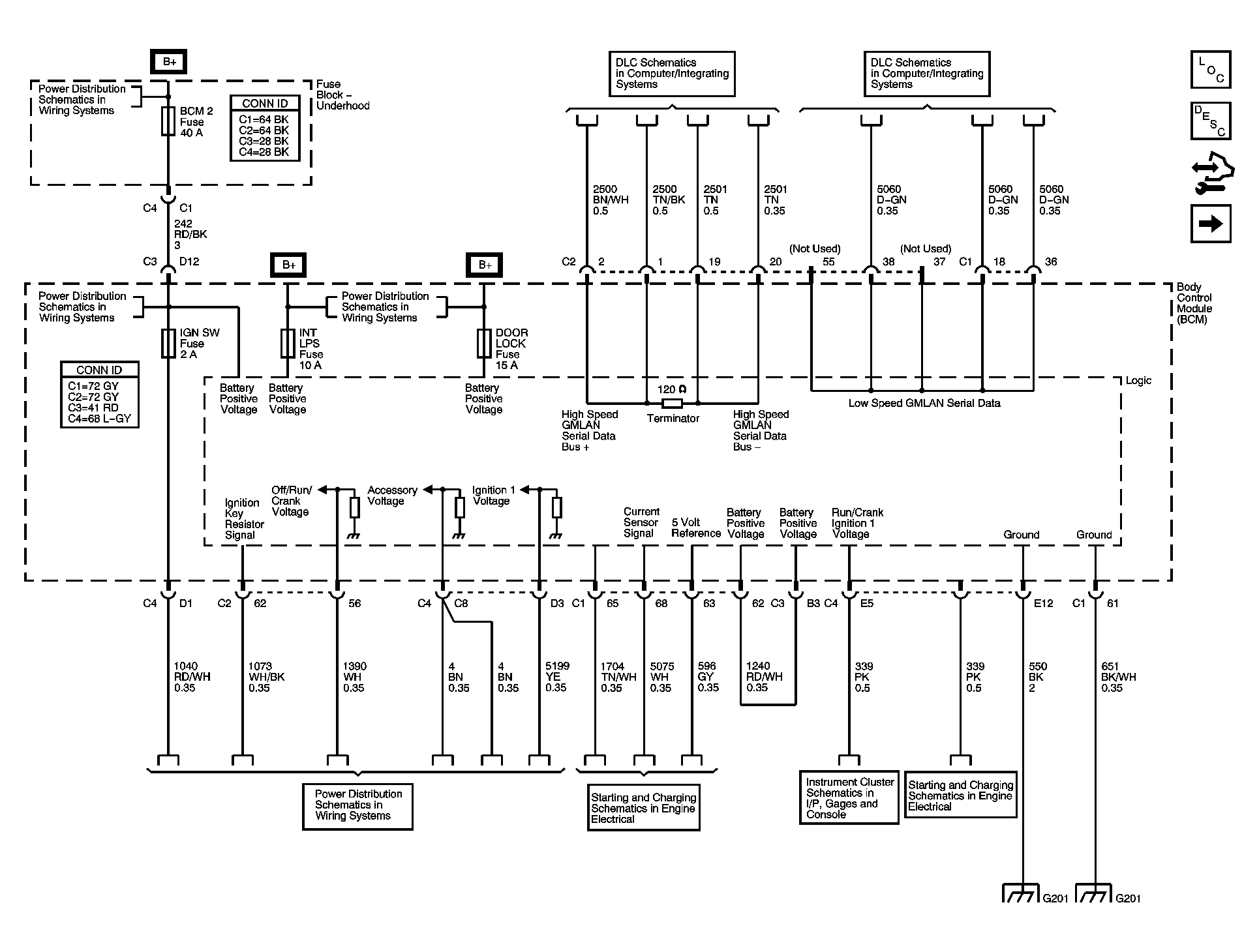

Fig 1: Power and Ground, Data Link, and Engine Reference

Courtesy of GENERAL MOTORS CORP.

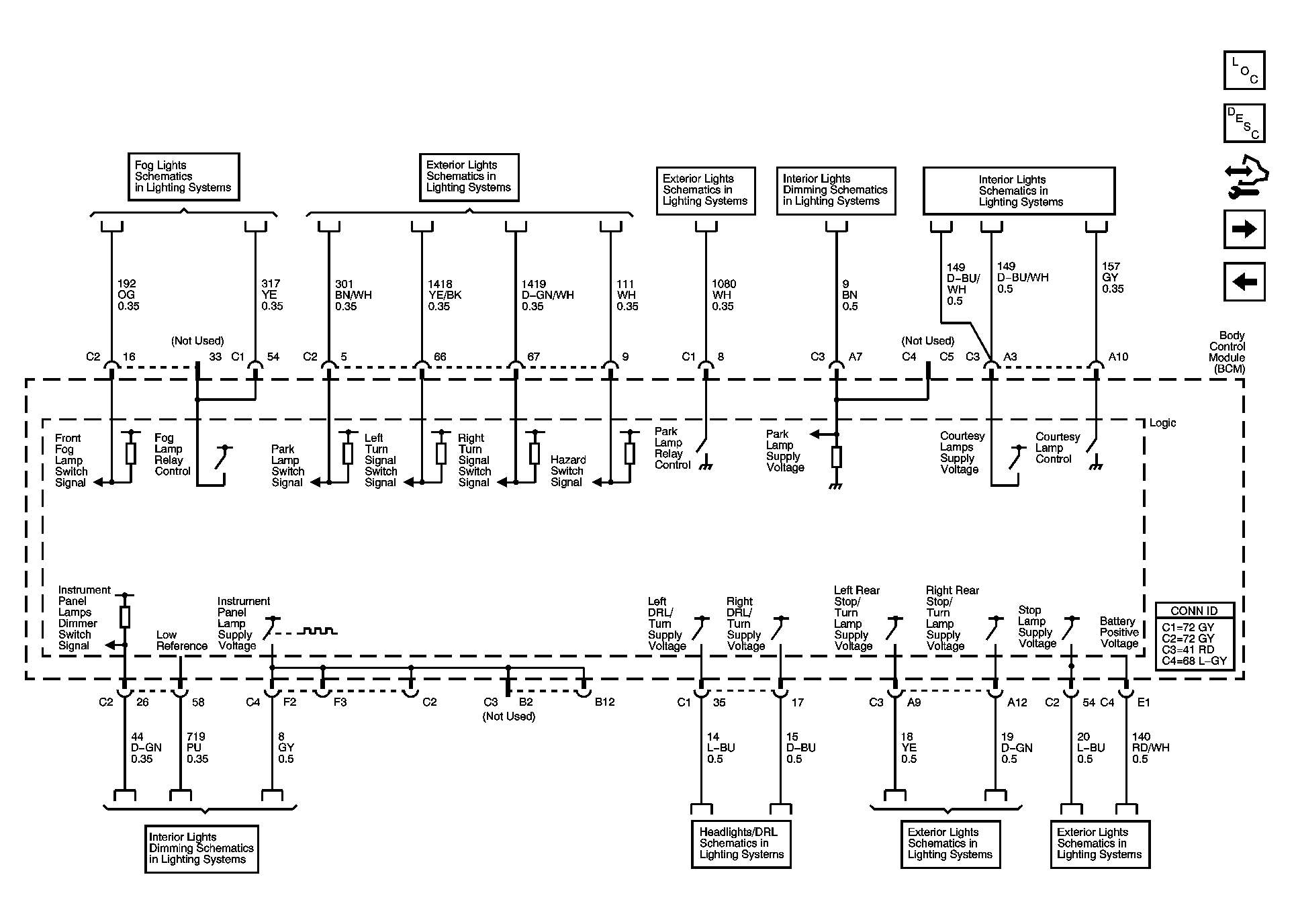

Fig 2: Lighting System Reference

Courtesy of GENERAL MOTORS CORP.

Fig 3: ABS, Brake Warning, Cruise Control, Door Lock, and Engine Cooling

Courtesy of GENERAL MOTORS CORP.

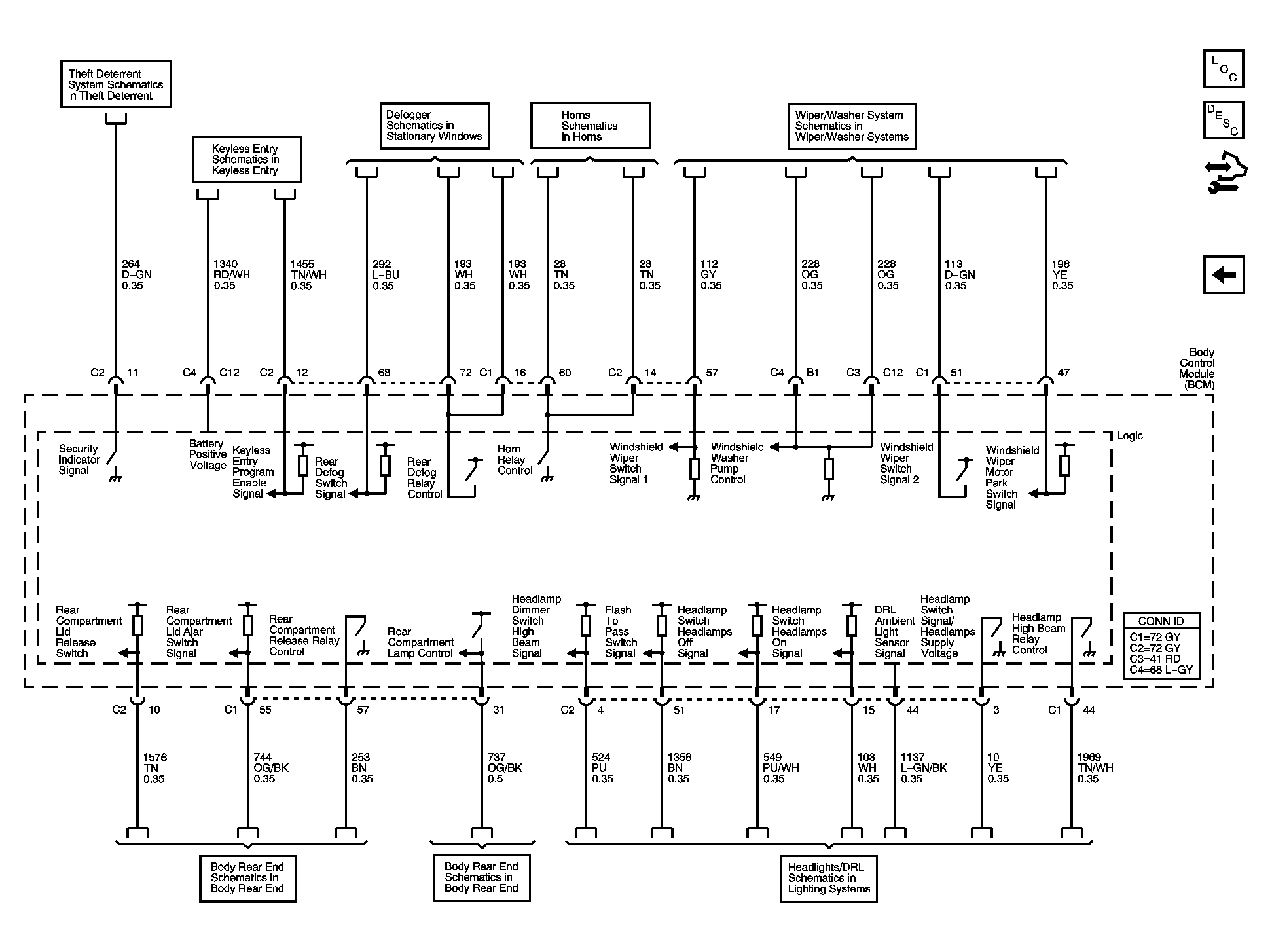

Fig 4: Body Rear End, Defogger, Headlamp, Horns, and Wiper/Washer Reference

Courtesy of GENERAL MOTORS CORP.
