Ignition Coil 1

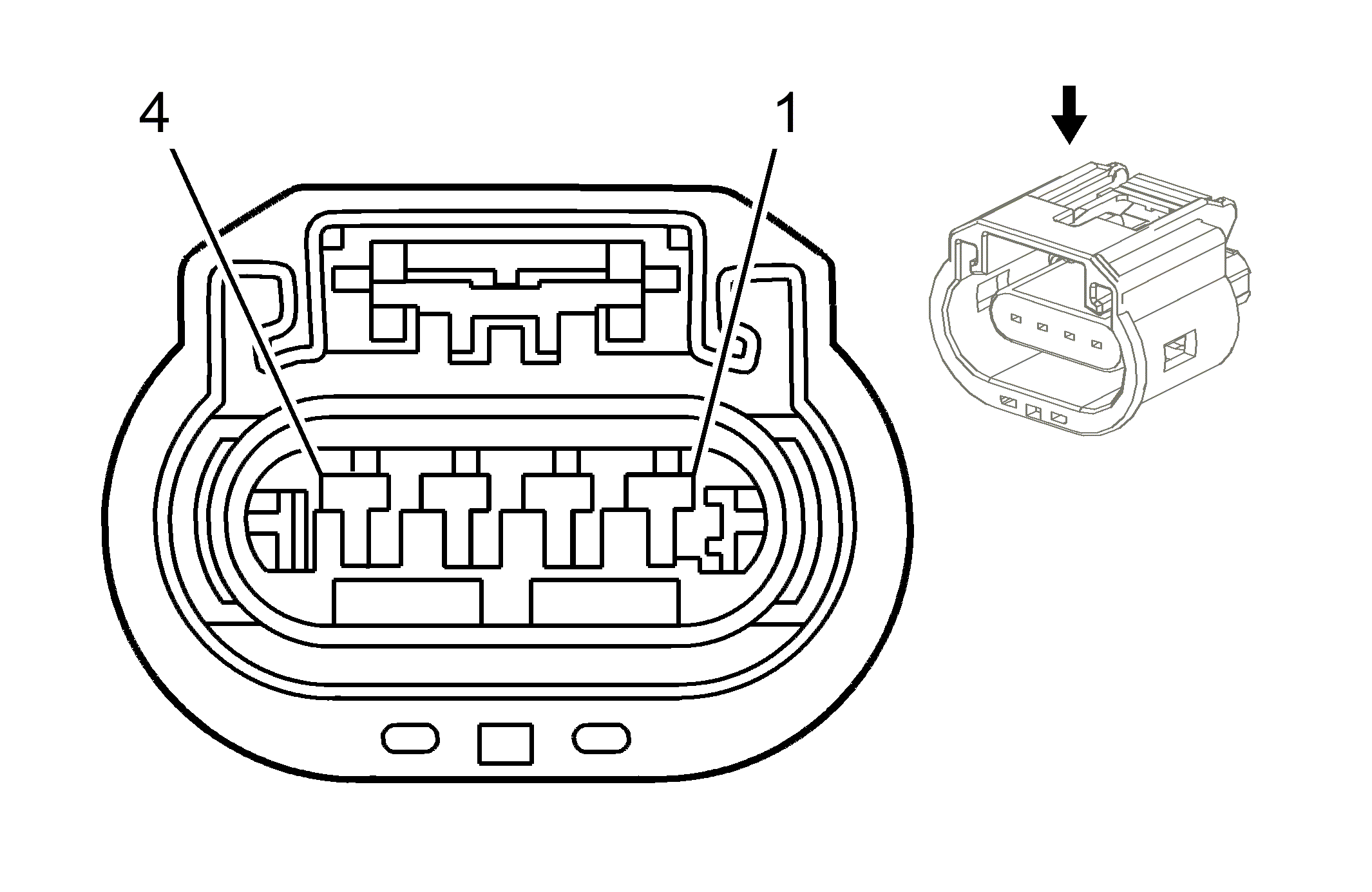

Fig 1: Ignition Coil 1 Connector View

GM1590069

Courtesy of GENERAL MOTORS CORP.

Engine Controls Connector End Views

Connector Part Information

OEM: 7283-3392-30
Service: See Catalog
Description: 4-Way F GT 150 Series (BK)

Terminal Part Information

Pins:
Terminal: TBD
Core/Insulation Crimp: TBD
Release Tool/Test Probe: TBD

Ignition Coil 1

Pin	Wire Color	Circuit No.	Function
1	BK	450	Ground (LE5)
2	BN	2129	Ignition Control Low Reference Bank 1 (LE5)
3	PU	2121	Ignition Control (1) (LE5)
4	PK/BK	5292	Engine Main Relay Fused Control (3) (LE5)
