Remote Power Steering Fluid Reservoir Replacement

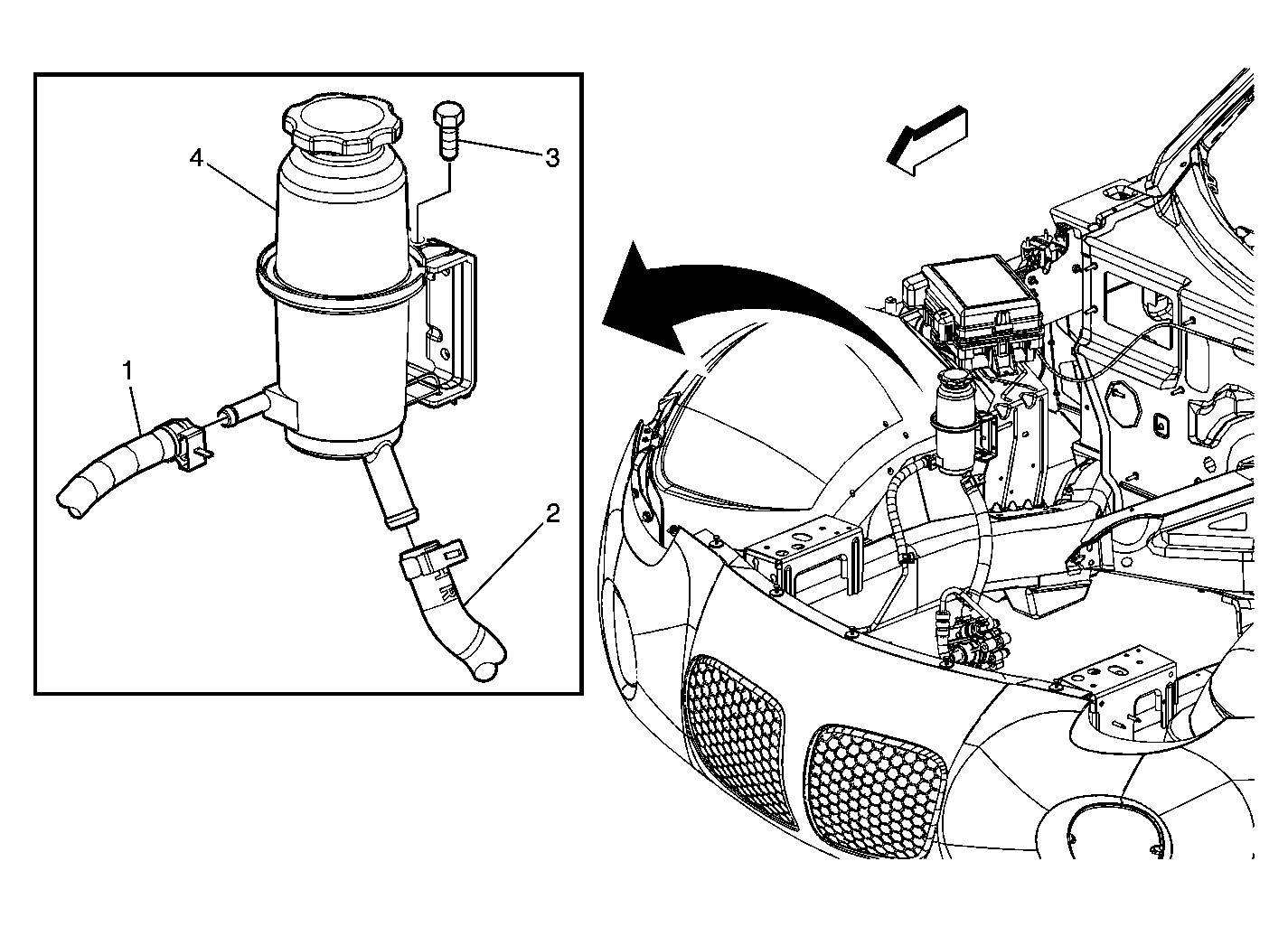

Fig 1: Remote Power Steering Fluid Reservoir

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Hose between the Power Steering and the Reservoir Clamp (Qty: 10) Tip: Using the appropriate tool, drain the power steering reservoir. Tighten: 10 N.m (89 lb in)
2	Hose Between the Power Steering Reservoir and the Power Steering Pump Hose (Qty: 1) Tighten: 10 N.m (89 lb in)
3	Power Steering Reservoir Mounting Bolt (Qty: 1) Tighten: 10 N.m (89 lb in)
4	Power Steering Reservoir Tip: Bleed the power steering system. Refer to Bleeding the Power Steering System . Fill the power steering system. Refer to Checking and Adding Power Steering Fluid .
