Cruise Control Component Views

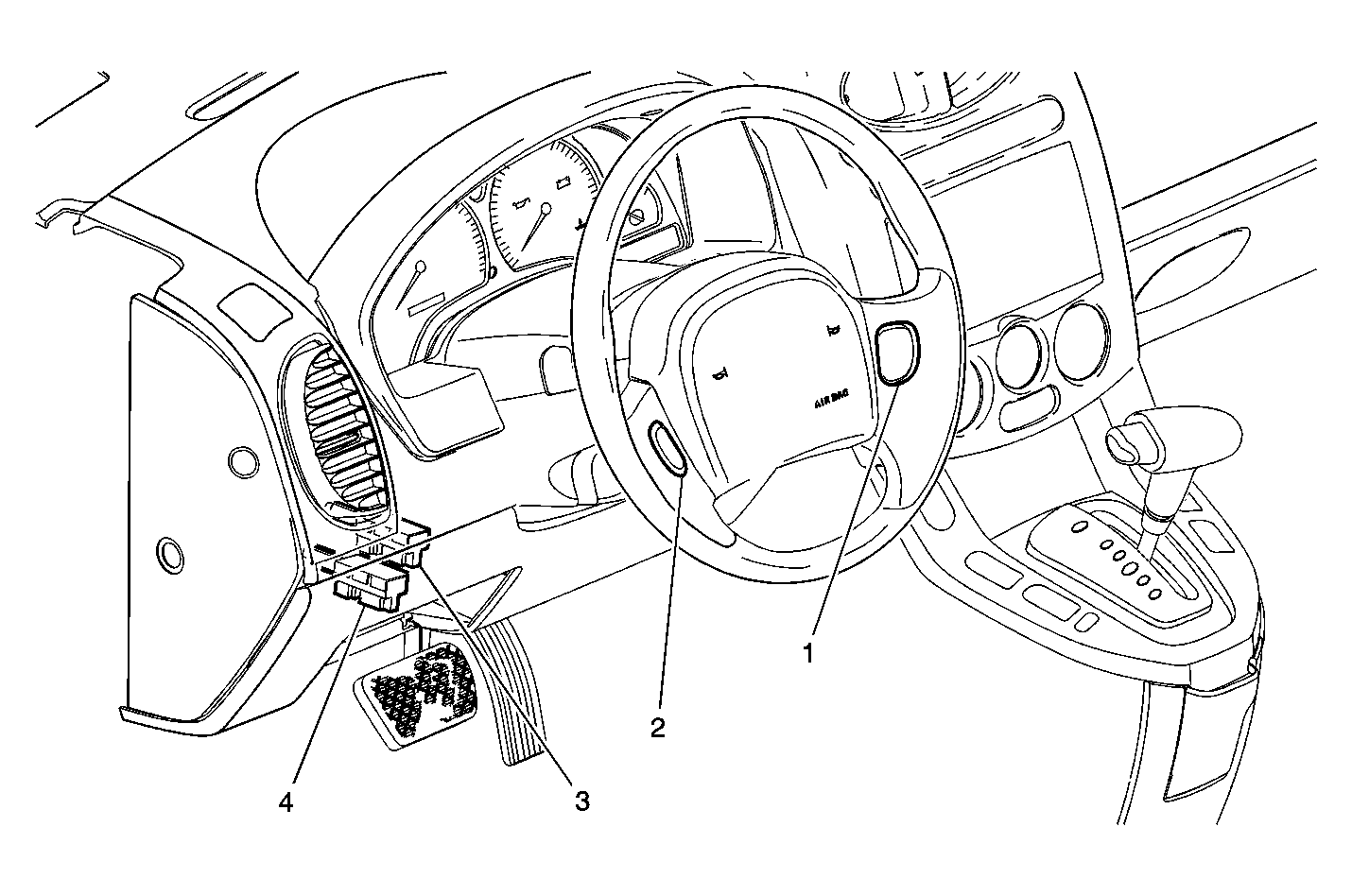

Fig 1: Cruise Control Components - Chevrolet Shown, Pontiac Similar

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Wheel Control Switch - Right
2	Steering Wheel Control Switch - Left
3	Cruise/Brake Switch
4	Stop Lamp Switch
