Theft Deterrent System Component Views

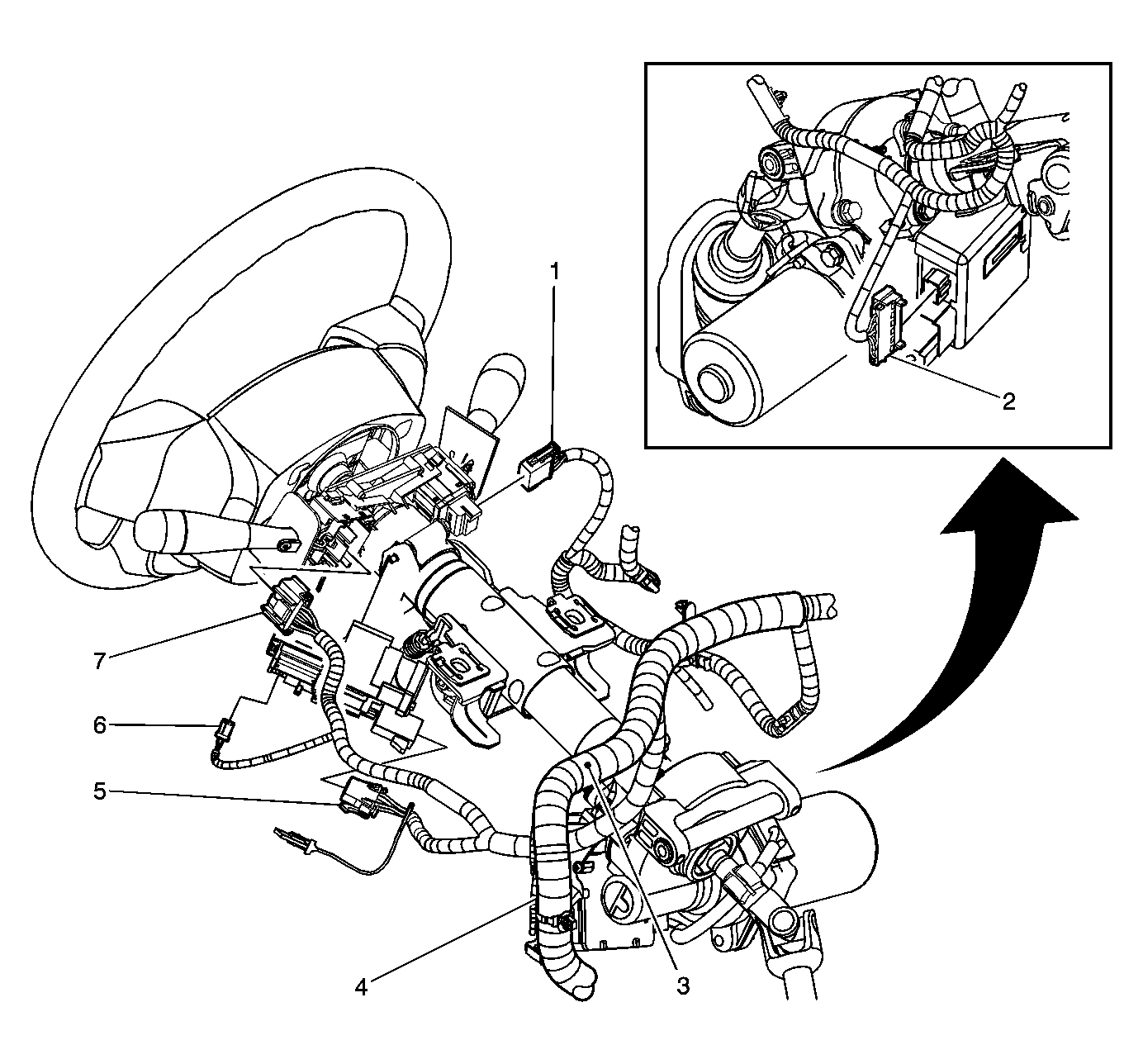

Fig 1: View of Left Side of the I/P, Steering Column Connections Harness Routing
GM1381734Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Headlamp Switch
2 Power Steering Control Module (PSCM) C2
3 S200
4 I/P Harness
5 Ignition Switch
6 Passlock Sensor
7 Windshield Wiper/Washer Switch
