Removal Procedure

CAUTION: In order to prevent SIR deployment, personal injury, or unnecessary SIR system repairs, do not strike the door or the door pillar in the area of the side impact sensor (SIS). Turn OFF the ignition and remove the key when performing service in the area of the SIS.

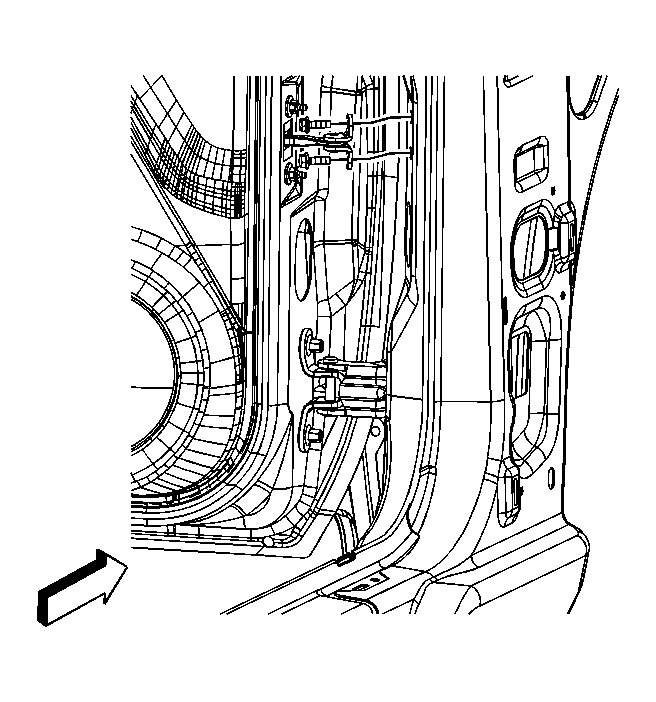

Fig 1: View Of Front Door Check Link Bolts

Courtesy of GENERAL MOTORS CORP.

Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door .
Remove the front door lower speaker. Refer to Speaker Replacement - Front Door in Entertainment.
Remove the check link bolts at the hinge pillar.

Fig 2: View Of Front Door Check Link & Nuts

Courtesy of GENERAL MOTORS CORP.

Remove the check link nuts from the door frame.
Remove the check link from the door through the speaker opening.
