Removal Procedure

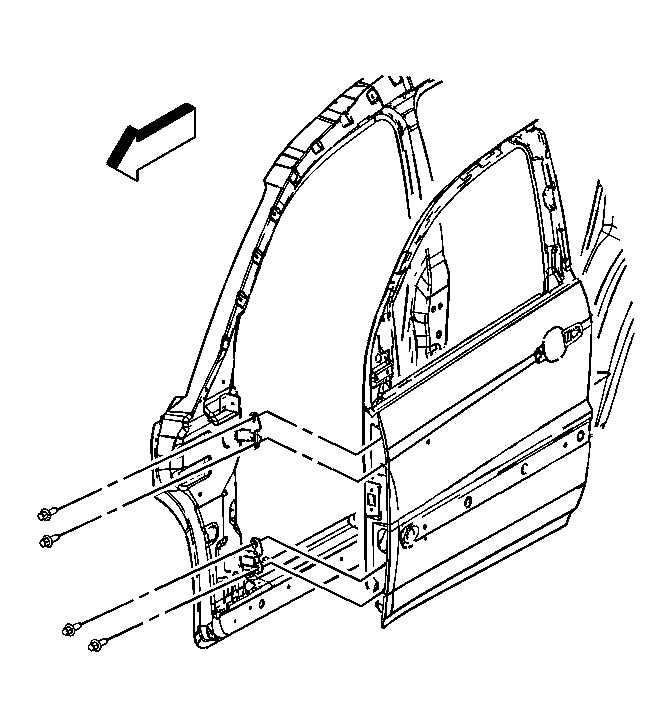

Fig 1: View Of Front Door

Courtesy of GENERAL MOTORS CORP.

CAUTION: In order to prevent SIR deployment, personal injury, or unnecessary SIR system repairs, do not strike the door or the door pillar in the area of the side impact sensor (SIS). Turn OFF the ignition and remove the key when performing service in the area of the SIS.

Remove the front fender. Refer to Fender Replacement - Front in Body Front End.
Disconnect the wiring harness connectors at the door jamb.
Remove the front door check link. Refer to Door Check Link Replacement - Front .
Support the door.
Using a soft marker, mark around the outside of the hinge for installation purposes.
With the aid of an assistant, remove the door hinge to body bolts.
With the aid of an assistant, remove the front door from the vehicle.
