Removal Procedure

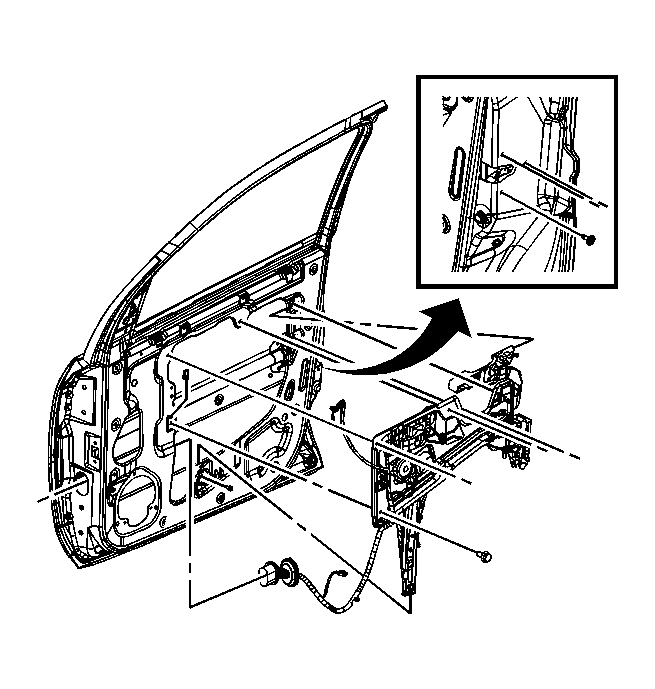

    Fig 1: View Of Front Door Window Regulator Module
    GM1378613Courtesy of GENERAL MOTORS CORP.
  1. Remove the front door window regulator module. Refer to Window Regulator Replacement - Front Door .
  2. Disconnect the outside handle rod from the latch.
    3. Fig 2: View Of Outside Handle Bracket & Lock Cylinder Rod
    GM1383008Courtesy of GENERAL MOTORS CORP.
  3. Remove the outside handle bracket.
  4. Disconnect the lock cylinder rod from the latch.
  5. Disconnect the latch electrical connector.

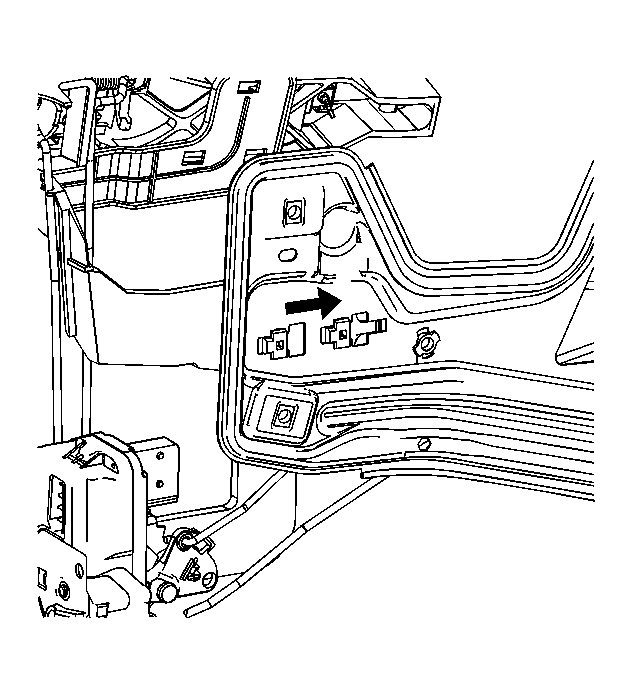

    6. Fig 3: View Of Latch Arm, Inside Handle Rod & Lock Button Rod
    GM1383040Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the latch arm from the window regulator module by depressing the tab and sliding rearward.
  7. Disconnect the inside handle rod and lock button rod by twisting the latch.
    8. Fig 4: Removing/Installing Latch
    GM1383034Courtesy of GENERAL MOTORS CORP.
  8. Remove the latch from the latch arm by twisting.
