Power Steering System Schematics
Power Steering System Schematics

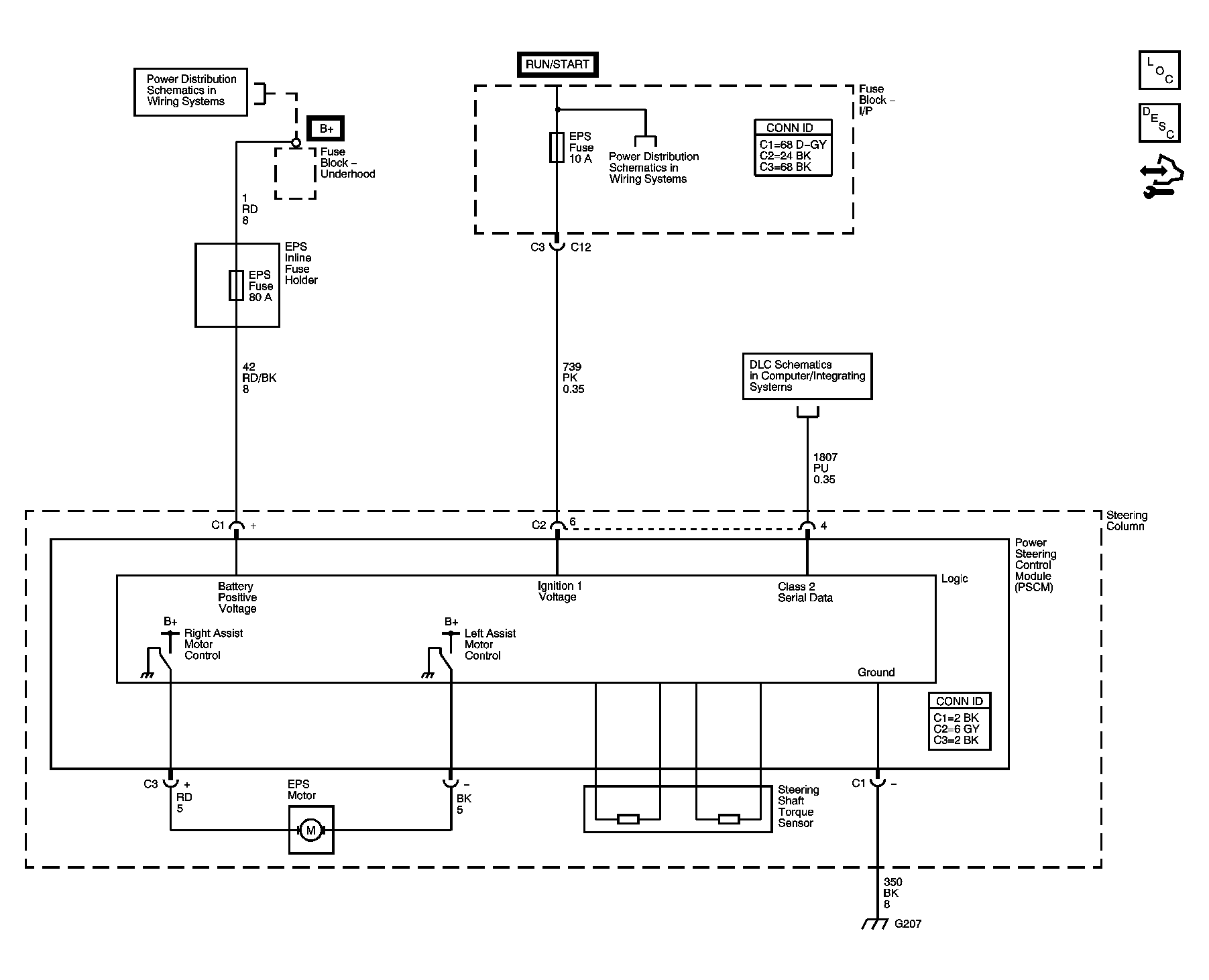

Fig 1: Power Steering System Schematics
Courtesy of GENERAL MOTORS CORP.
