Home › Pontiac › 2006 › Torrent FWD › Repair and Diagnosis › Transmission › Automatic Trans › Shift Interlock System › Component Locator › Automatic Transmission Shift Lock Control Component Views

Automatic Transmission Shift Lock Control Component Views

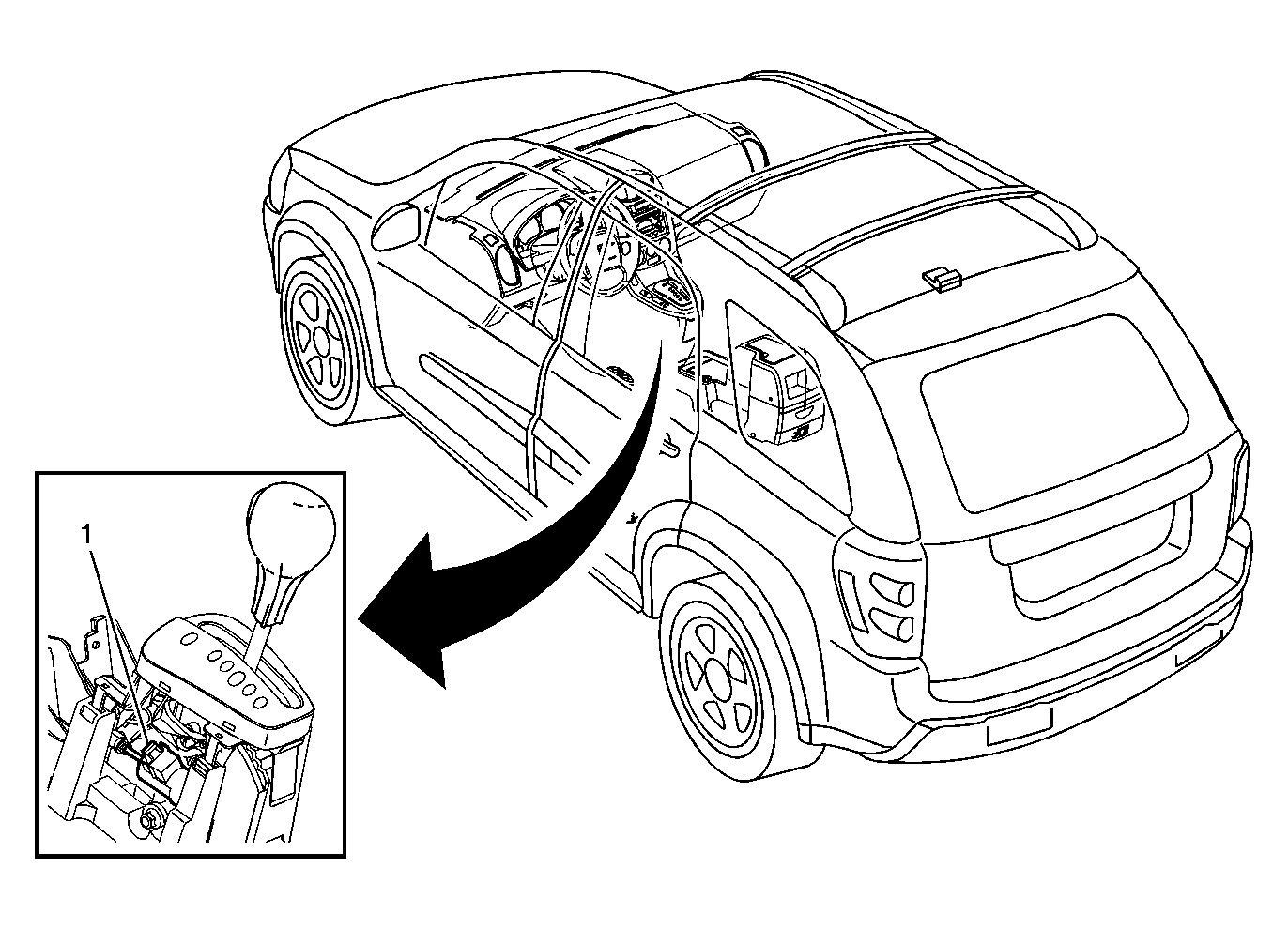

Fig 1: A/T Shift Lock Controls Component View
GM1336283Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 A/T Shift Lock Control Solenoid
