Power Window Schematics

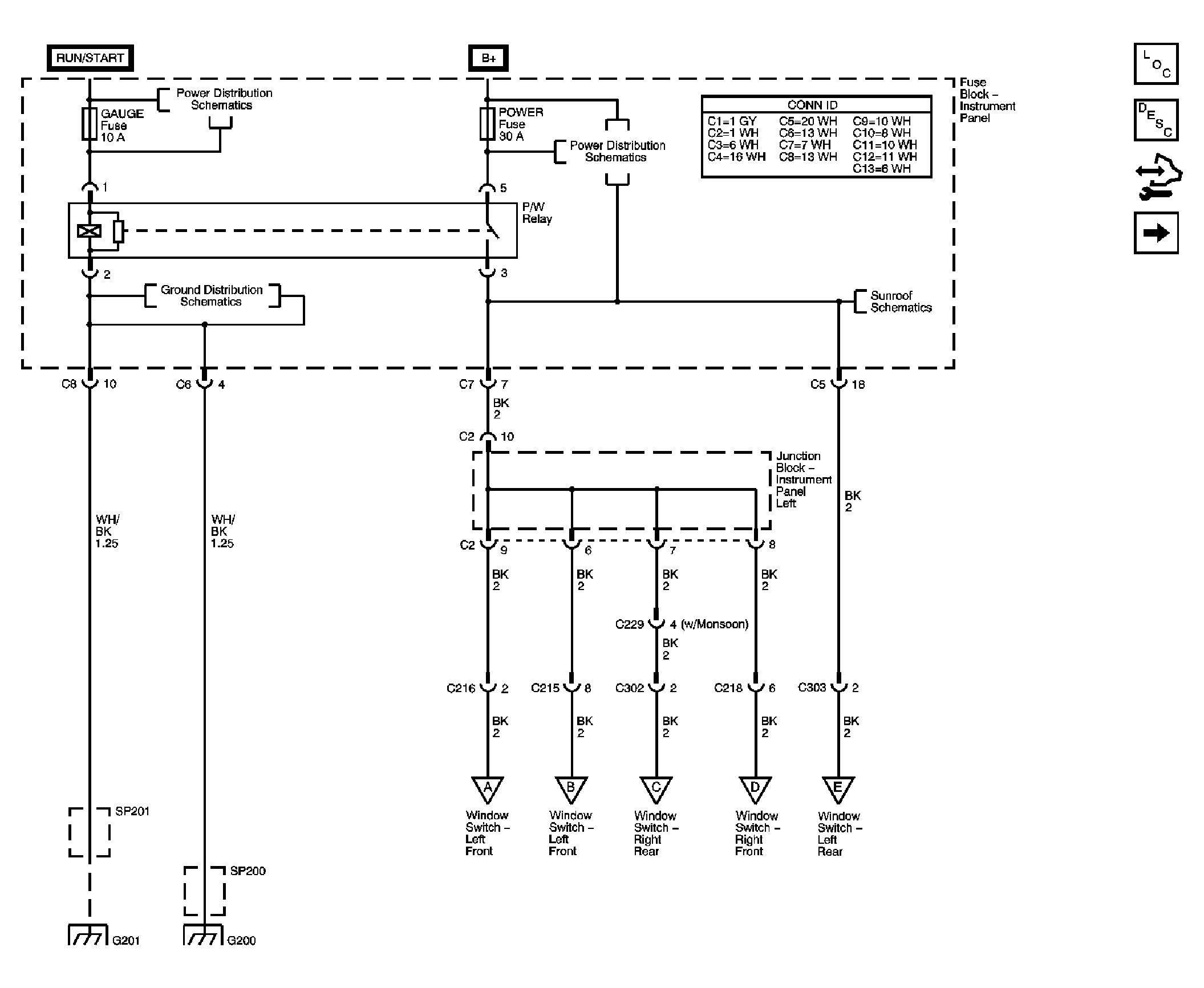

Fig 1: 1 of 2
GM1426674Courtesy of GENERAL MOTORS CORP.

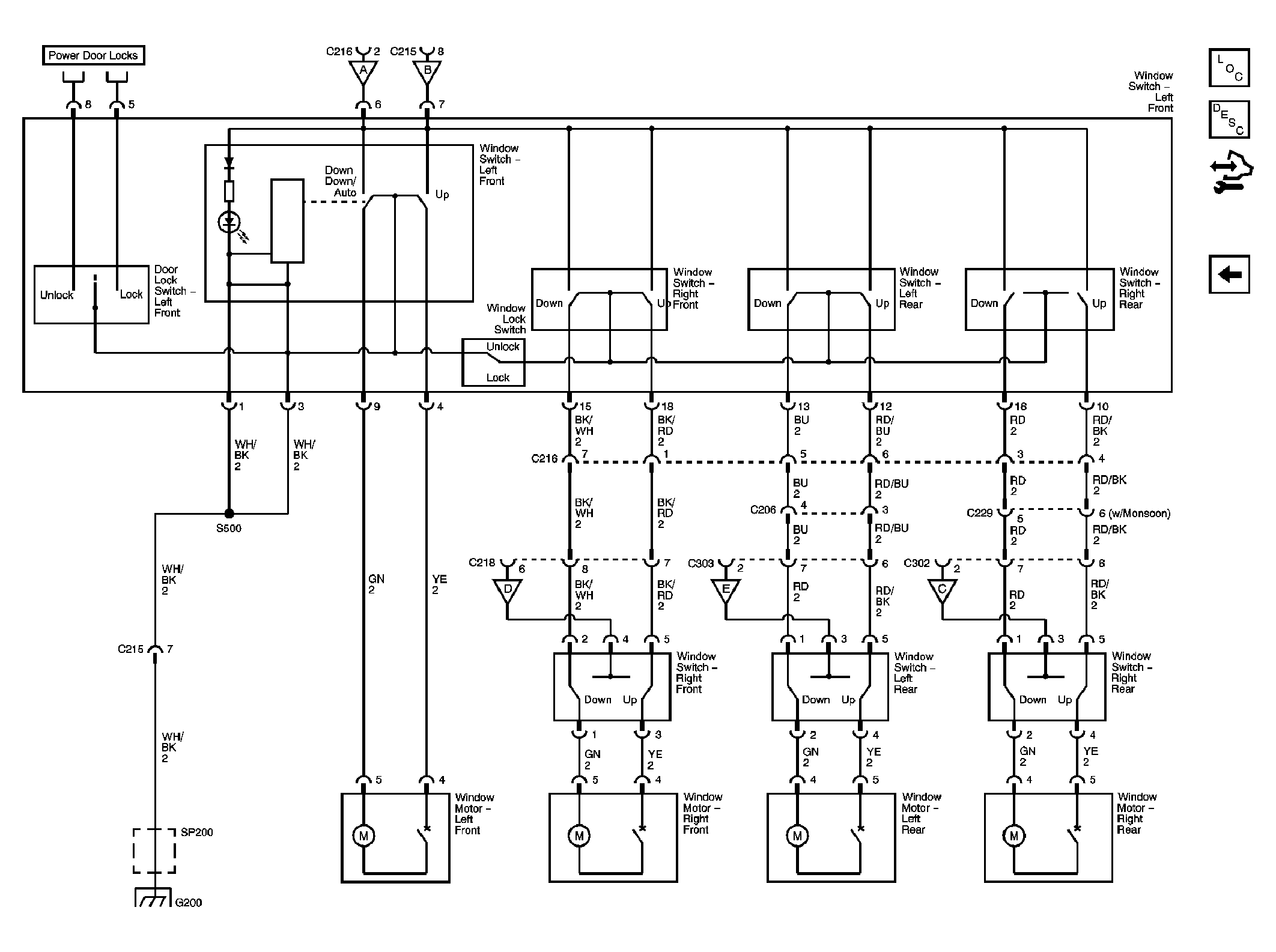

Fig 2: 2 of 2
GM1426675Courtesy of GENERAL MOTORS CORP.
