Home › Pontiac › 2006 › Vibe Base, AWD › Repair and Diagnosis › Body & Frame › Windows › Stationary Window System › Schematic and Routing Diagrams › Defogger Schematics

Defogger Schematics

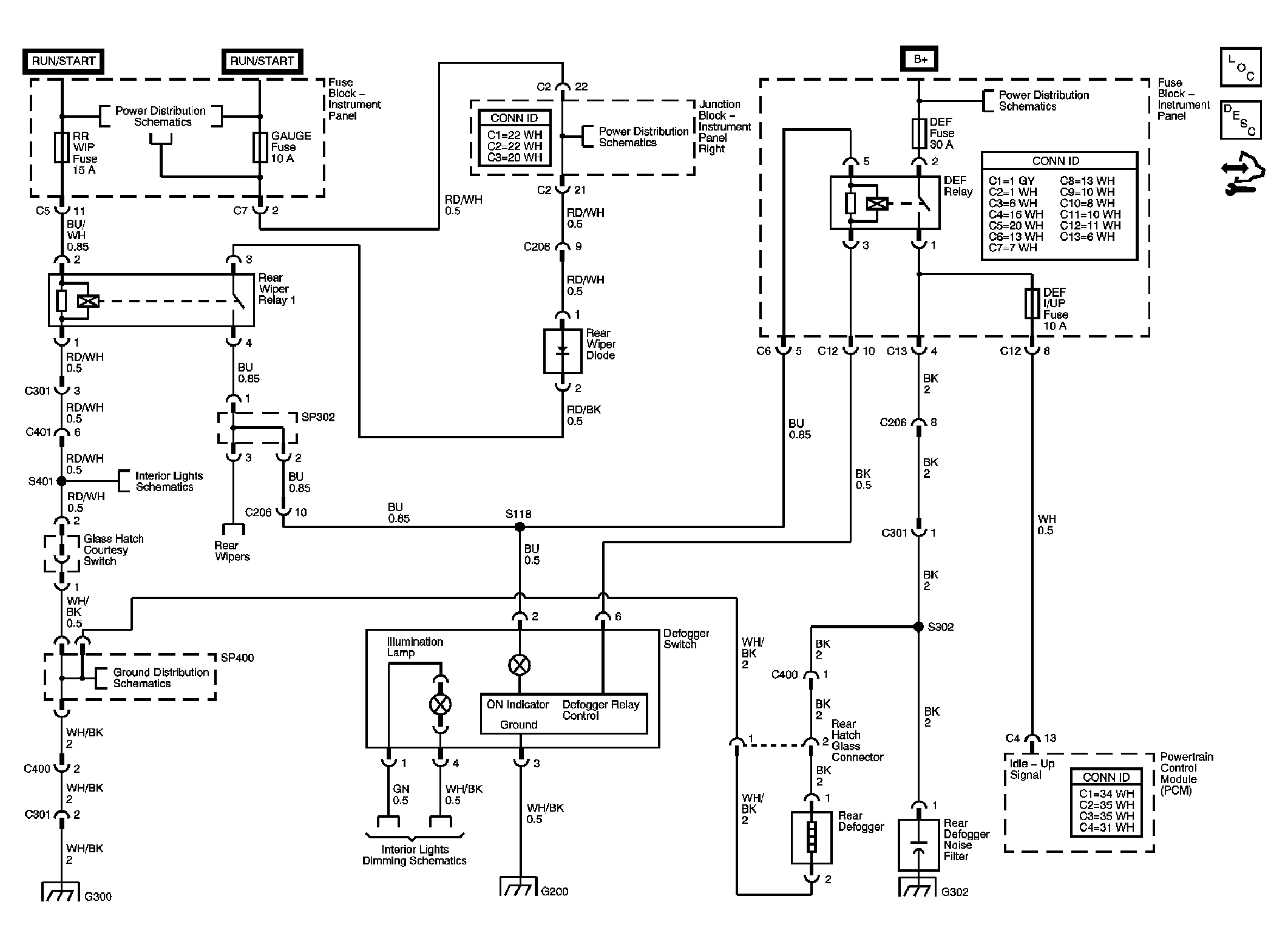

Fig 1: Defogger Schematics
GM1424566Courtesy of GENERAL MOTORS CORP.
