Power Steering Schematics
Power Steering Schematics

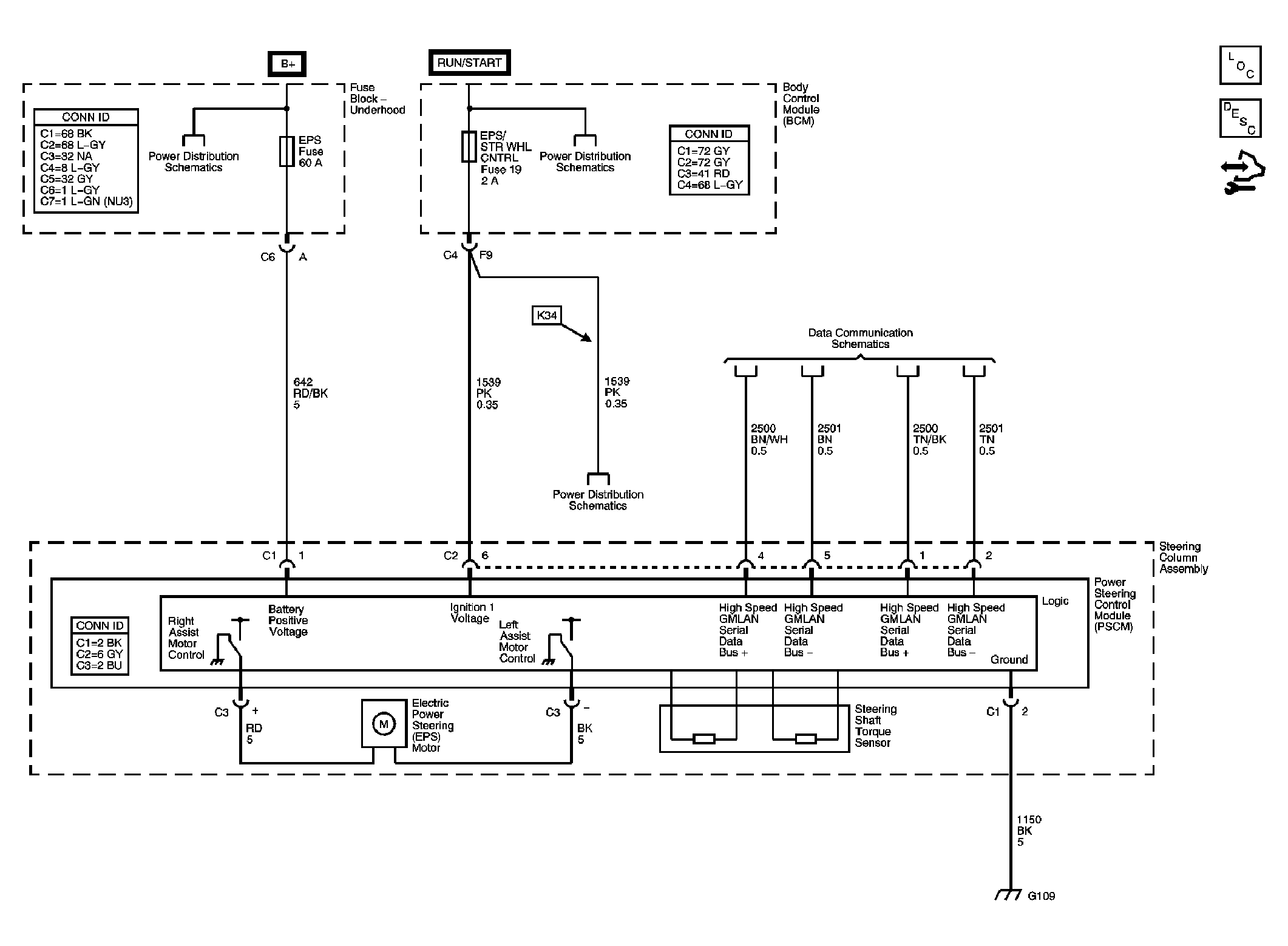

Fig 1: Power Steering Schematics
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
