Rear Window Defogger Grid (Convertible)

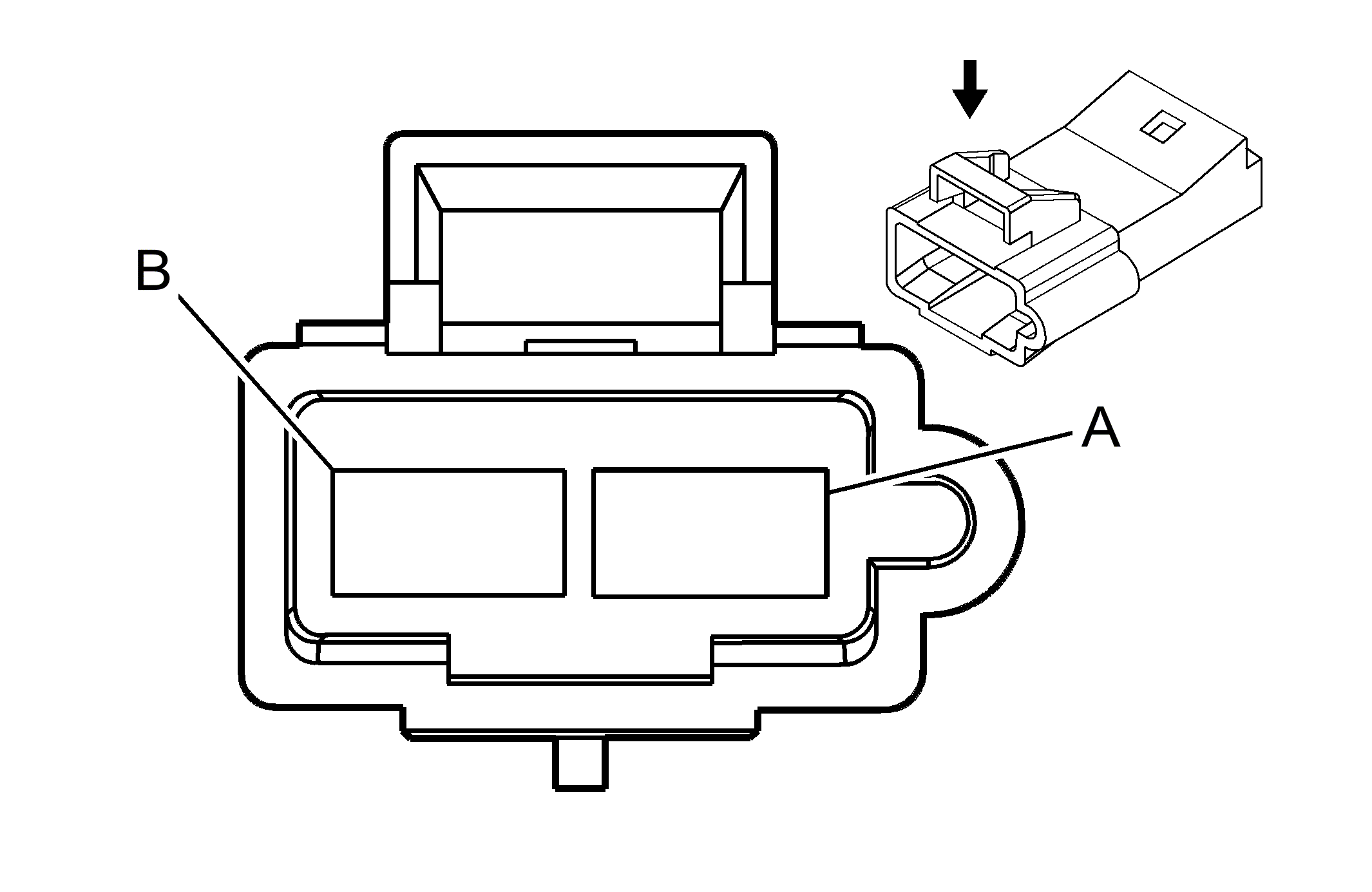

Fig 1: Rear Window Defogger Grid Connector End View (Convertible)
GM768090Courtesy of GENERAL MOTORS CORP.
Rear Window Defogger Grid Connector Part Information (Convertible)

Connector Part Information
  • OEM: 12129938
  • Service: 12129938
  • Description: 2-Way M Metri-Pack 630 Series (BK)
Terminal Part Information
  • Terminal/Tray: 12066493/3
  • Core/Insulation Crimp: F/G
  • Release Tool/Test Probe: 12094430/J-35616-42 (RD)
Rear Window Defogger Grid Connector Terminal Identification (Convertible)

Pin Wire Color Circuit No. Function
A PU 293 Rear Defog Element Supply Voltage
B BK 1350 Ground
