Quarter Window Regulator Replacement

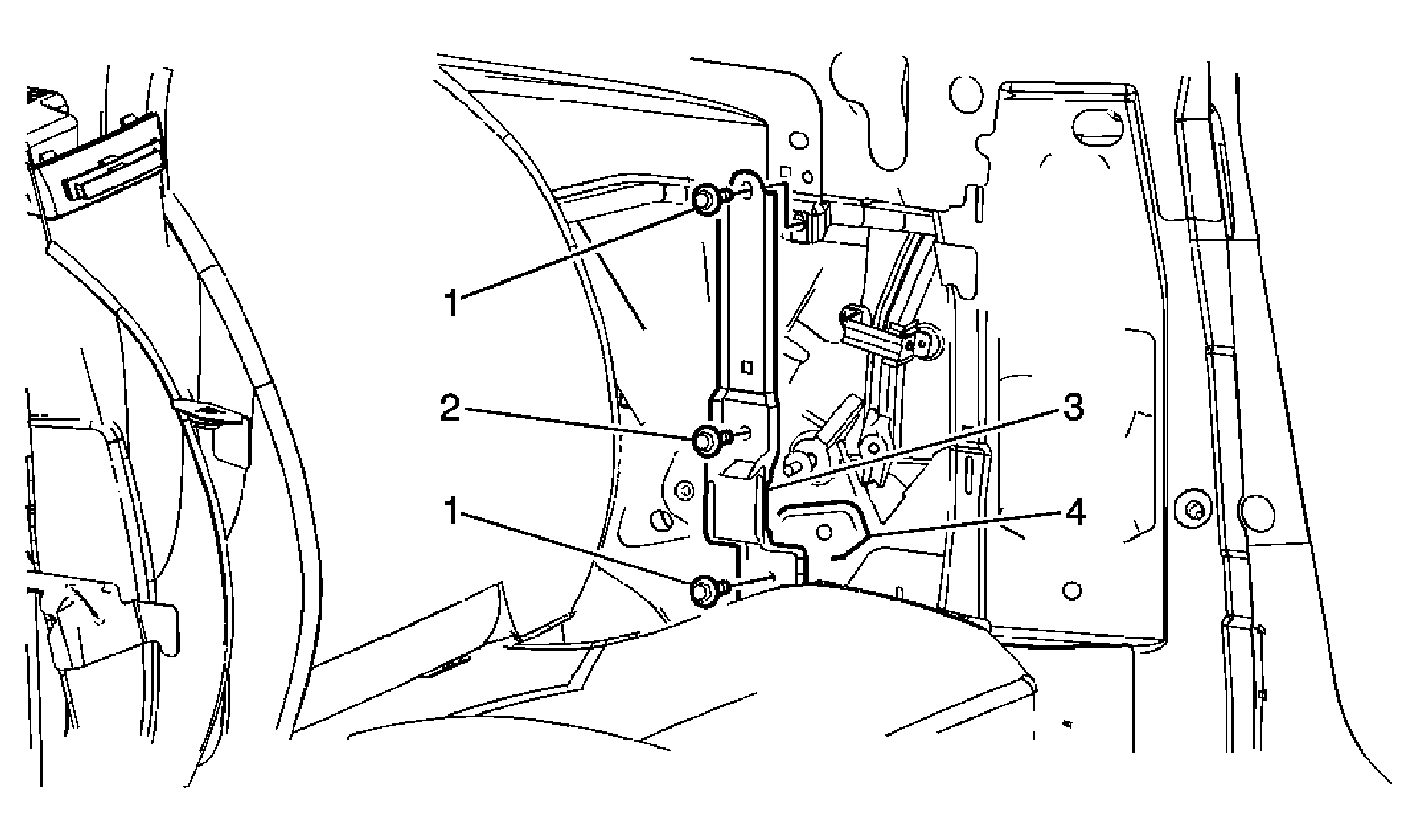

Fig 1: Identifying Quarter Window Regulator Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the seat cushion. Refer to Rear Seat Cushion Replacement (Convertible) or Rear Seat Cushion Replacement (Coupe) or Rear Seat Cushion Replacement (Sedan) . Remove the seat back. Refer to Rear Seat Back Replacement (Convertible) or Rear Seat Back Replacement (Sedan/Coupe) . Remove the body lock pillar trim panel. Refer to Quarter Window Replacement (Coupe) or Quarter Window Replacement (Convertible) . Remove the quarter glass window. Refer to Body Lock Pillar Lower Trim Panel Replacement (Convertible) or Body Lock Pillar Lower Trim Panel Replacement (Coupe) or Body Lock Pillar Lower Trim Panel Replacement (Sedan) .
1	Quarter Window Regulator Bolt (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 10 N.m (89 lb in)
2	Quarter Window Regulator Nut Tighten: 10 N.m (89 lb in)
3	Quarter Window Regulator Bracket
4	Quarter Glass Regulator Procedure: Adjust the quarter window. Refer to Front Side Door Window and Quarter Window Adjustment . Tip: Disconnect the electrical connector.
