Power Outlet Component Views

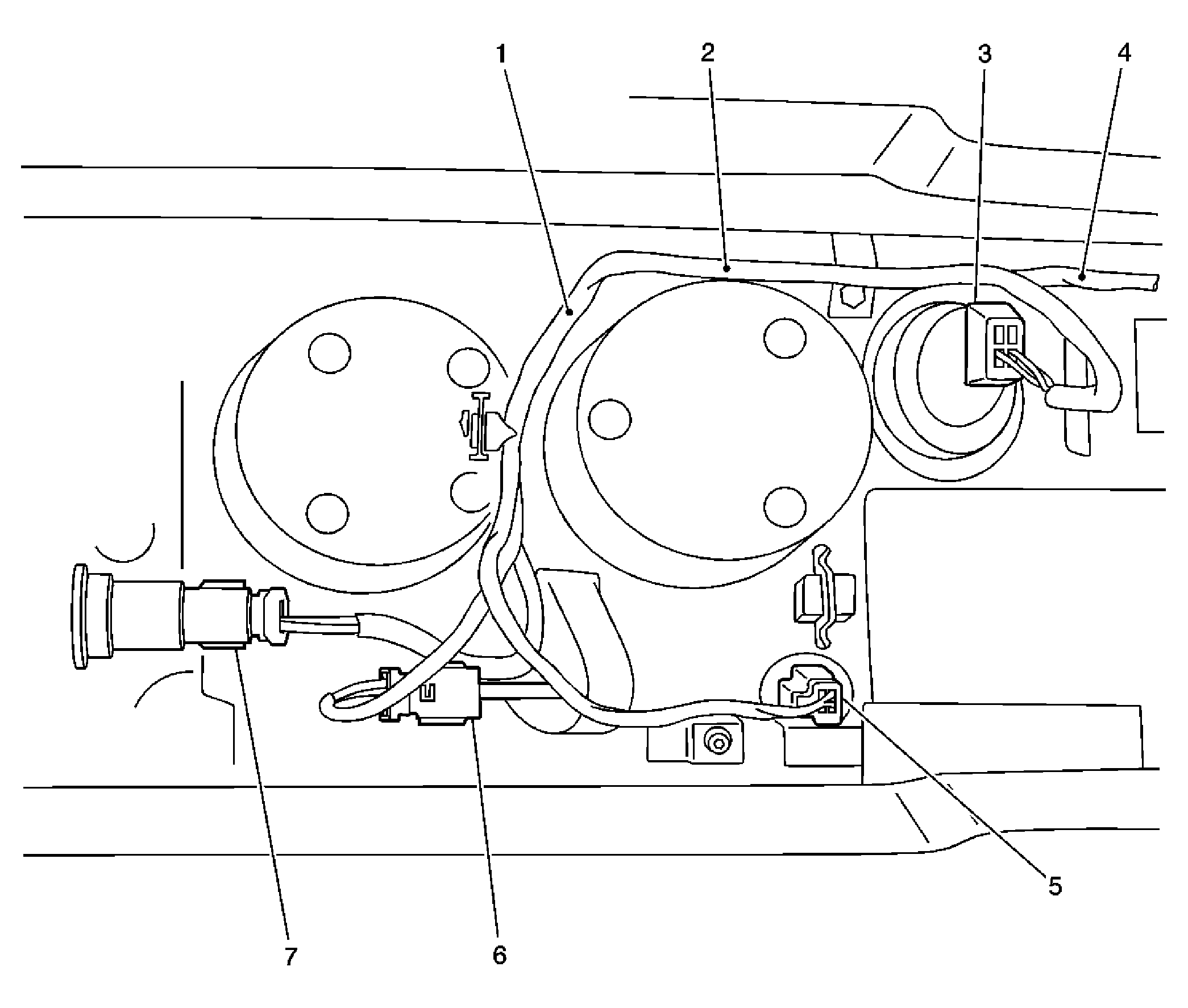

Fig 1: Under the Floor Console Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	S238
2	S231
3	Head Up Display (HUD) Switch
4	S374
5	Traction Control Switch
6	Accessory Power Outlet - Front
7	Accessory Power Outlet - Rear
