Backup Lamp Bulb Replacement

WARNING: This page is about a different car, the 2007 Buick LaCrosse and 2007 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

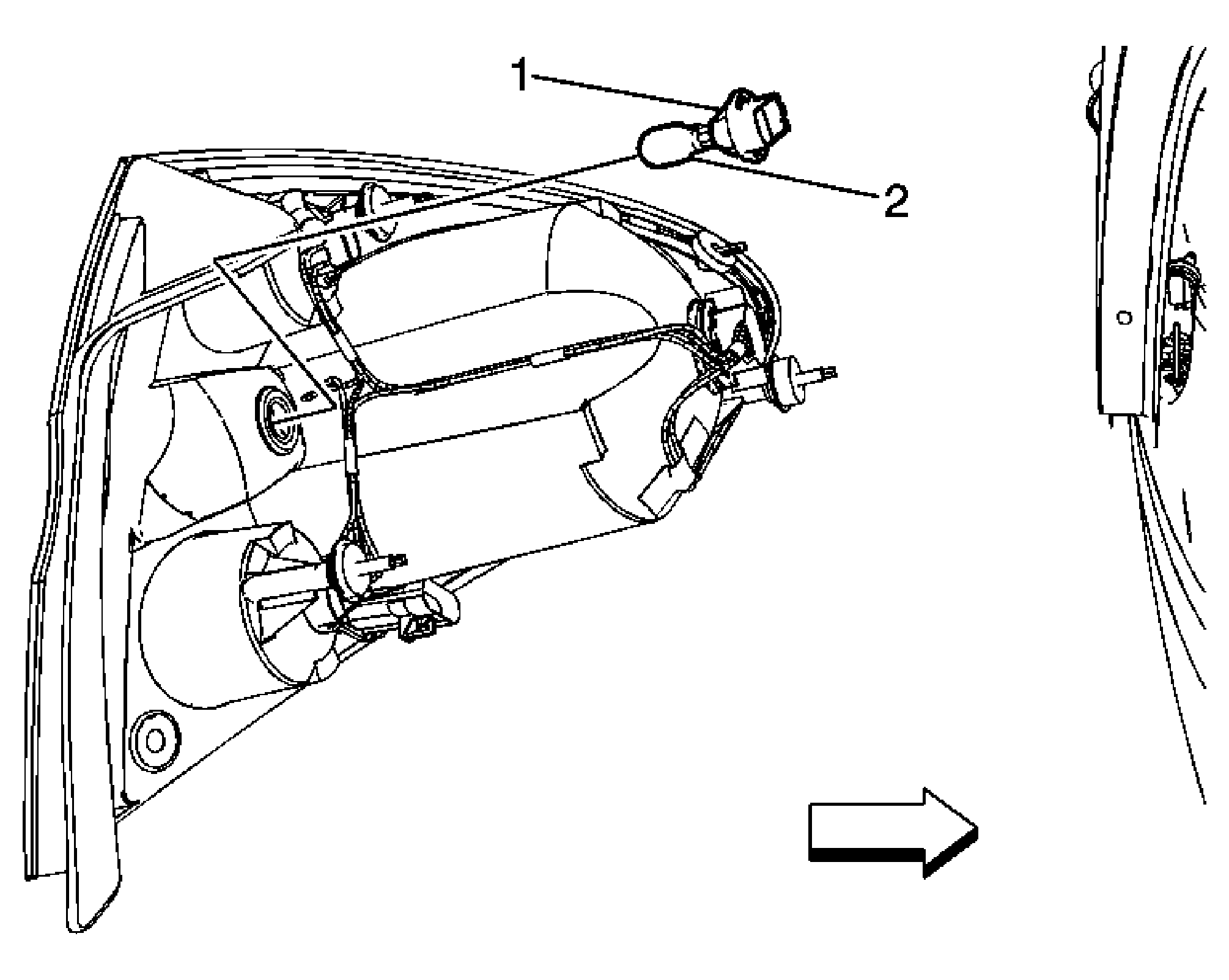

Fig 1: Backup Lamp Bulb

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove either the LR or RR tail lamp assembly. Refer to Tail Lamp Replacement .
1	Reverse Lamp Socket Tip: Turn the lamp socket a quarter turn counter-clockwise and remove it from the lamp assembly.
2	CAUTION: Refer to Halogen Bulb Caution . Reverse Lamp Bulb
