Fuel Injector 1 Connector End View

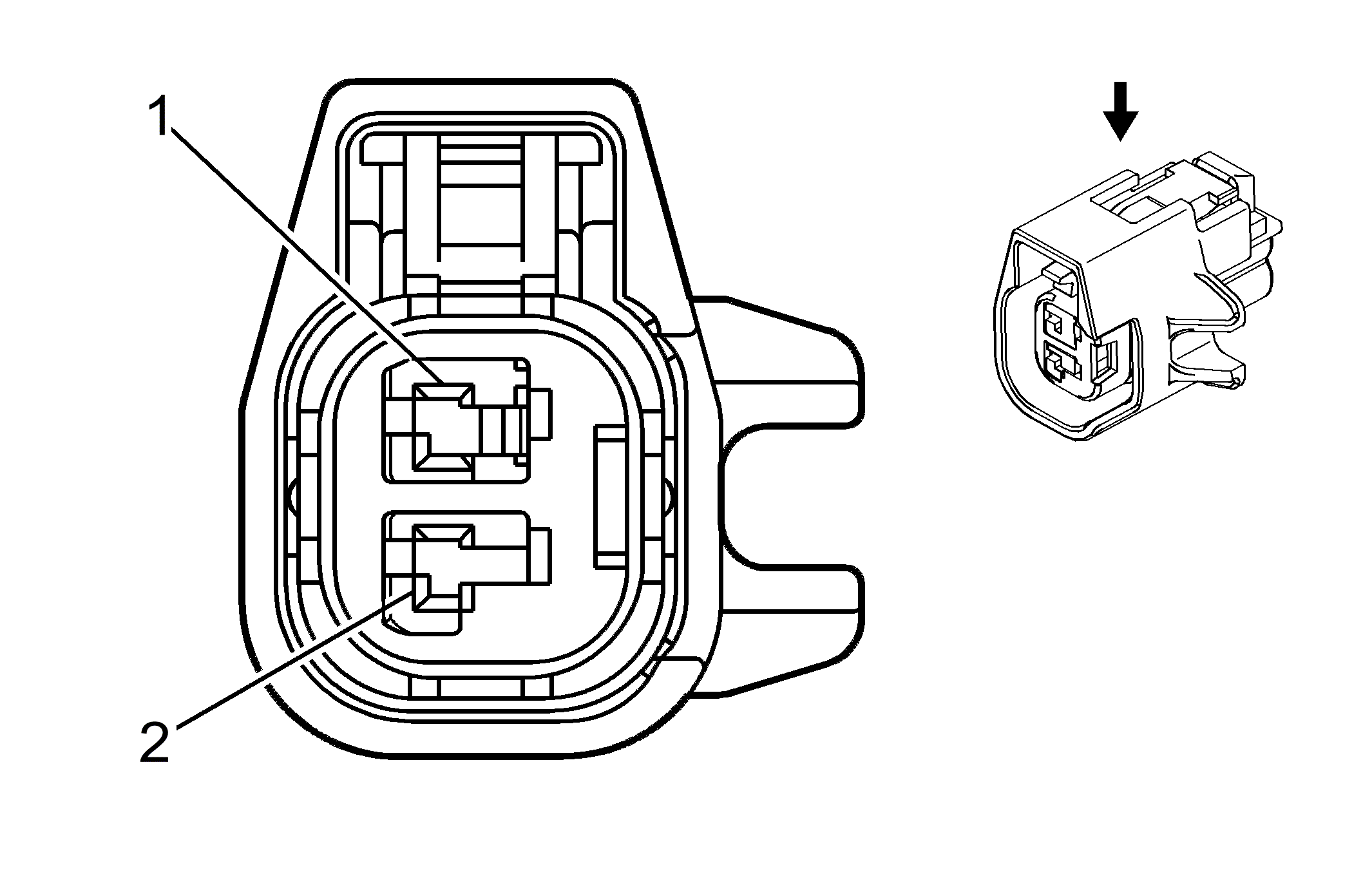

Fig 1: Fuel Injector 1 Connector End View
GM1721512Courtesy of GENERAL MOTORS CORP.
Fuel Injector 1 Connector Part Information

Connector Part Information
  • OEM: 7283-8596-30
  • Service: 15306160
  • Description: 2-Way F (BK)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
Fuel Injector 1 Connector Terminal Identification

Pin Wire Color Circuit No. Function
1 PK 139 Ignition 1 Voltage
2 BK 1744 Fuel Injector 1 Control


Fig 1: Fuel Injector 1 Connector End View
GM784092Courtesy of GENERAL MOTORS CORP.
Fuel Injector 1 Connector Part Information

Connector Part Information
  • OEM: 1 928 403 874
  • Service: See Catalog
  • Description: 2-Way F Kompakt 2.8 Series Sealed (BK)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
Fuel Injector 1 Connector Terminal Identification

Pin Wire Color Circuit No. Function
1 BN 4801 Direct Fuel Injector (DFI) High Voltage Control Cylinder 1
2 BN/WH 4901 Direct Fuel Injector (DFI) High Voltage Supply Cylinder 1
