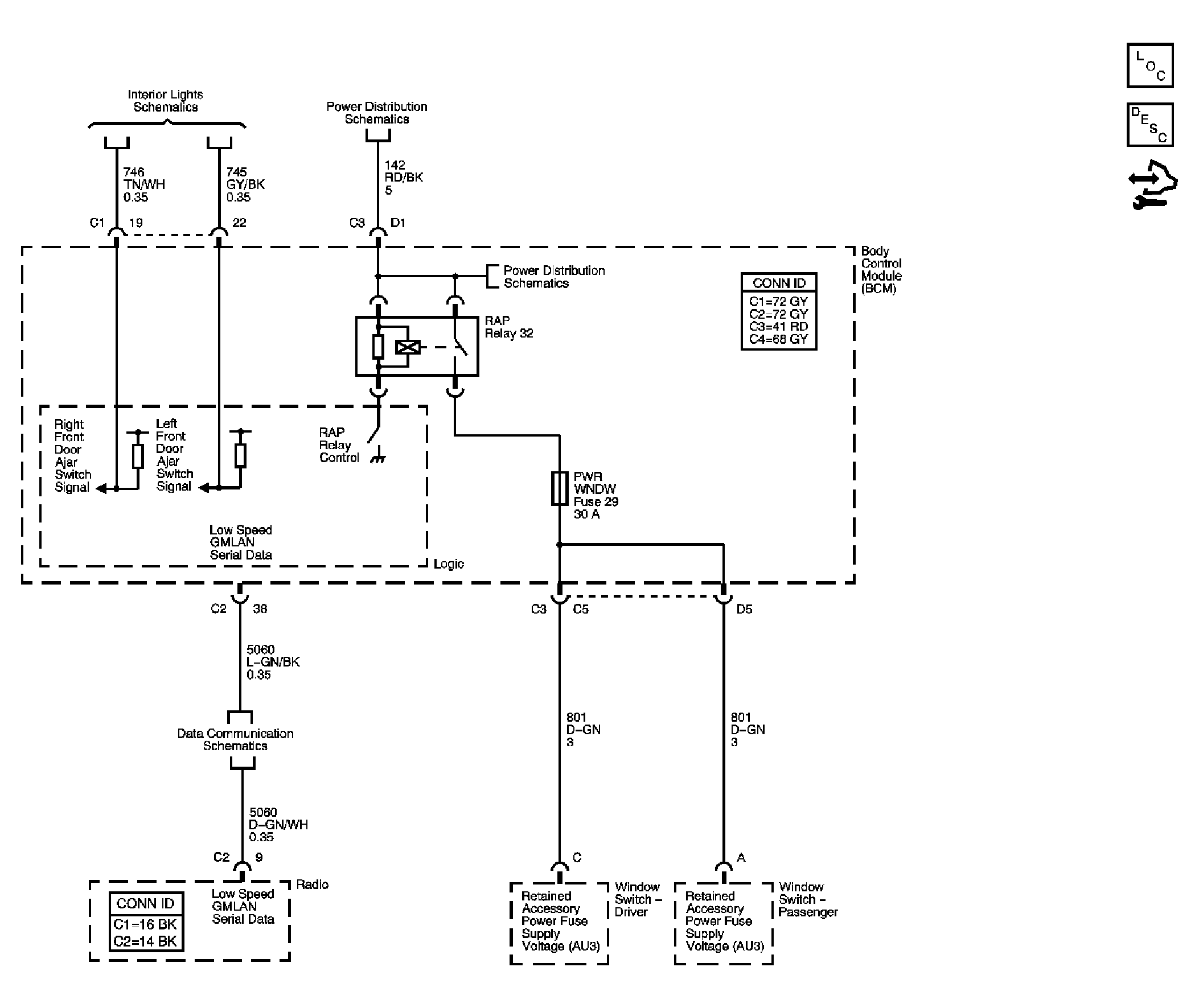

Home › Pontiac › 2007 › Solstice Base, Automatic › Repair and Diagnosis › Electrical › Component Locations › Wiring Systems & Power Management › Schematic and Routing Diagrams › Power Moding Schematics
