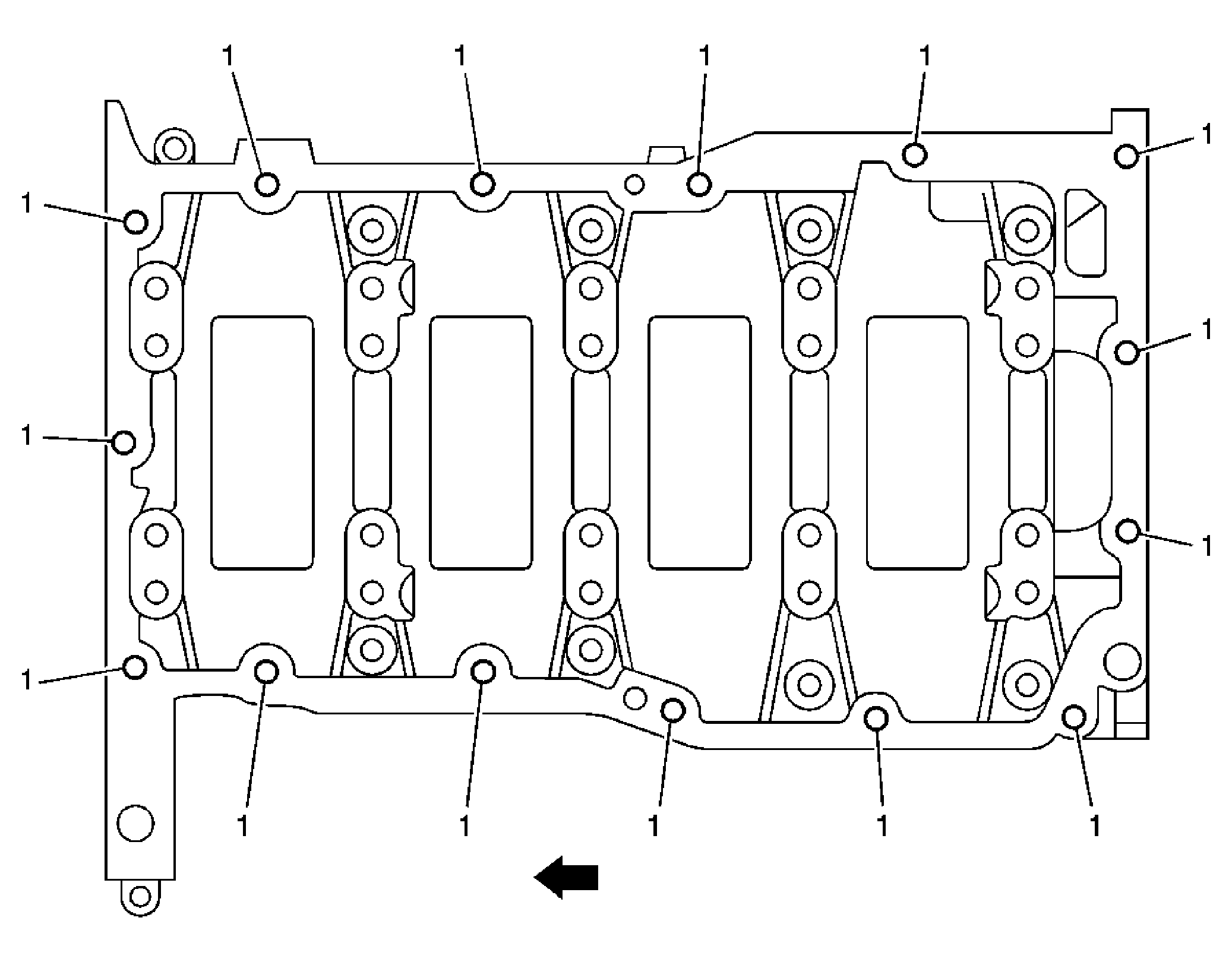

Lower Crankcase - Bottom View
Courtesy of GENERAL MOTORS CORP. Lower Crankcase - Bottom View
| Service Call Out |
Thread Size |
Insert |
Drill |
Counterbore Tool |
Tap |
Driver |
Drill Depth (Maximum) |
Tap Depth (Maximum) |
| J 42385-850 |
MM |
(IN) |
MM |
(IN) |
| 1 |
M8 x 1.25 |
210 |
206 |
207 |
208 |
209 |
23.5 |
0.925 |
18.5 |
0.73 |
