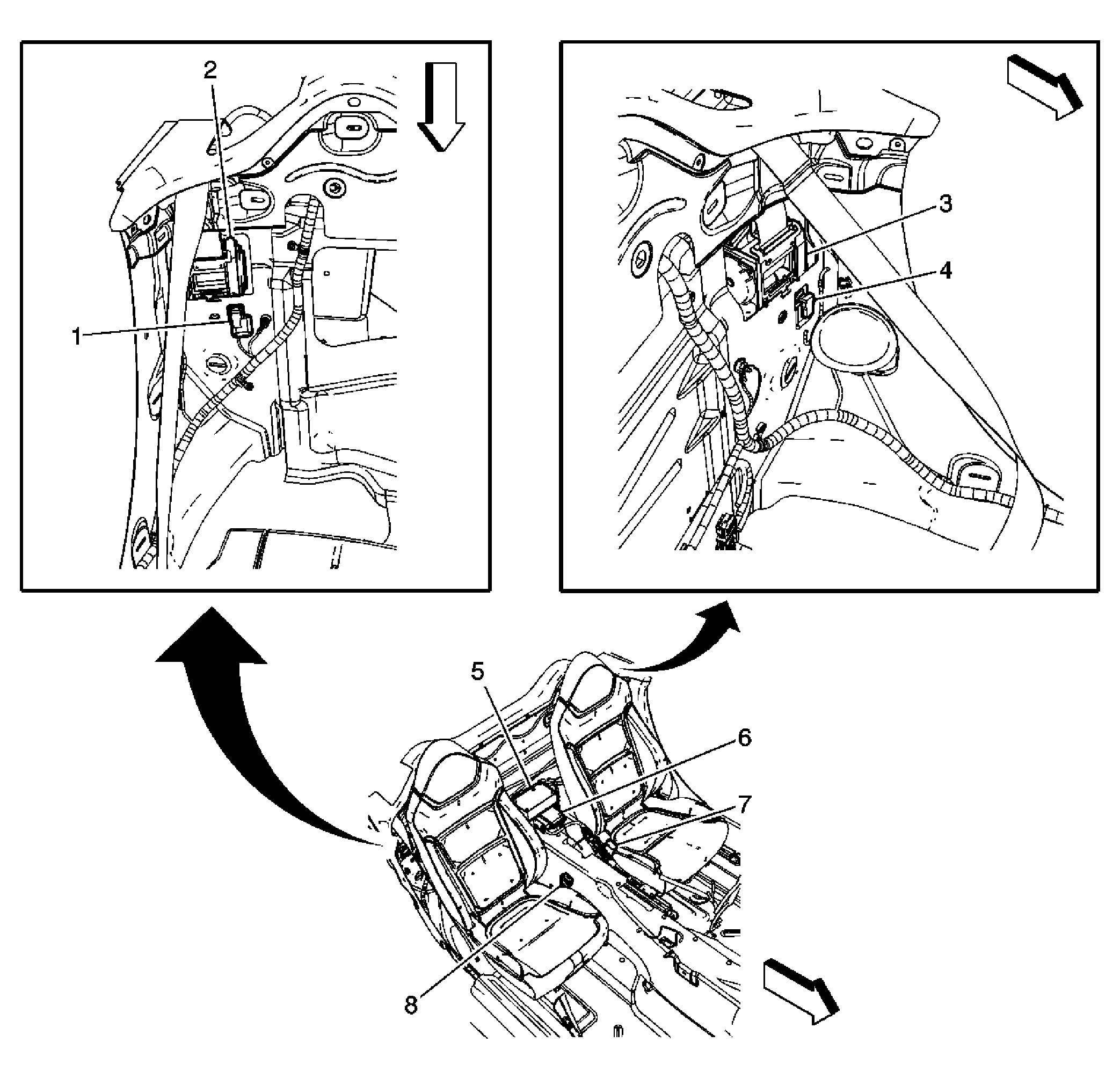

Seat Belt Component Views
Callouts For Fig 1
| Callout | Component Name |
|---|---|
| 1 | Seat Belt Pretensioner - Right Connector |
| 2 | Seat Belt Pretensioner - Right |
| 3 | Seat Belt Pretensioner - Left |
| 4 | Seat Belt Pretensioner - Left Connector |
| 5 | Vehicle Communication Interface Module (VCIM) |
| 6 | Inflatable Restraint Sensing and Diagnostic Module (SDM) |
| 7 | Seat Belt Switch - Driver |
| 8 | Seat Belt Switch - Passenger |
