Upper Control Arm Replacement
Upper Control Arm Replacement

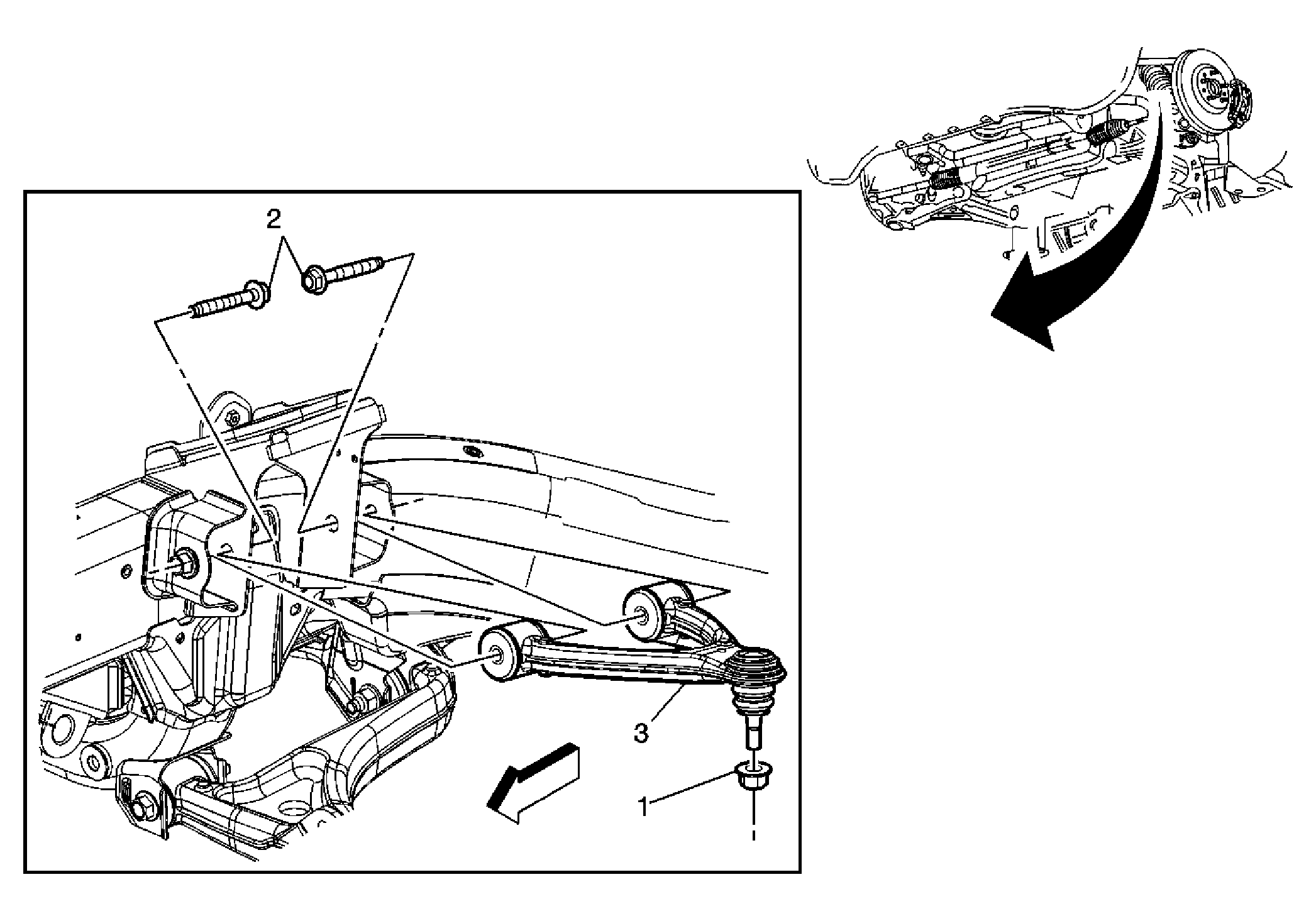

| Callout | Component Name |
|---|---|
|
NOTE:
The ball stud must not rotate during disassembly or reassembly. Hand tools must be used to keep the ball stud from rotating. If air tools are used and the stud is allowed to rotate, damage to the ball stud and/or stud mounting hole may occur. Preliminary Procedures: Remove the shock module. Refer to Shock Module Replacement . |
|
| 1 | Upper Ball Joint Nut
NOTE:
Refer to Fastener Notice
. Tip: Loosen but DO NOT remove the nut until the ball stud has been separated from the knuckle. Tighten: 30 N.m (22 lb ft) ± 150° |
| 2 | Upper Control Arm Mounting Bolts (Qty: 2) Tighten: 110 N.m (81 lb ft) |
| 3 | Upper Control Arm Tip:
|
