Ground Distribution Schematics

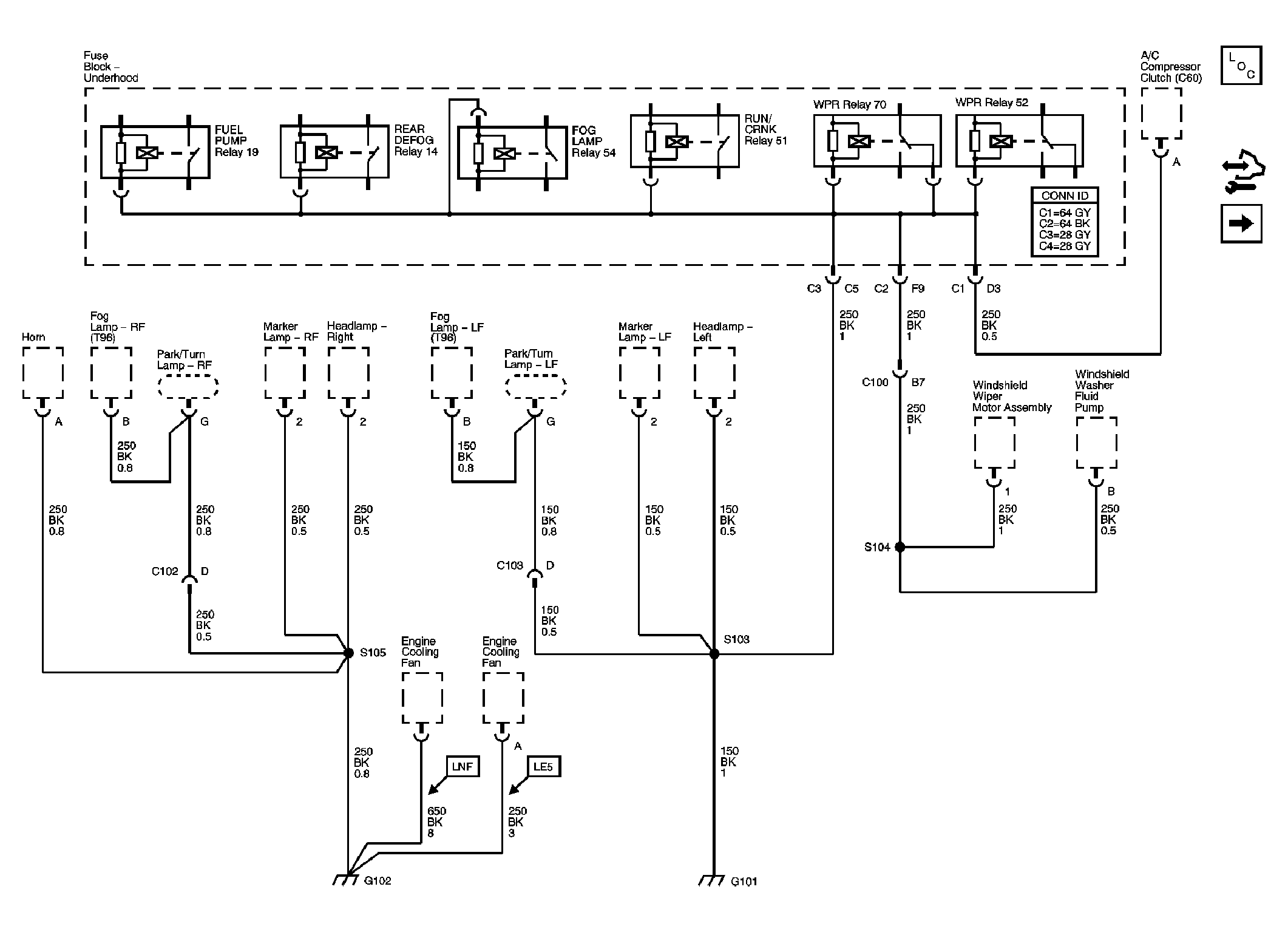

Fig 1: Ground Distribution Schematic (G101 & G102)

Courtesy of GENERAL MOTORS CORP.

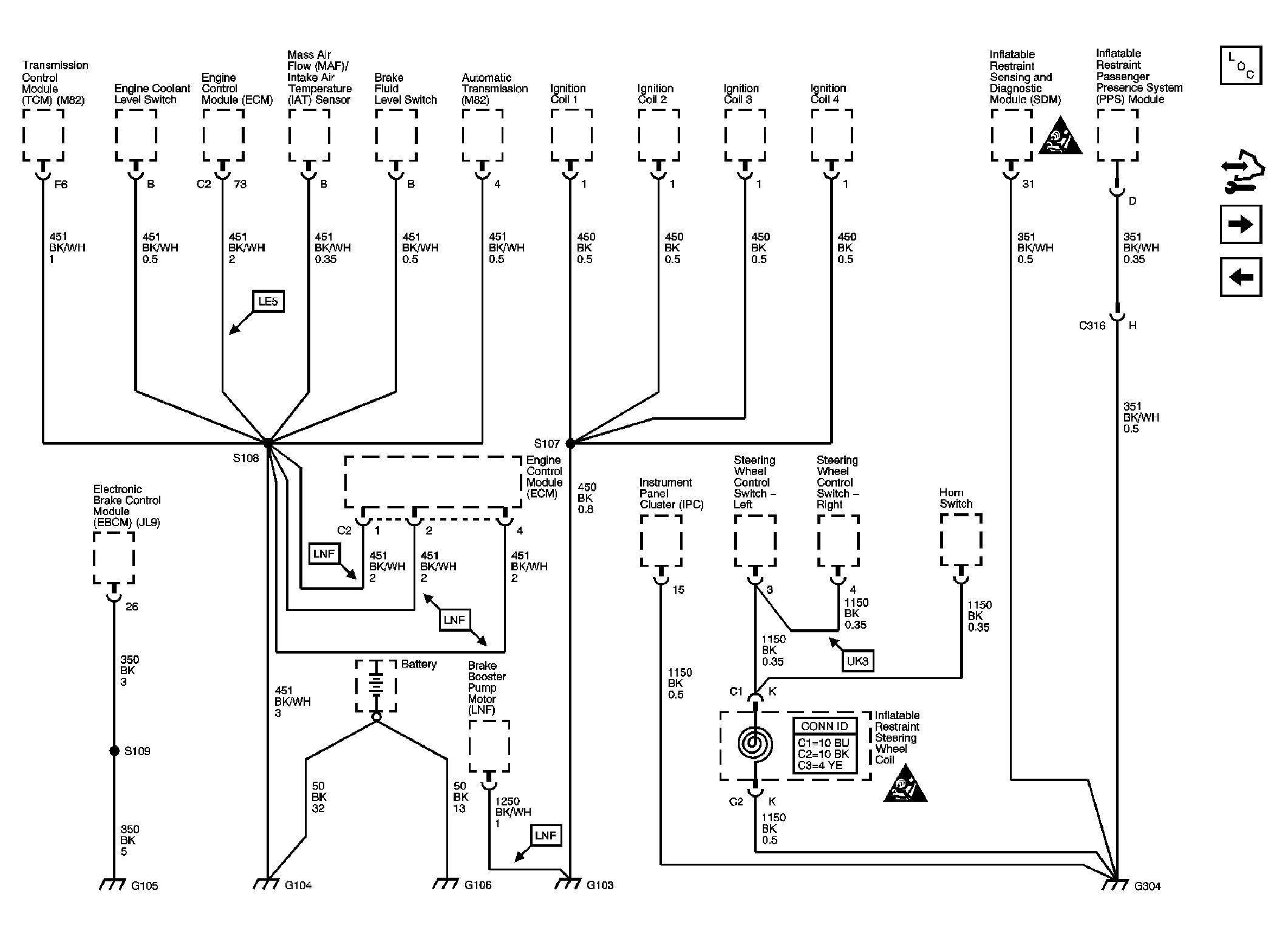

Fig 2: Ground Distribution Schematic (G103, G204, G105, G104, & G106)

Courtesy of GENERAL MOTORS CORP.

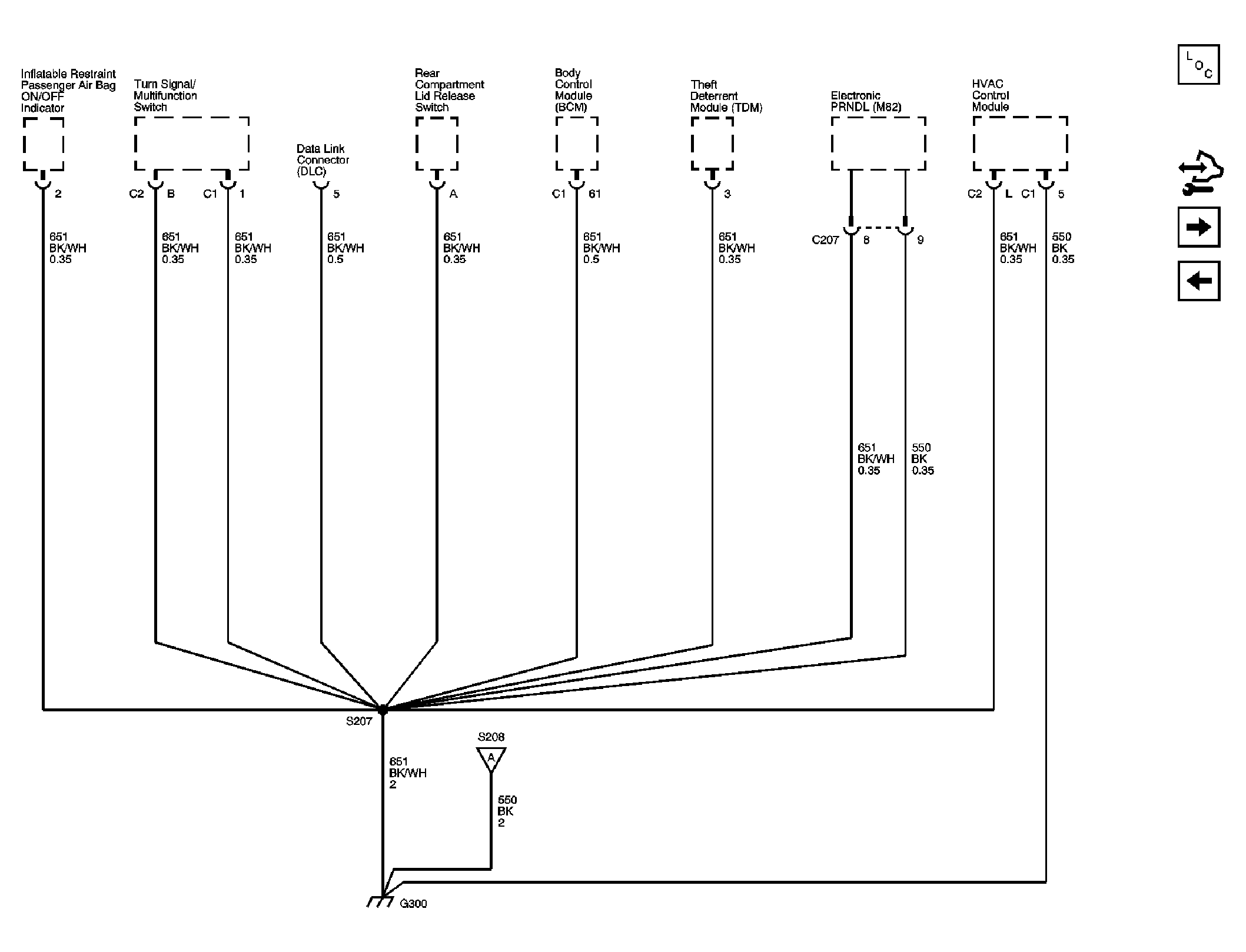

Fig 3: Ground Distribution Schematic (G201 - 1 of 2)

Courtesy of GENERAL MOTORS CORP.

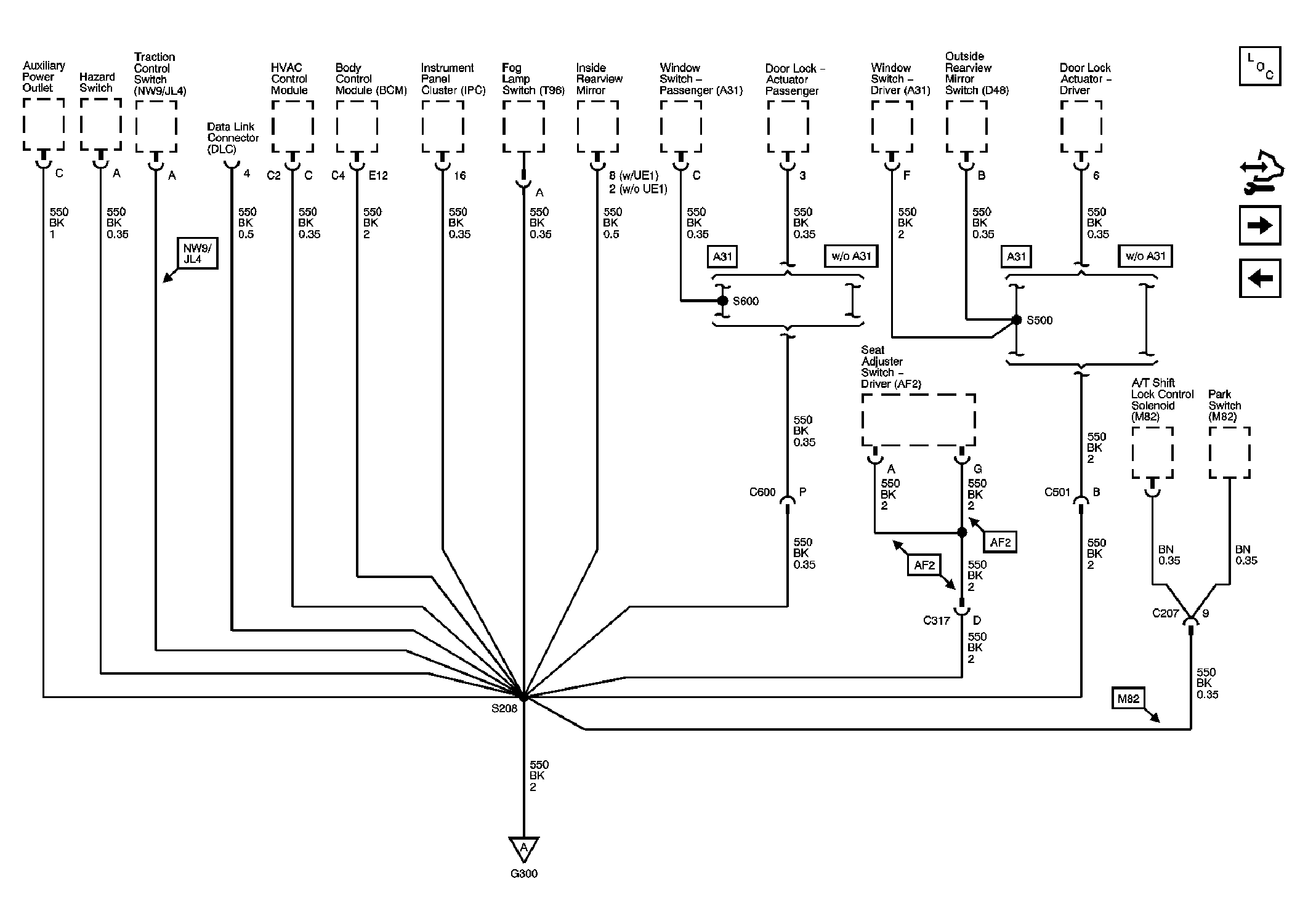

Fig 4: Ground Distribution Schematic (G201 - 2 of 2)

Courtesy of GENERAL MOTORS CORP.

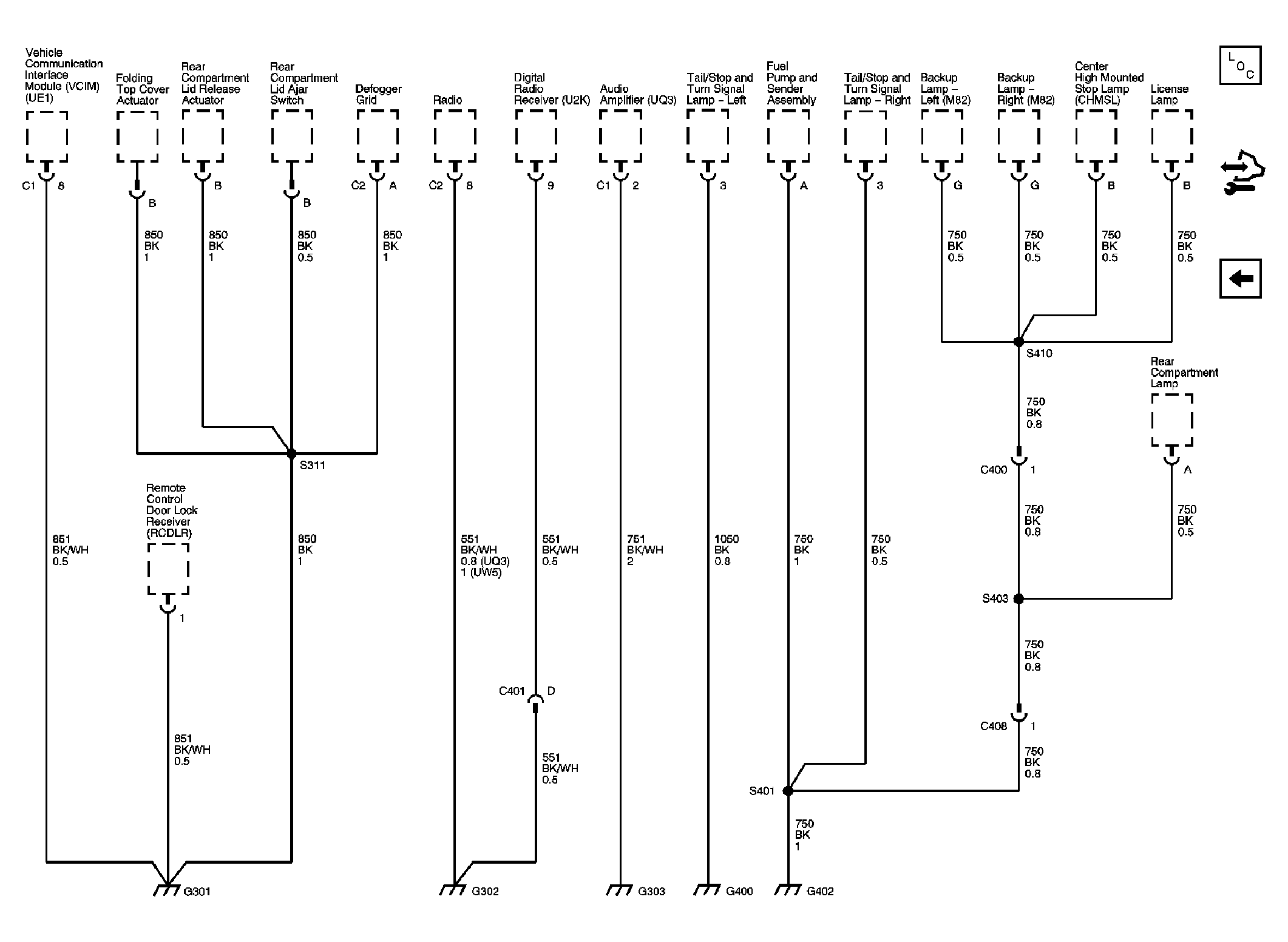

Fig 5: Ground Distribution Schematic (G301, G102, G303, & G402)

Courtesy of GENERAL MOTORS CORP.
