Moveable Window Schematics
Moveable Window Schematics

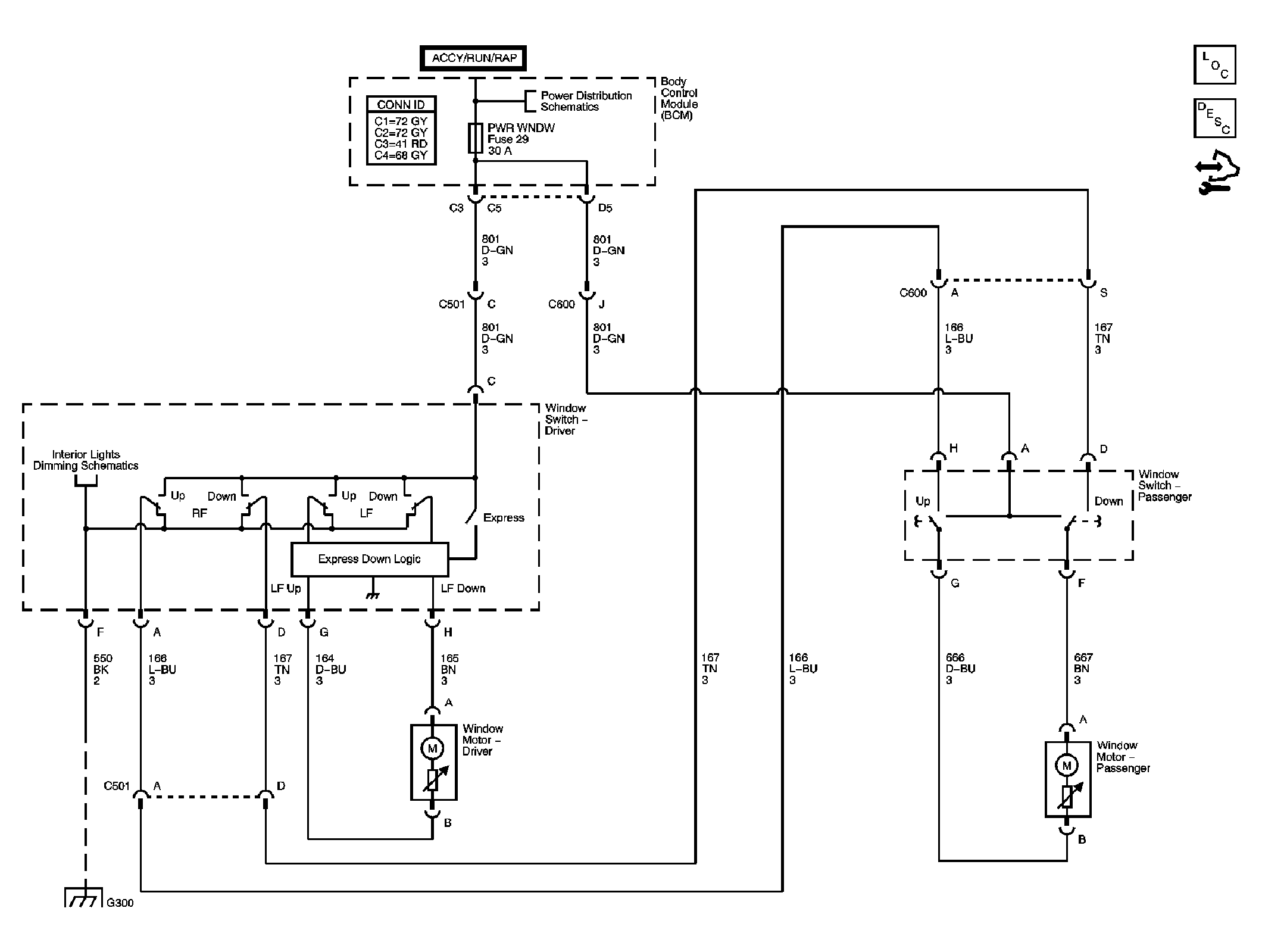

Fig 1: Moveable Window Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
