Antilock Brake System Schematics

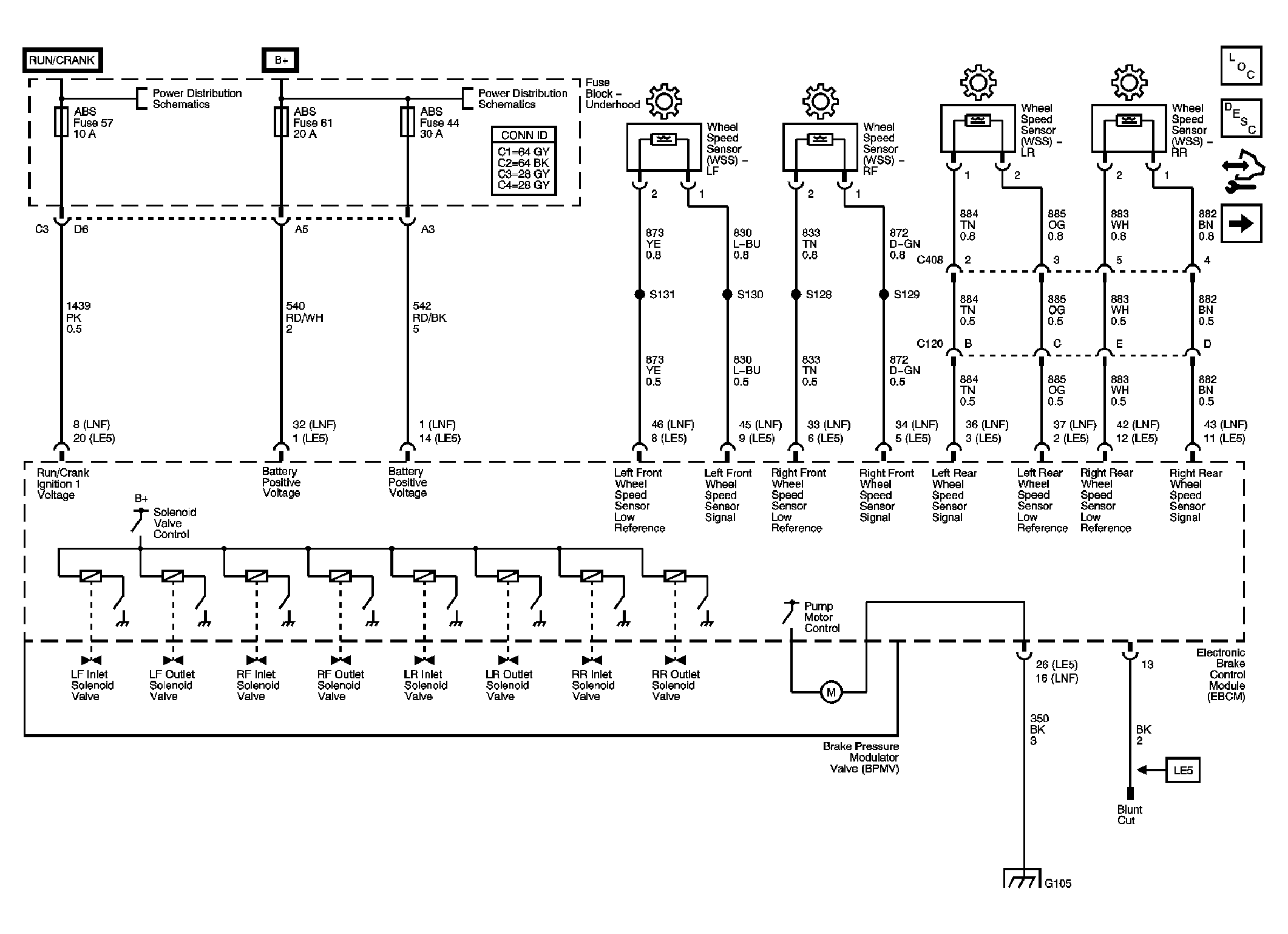

Fig 1: Power, Ground and Wheel Speed Sensors

Courtesy of GENERAL MOTORS CORP.

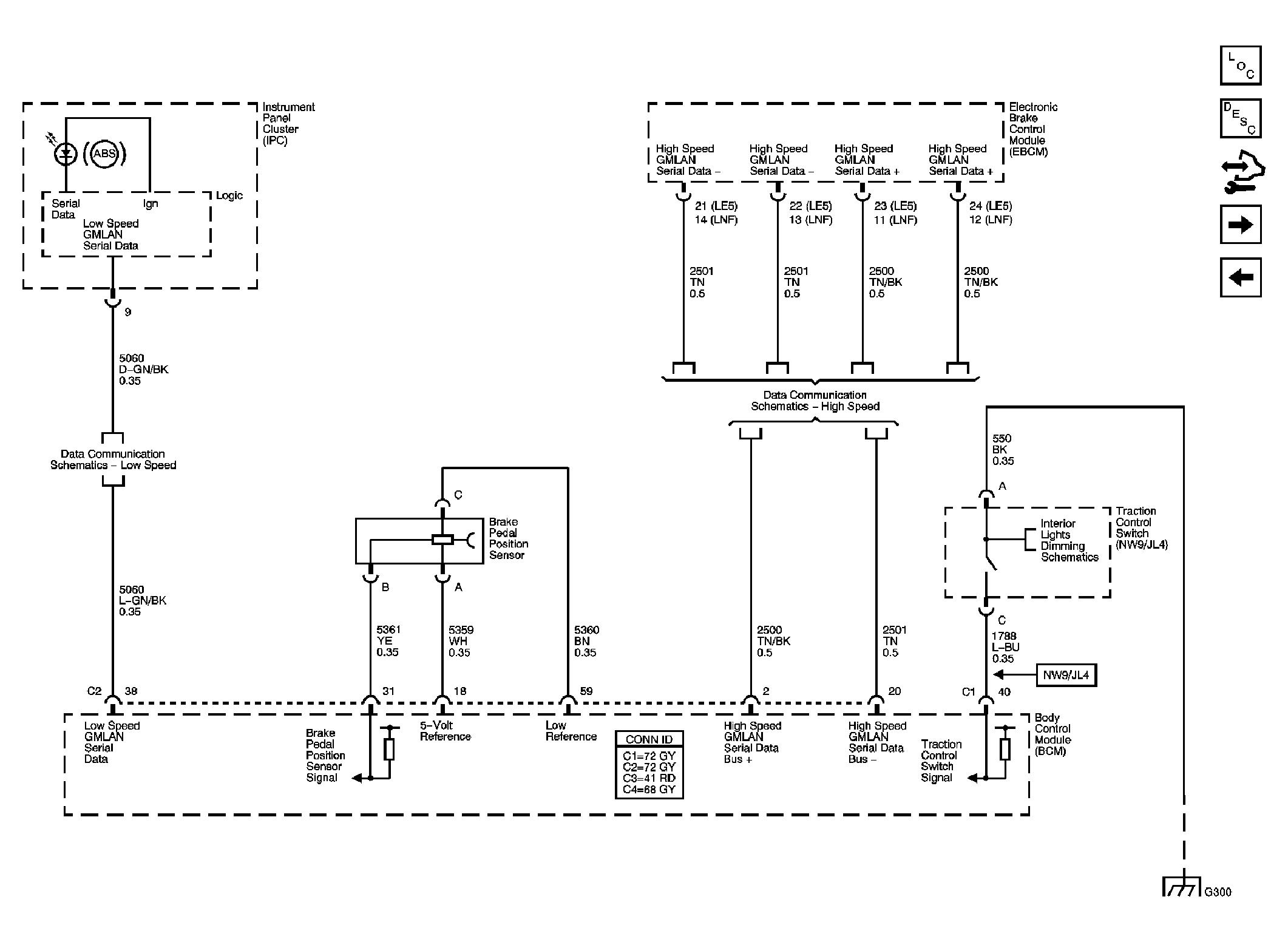

Fig 2: Brake Pedal Sensor, Indicator, and Traction Control Switch

Courtesy of GENERAL MOTORS CORP.

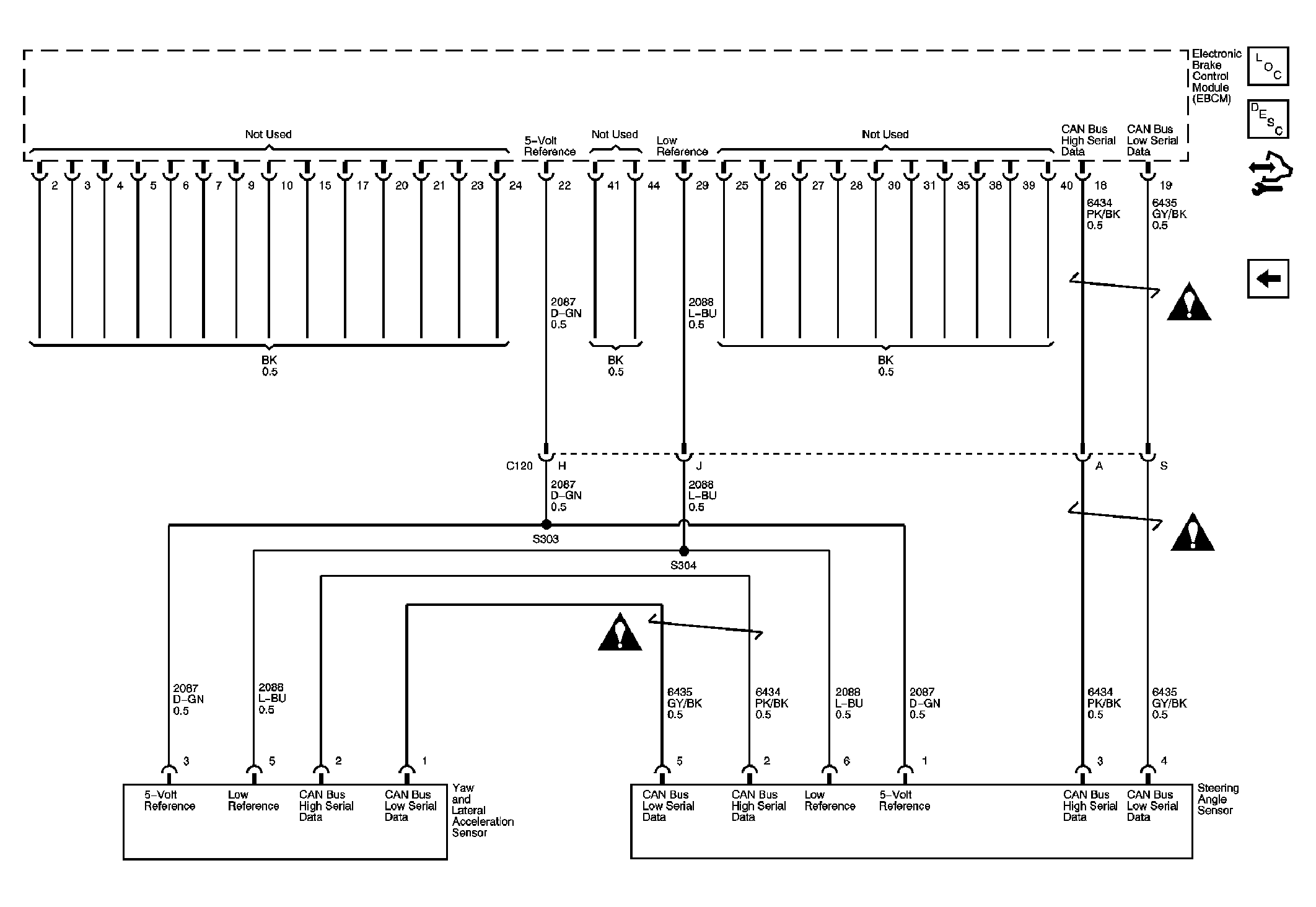

Fig 3: Stability Control Sensors (JL4)

Courtesy of GENERAL MOTORS CORP.
