Front Seat Belt Buckle Replacement
Front Seat Belt Buckle Replacement

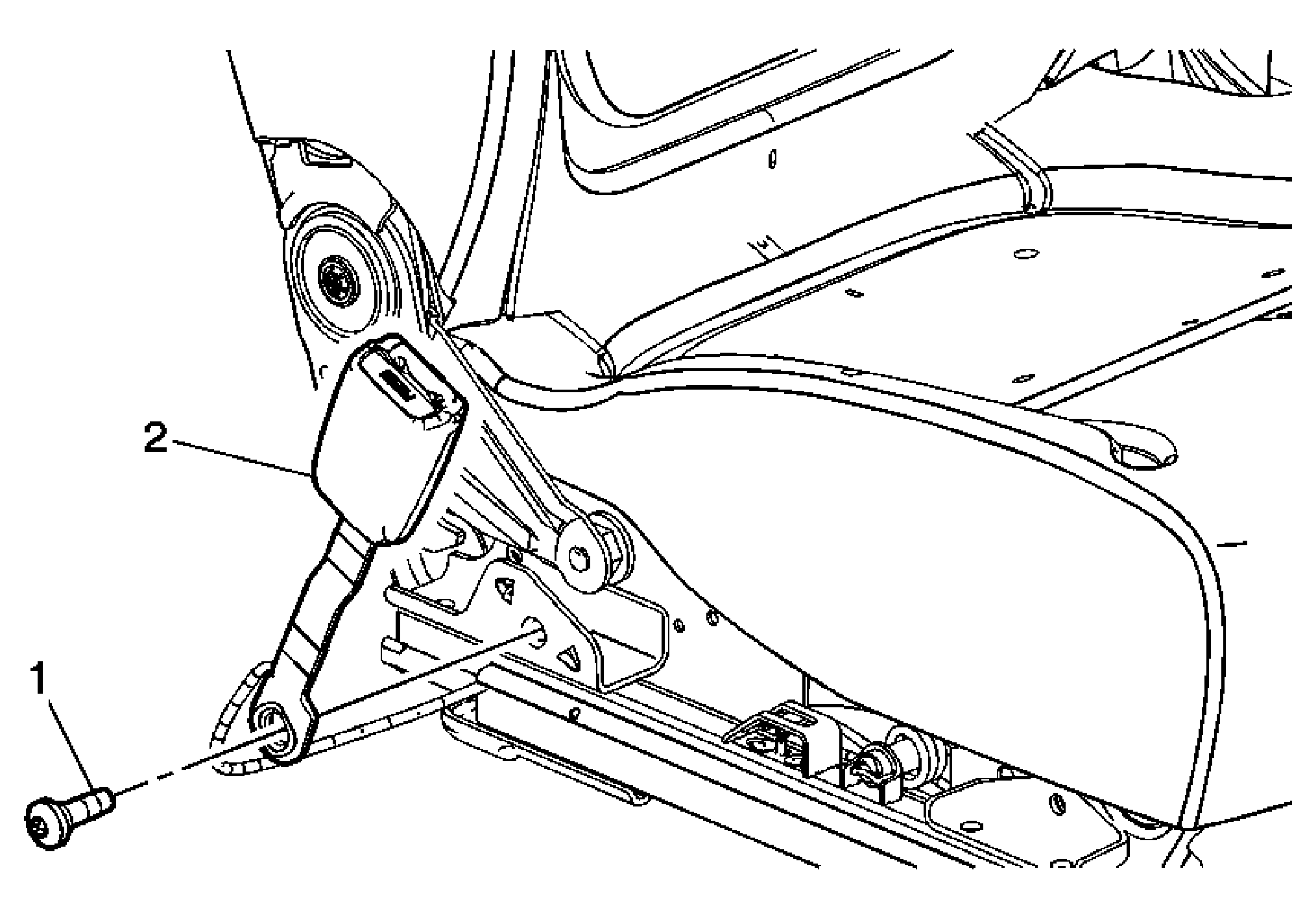

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the front seat. Refer to Seat Replacement
. |
|
| 1 | Bolt, Seat Belt Buckle Tighten: 45 N.m (33 lb ft) |
| 2 | Belt, Seat Buckle Assembly |
