Body Control System Schematics

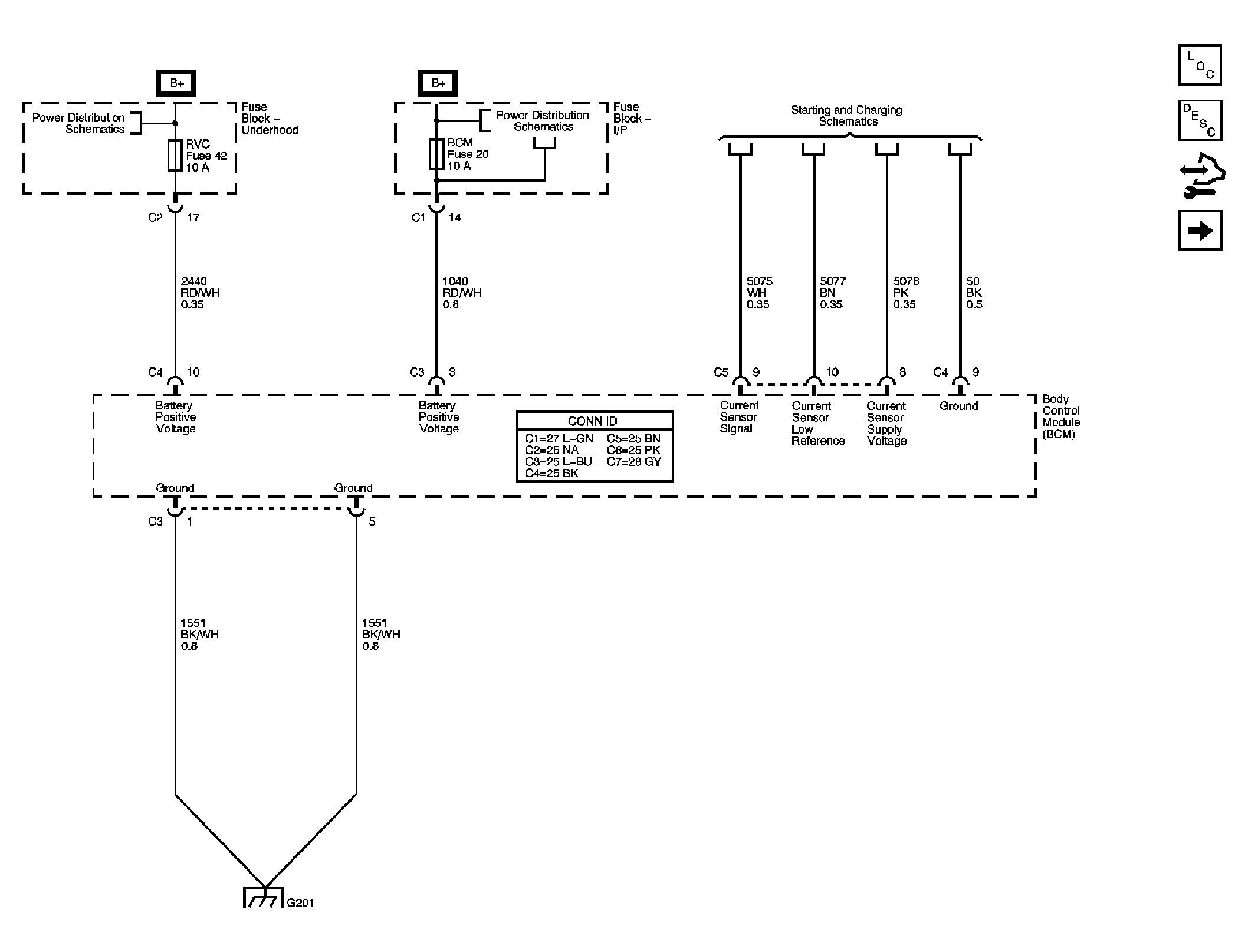

Fig 1: Power and Ground, Starting & Charging Schematic

Courtesy of GENERAL MOTORS CORP.

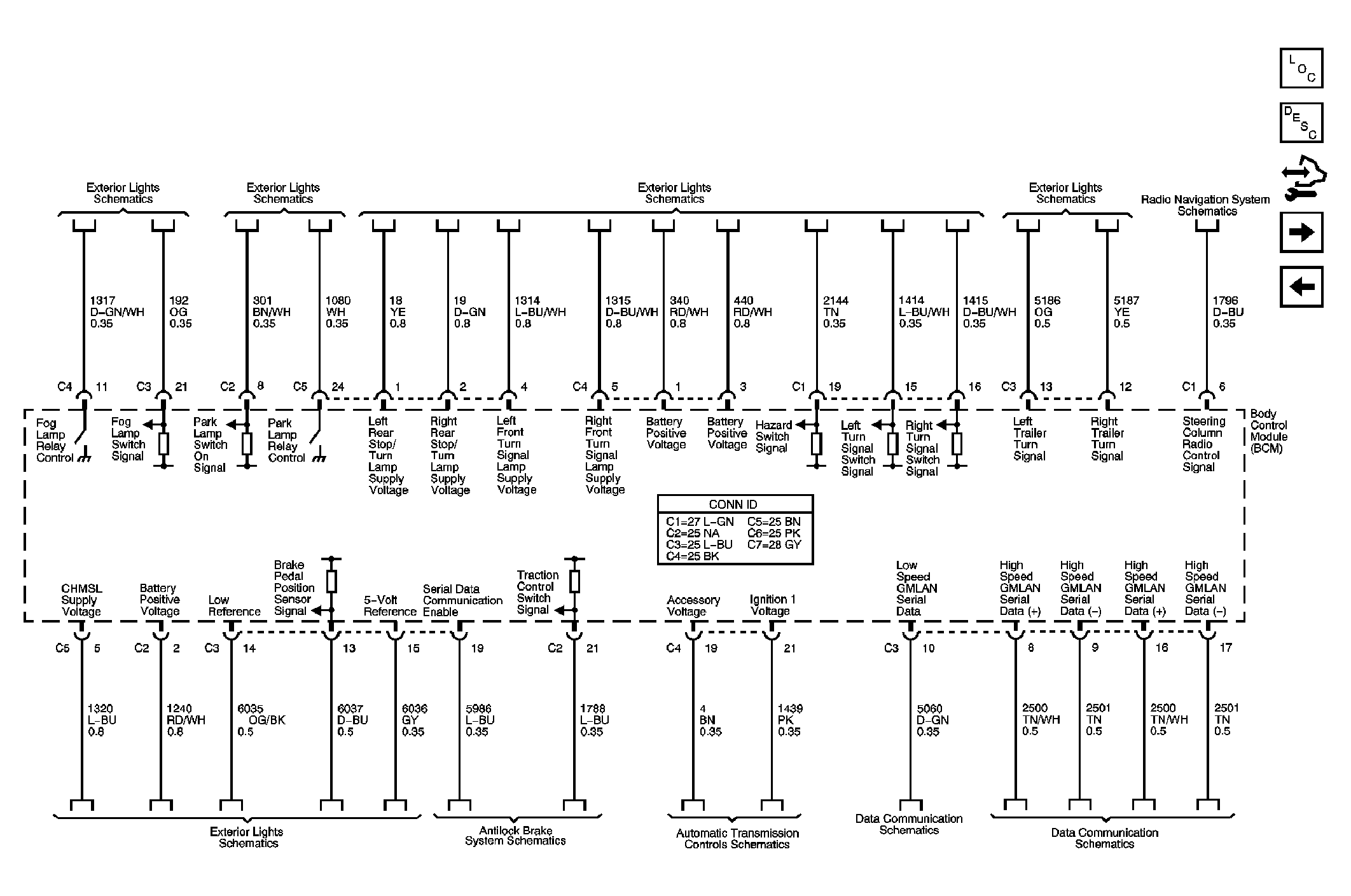

Fig 2: Exterior Lights, Radio, Data Communications, ABS & Automatic Transmission Schematic

Courtesy of GENERAL MOTORS CORP.

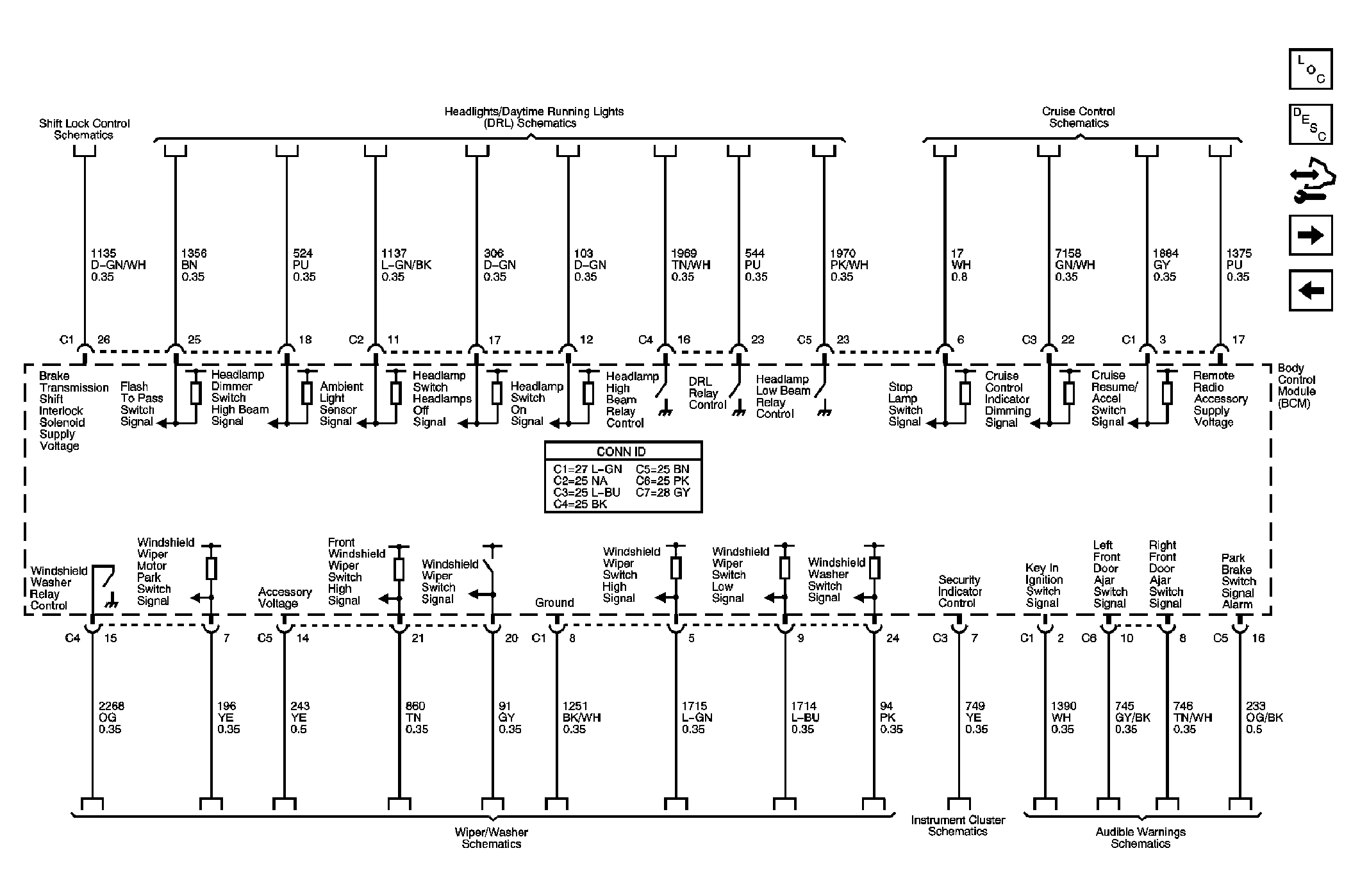

Fig 3: Shift Lock, Headlights, Cruise, Wiper & I/P Schematic

Courtesy of GENERAL MOTORS CORP.

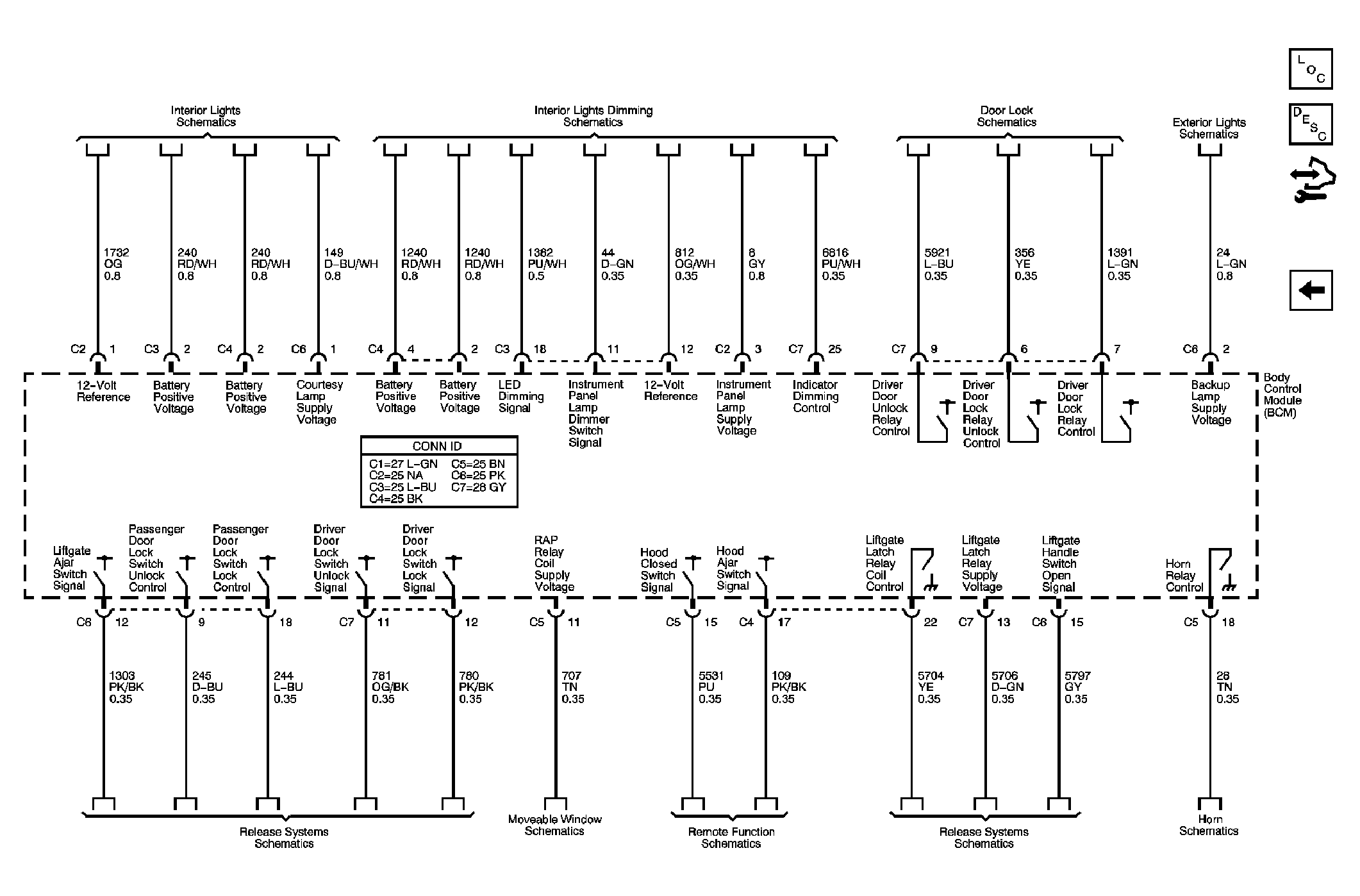

Fig 4: Interior Lights, Door Locks, Exterior Lights, Release Systems, Movable Windows & Horns Schematic

Courtesy of GENERAL MOTORS CORP.
