Wiper/Washer System Component Views

WARNING: This page is about a different car, the 2006 Pontiac Torrent and 2006 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

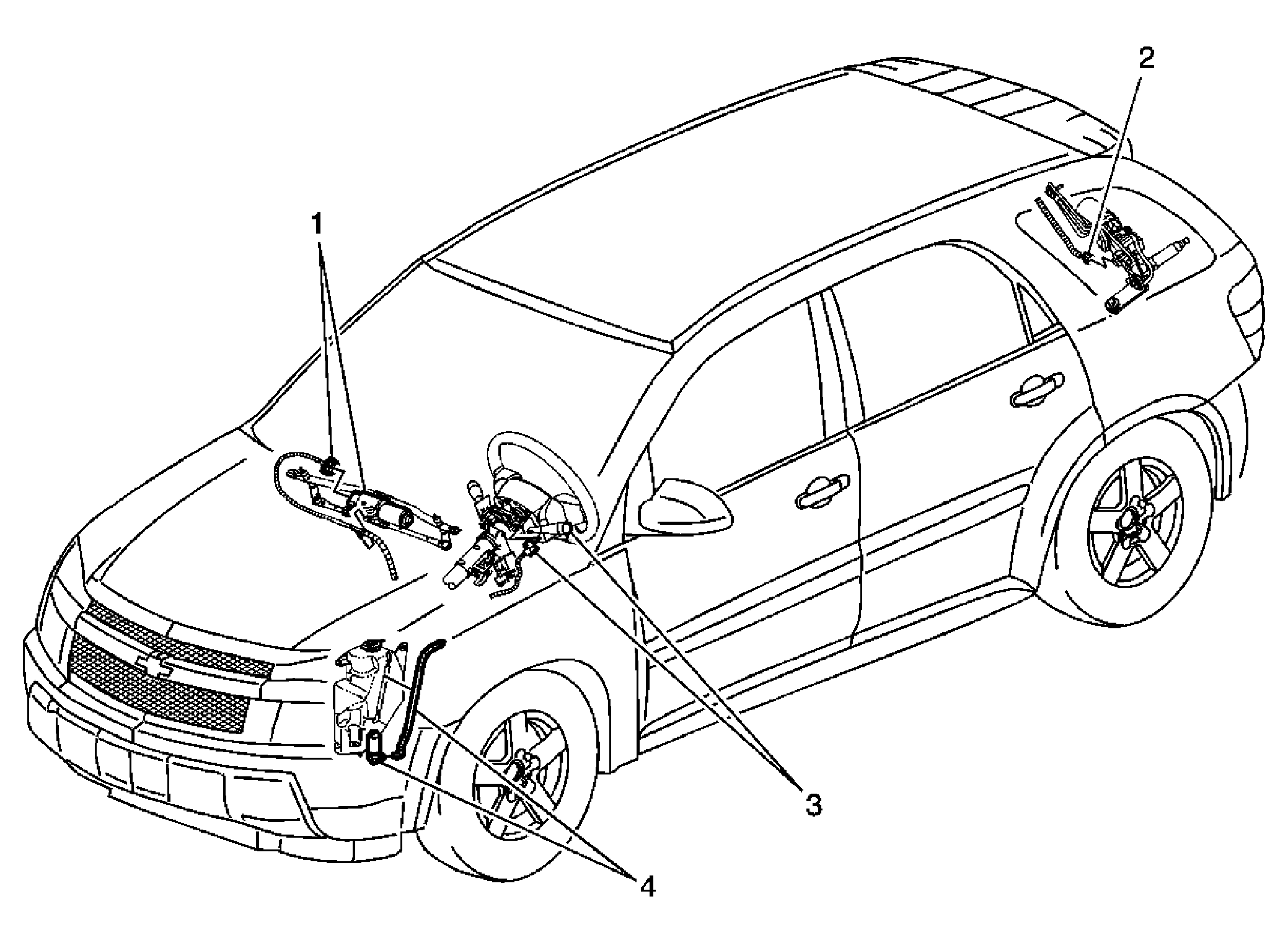

Fig 1: Wiper/Washer System Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Wiper/Washer Motor
2	Wiper Motor - Rear
3	Windshield Wiper/Washer Switch
4	Windshield Washer Fluid Pump
