Radio/Navigation System Schematics

WARNING: This page is about a different car, the 2008 Pontiac Torrent and 2008 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

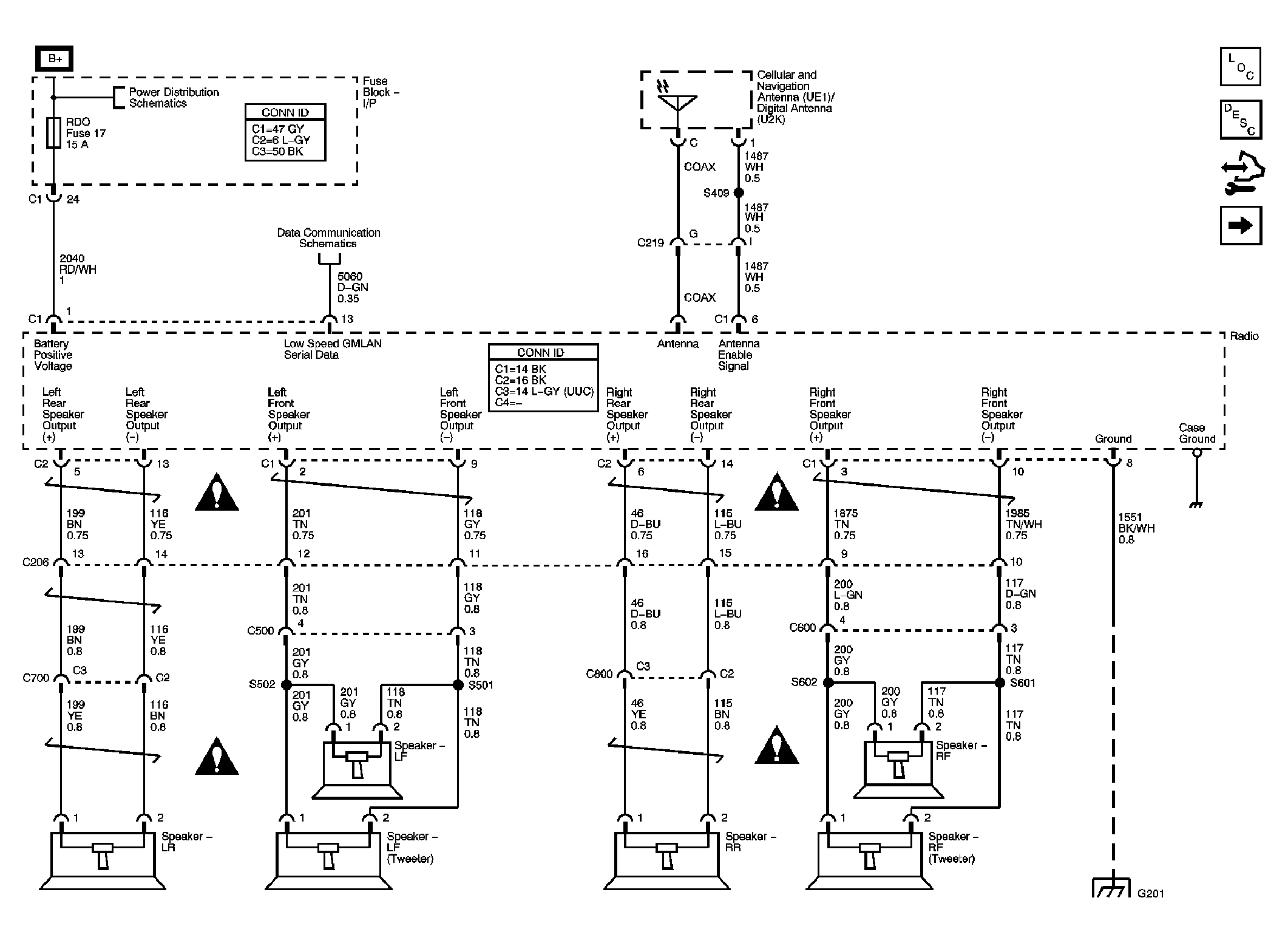

Fig 1: Radio (UC1)

GM1923625

Courtesy of GENERAL MOTORS CORP.

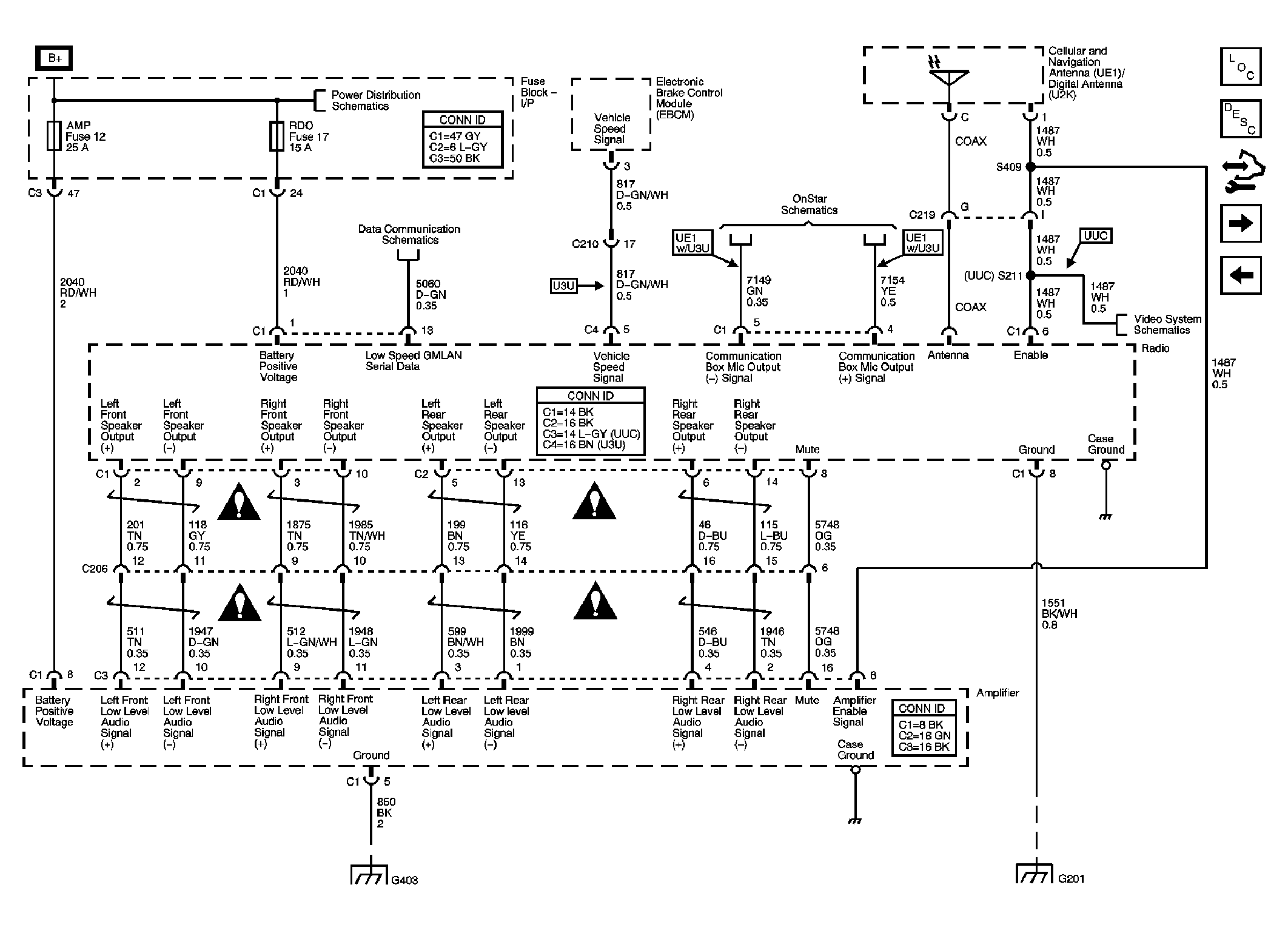

Fig 2: Radio (U65)

GM1923627

Courtesy of GENERAL MOTORS CORP.

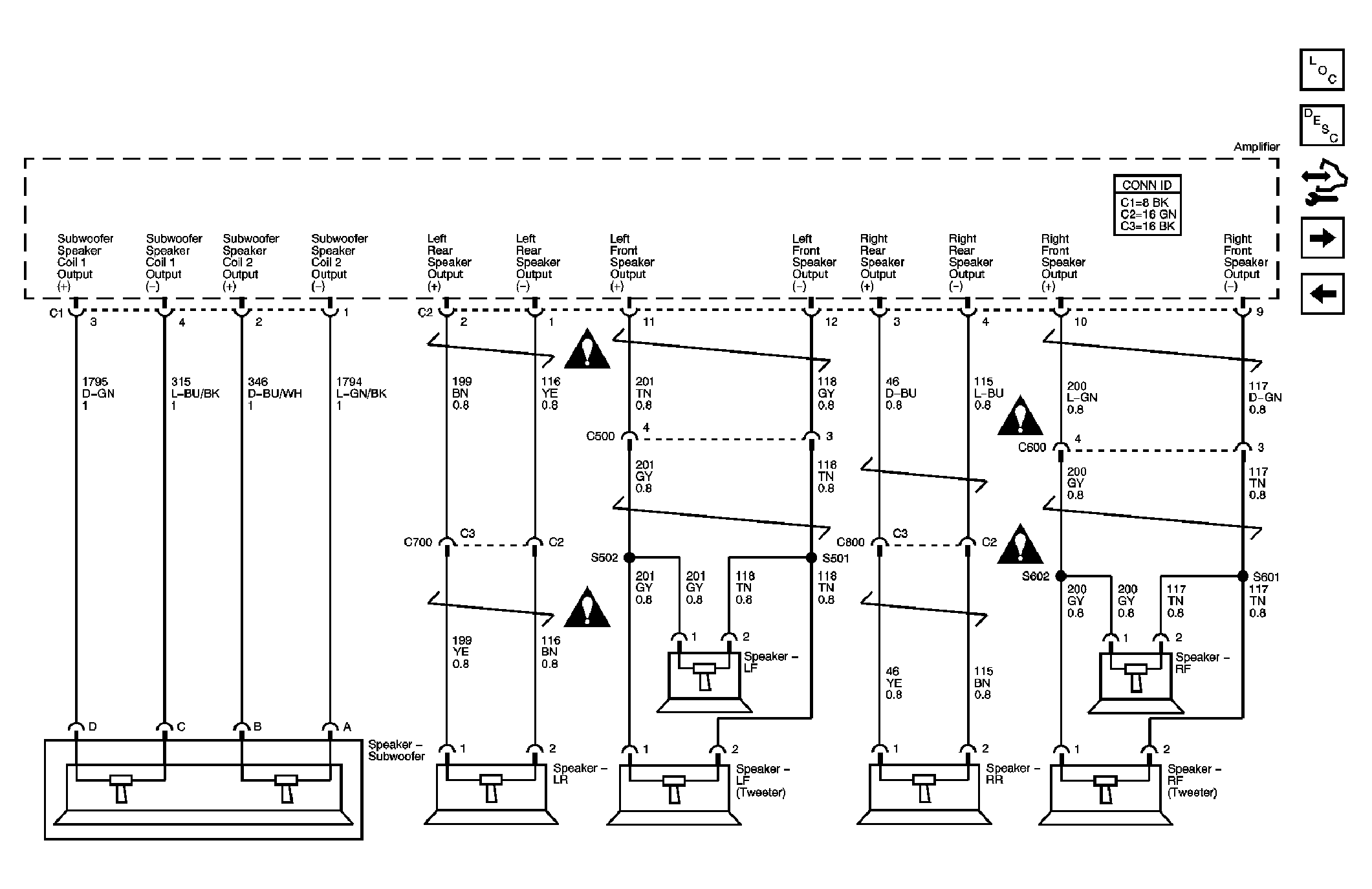

Fig 3: Speaker (U65)

GM1923630

Courtesy of GENERAL MOTORS CORP.

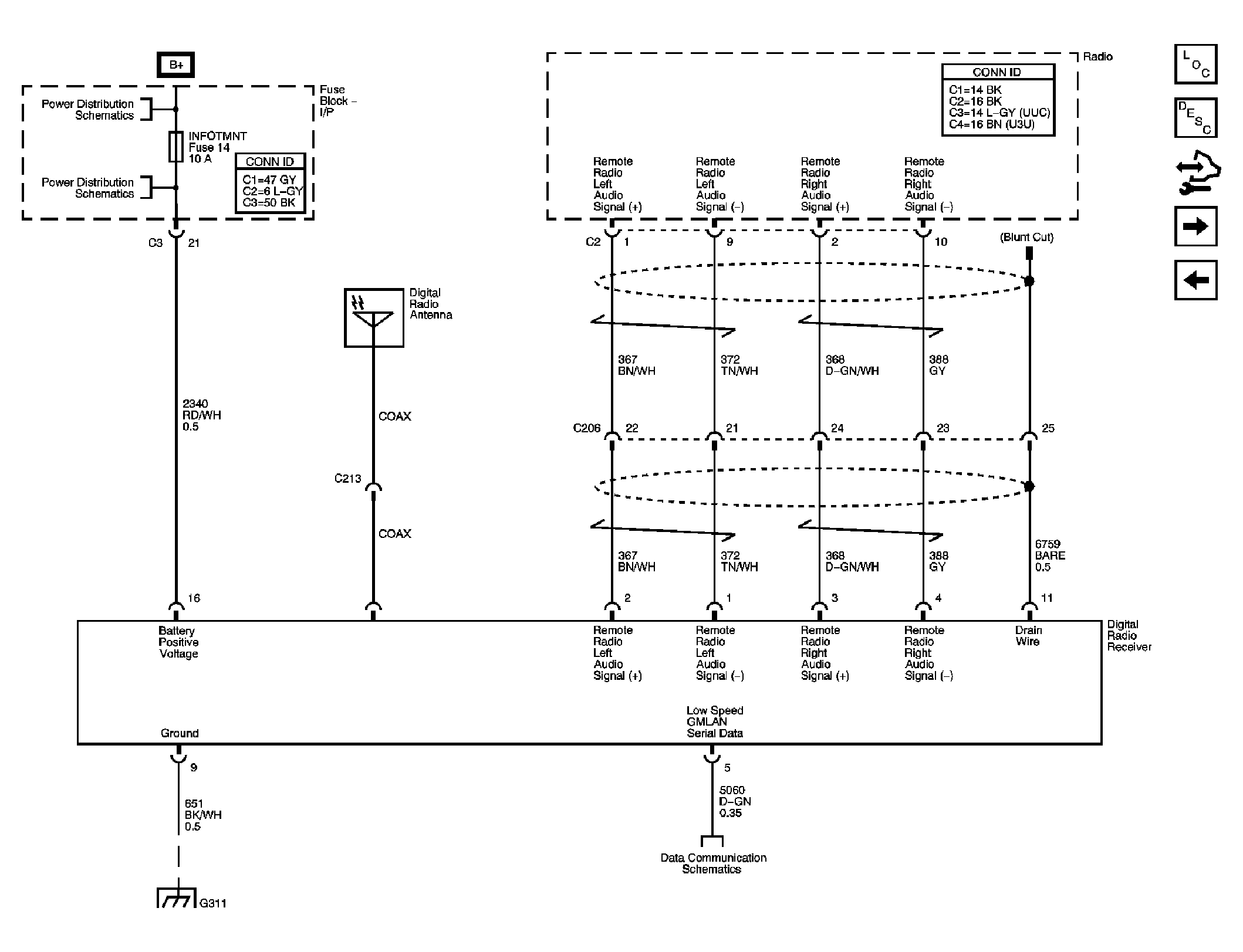

Fig 4: Digital Radio Receiver (U2K)

GM1923634

Courtesy of GENERAL MOTORS CORP.

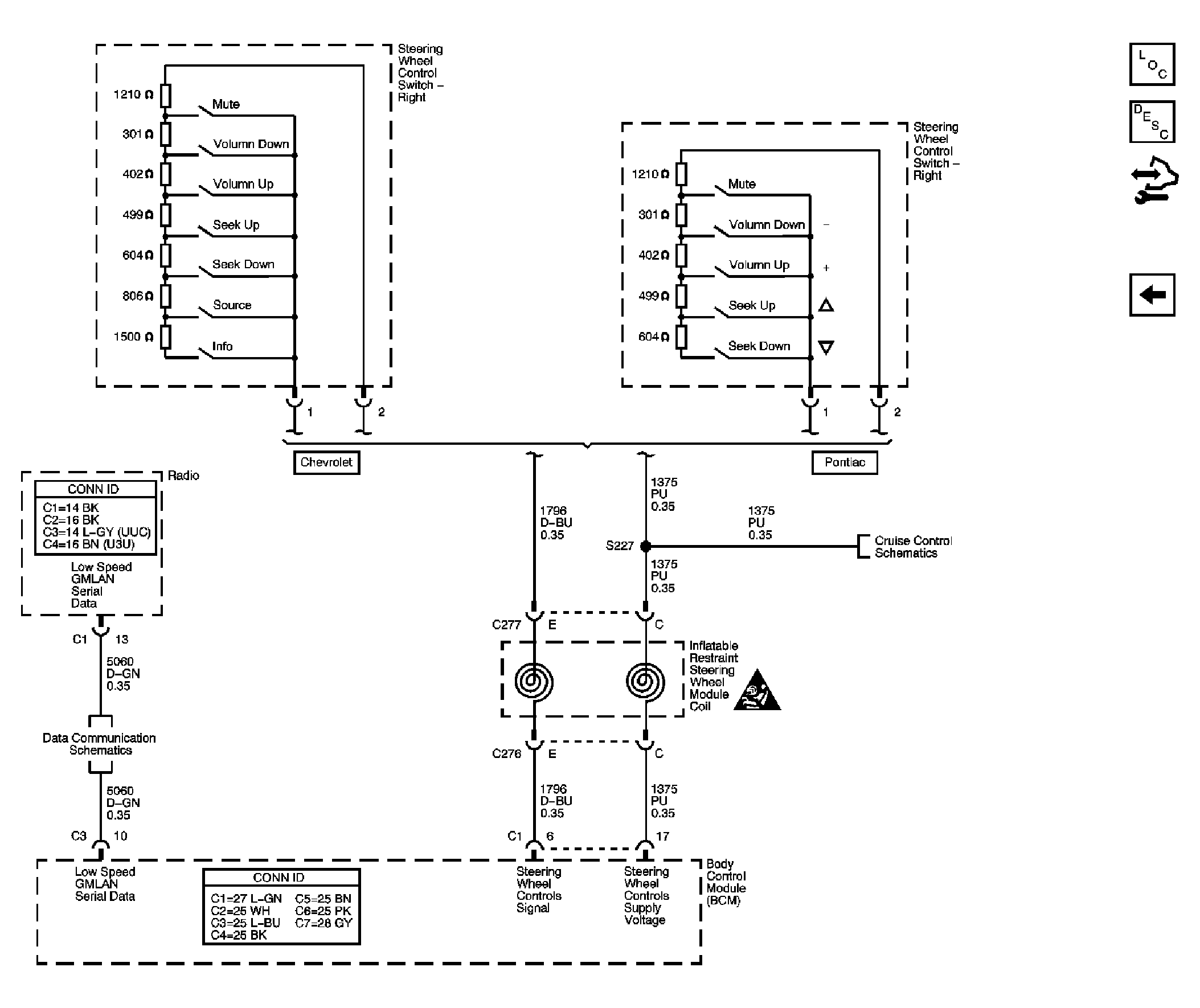

Fig 5: Steering Wheel Controls (UK3) (Chevrolet)

GM1923638

Courtesy of GENERAL MOTORS CORP.

Fig 6: Steering Wheel Controls (Pontiac)

GM1959124

Courtesy of GENERAL MOTORS CORP.
