Front Seat Belt Buckle Replacement

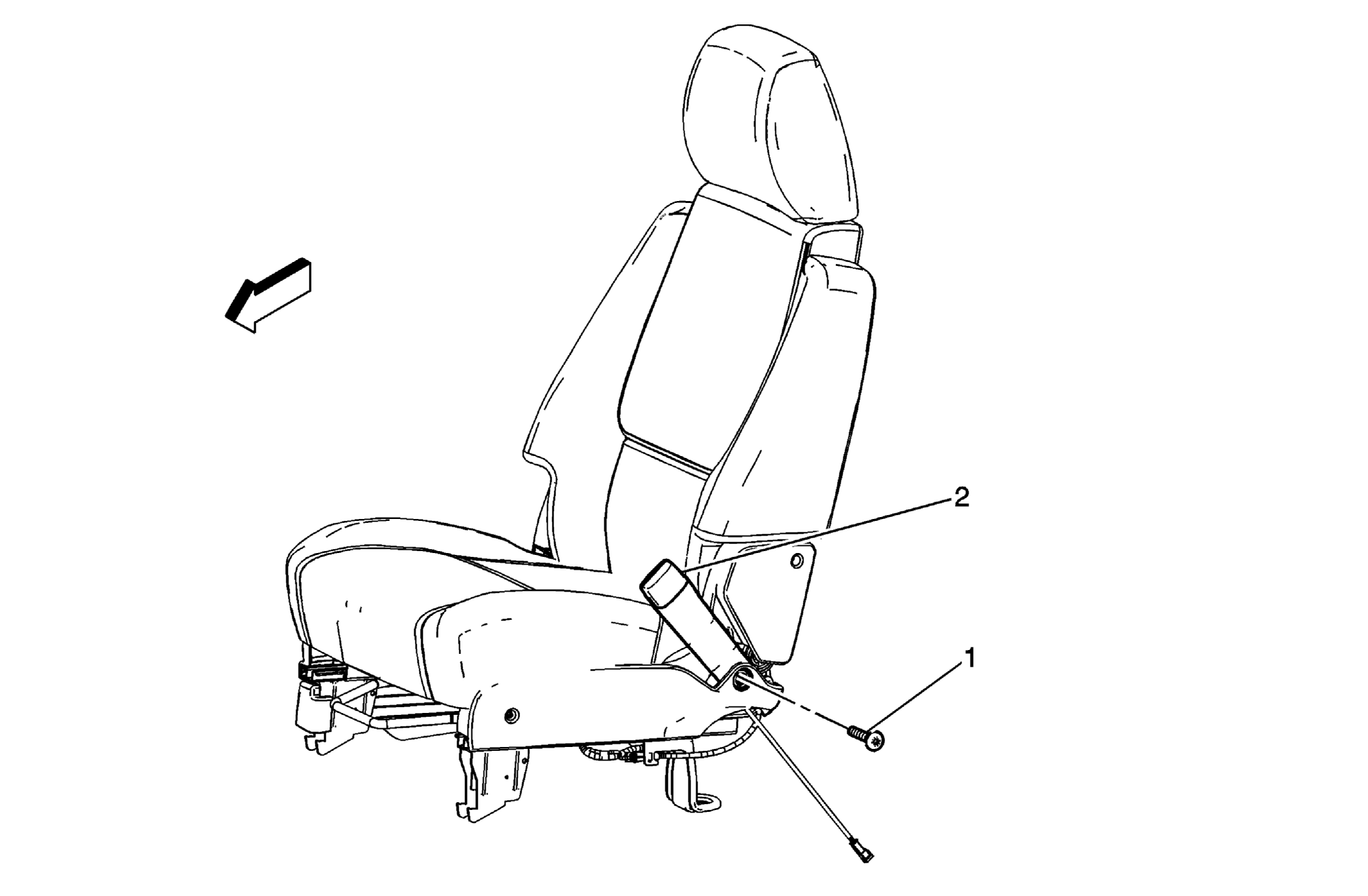

Fig 1: View Of Front Seat Belt Buckle
GM1722015Courtesy of GENERAL MOTORS CORP.
Front Seat Belt Buckle Replacement

Callout Component Name
1 Front Seat Belt Buckle Bolt (Qty: 1)
NOTE: Refer to Fastener Notice .

Tighten:  45 N.m (33 lb ft)

2 Front Seat Belt Buckle
Tip:
  1. Disconnect the electrical connector under the seat.
  2. Slide the buckle assembly upwards and out from between the seat cushion and the seat cushion inner trim panel.
