Data Communication Schematics

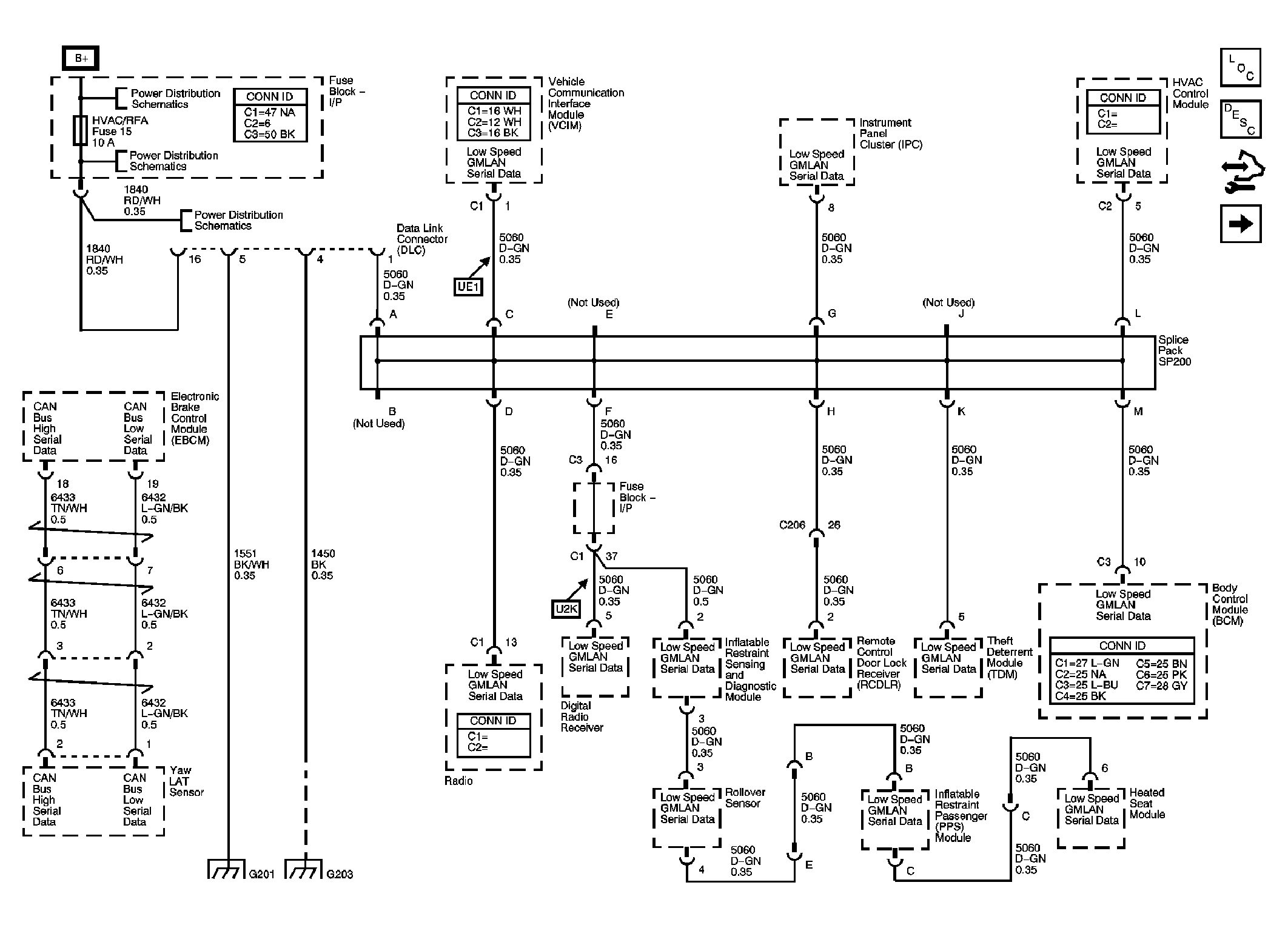

Fig 1: Low Speed GMLAN Schematic

Courtesy of GENERAL MOTORS CORP.

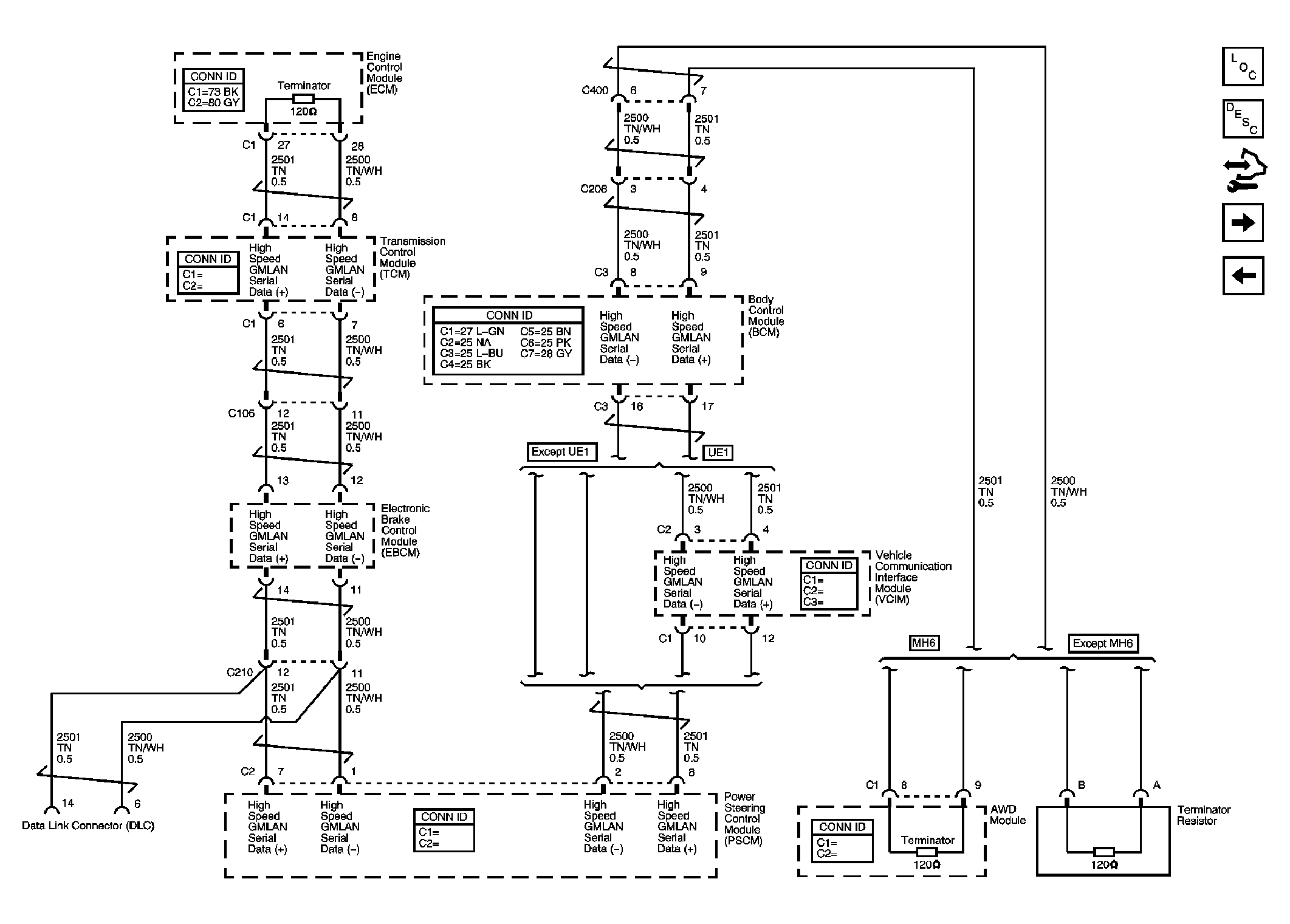

Fig 2: High Speed GMLAN Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: Communication Enable Schematic

Courtesy of GENERAL MOTORS CORP.
