Installation Procedure

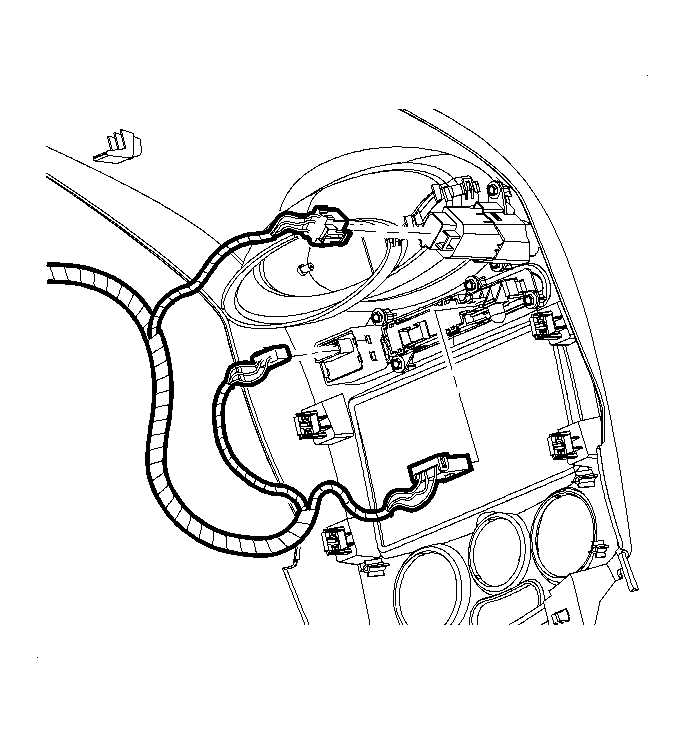

    Fig 1: Identifying Electrical Connectors
    GM977307Courtesy of GENERAL MOTORS CORP.
  1. Install the traction control switch to the trim bezel. Ensure that the retaining tabs are fully engaged.

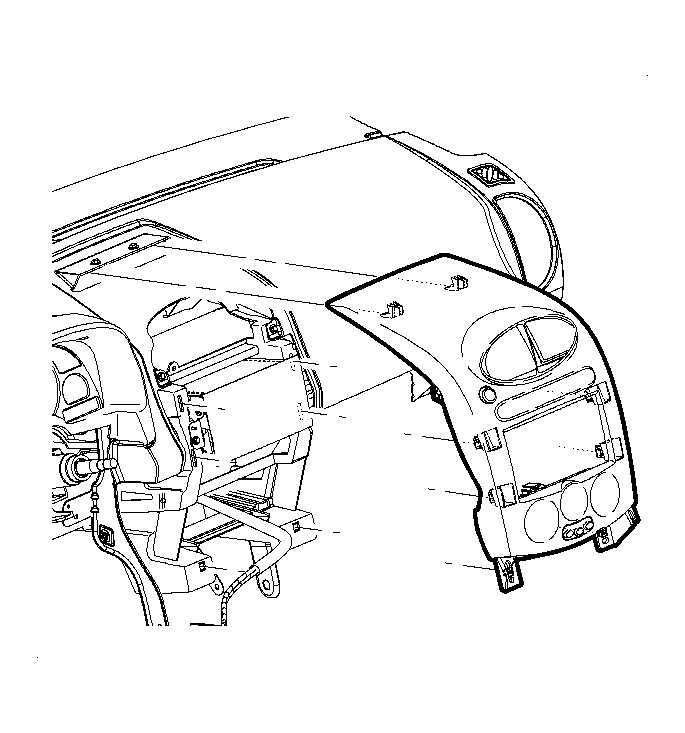

    2. Fig 2: View Of I/P Trim Bezel
    GM977304Courtesy of GENERAL MOTORS CORP.
  2. Install the instrument panel (I/P) trim bezel. Refer to Instrument Panel Accessory Bezel Replacement .
