Antilock Brake System Schematics

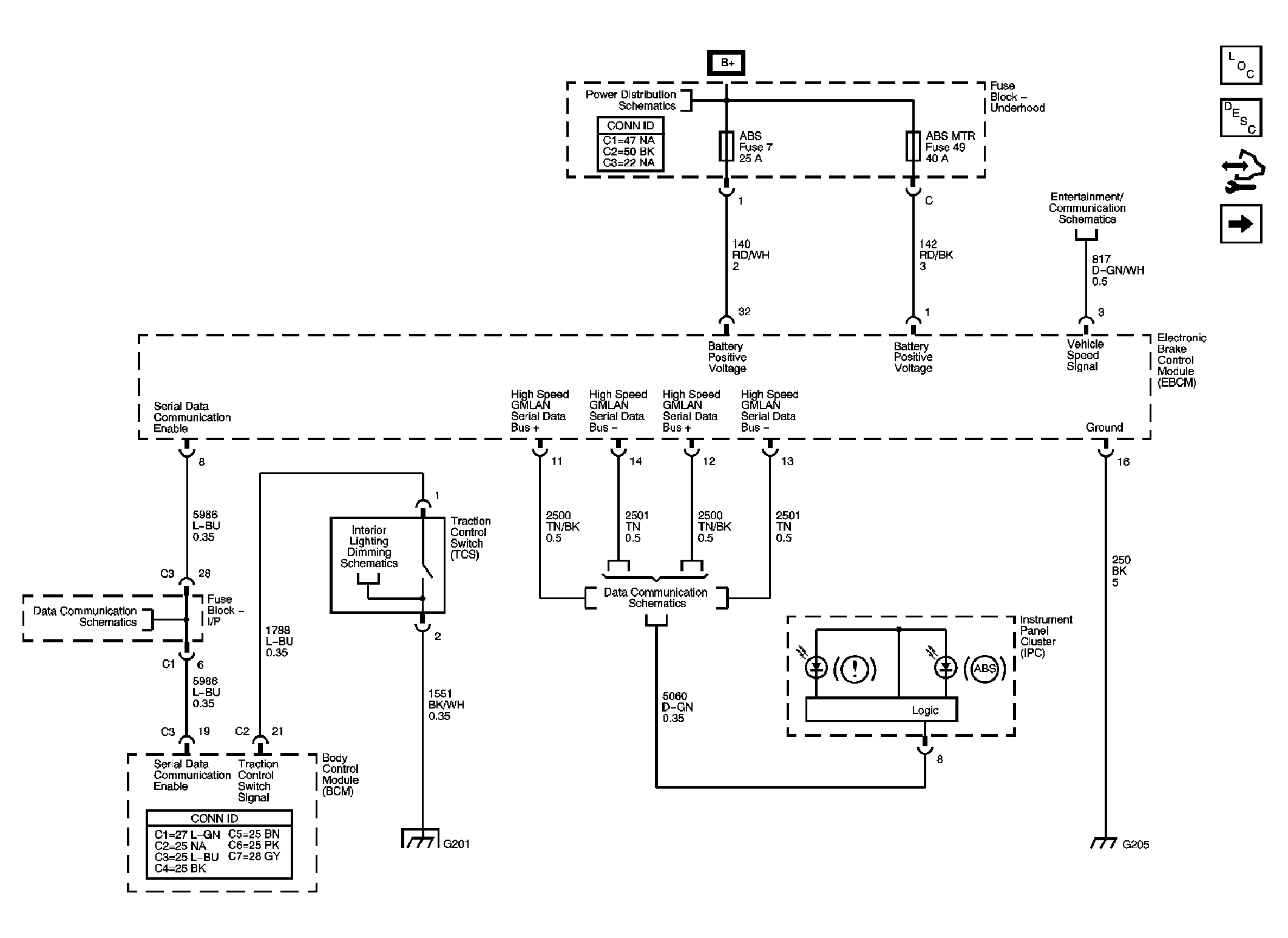

Fig 1: Serial Data, Traction Switch & Instrument Panel Schematic

Courtesy of GENERAL MOTORS CORP.

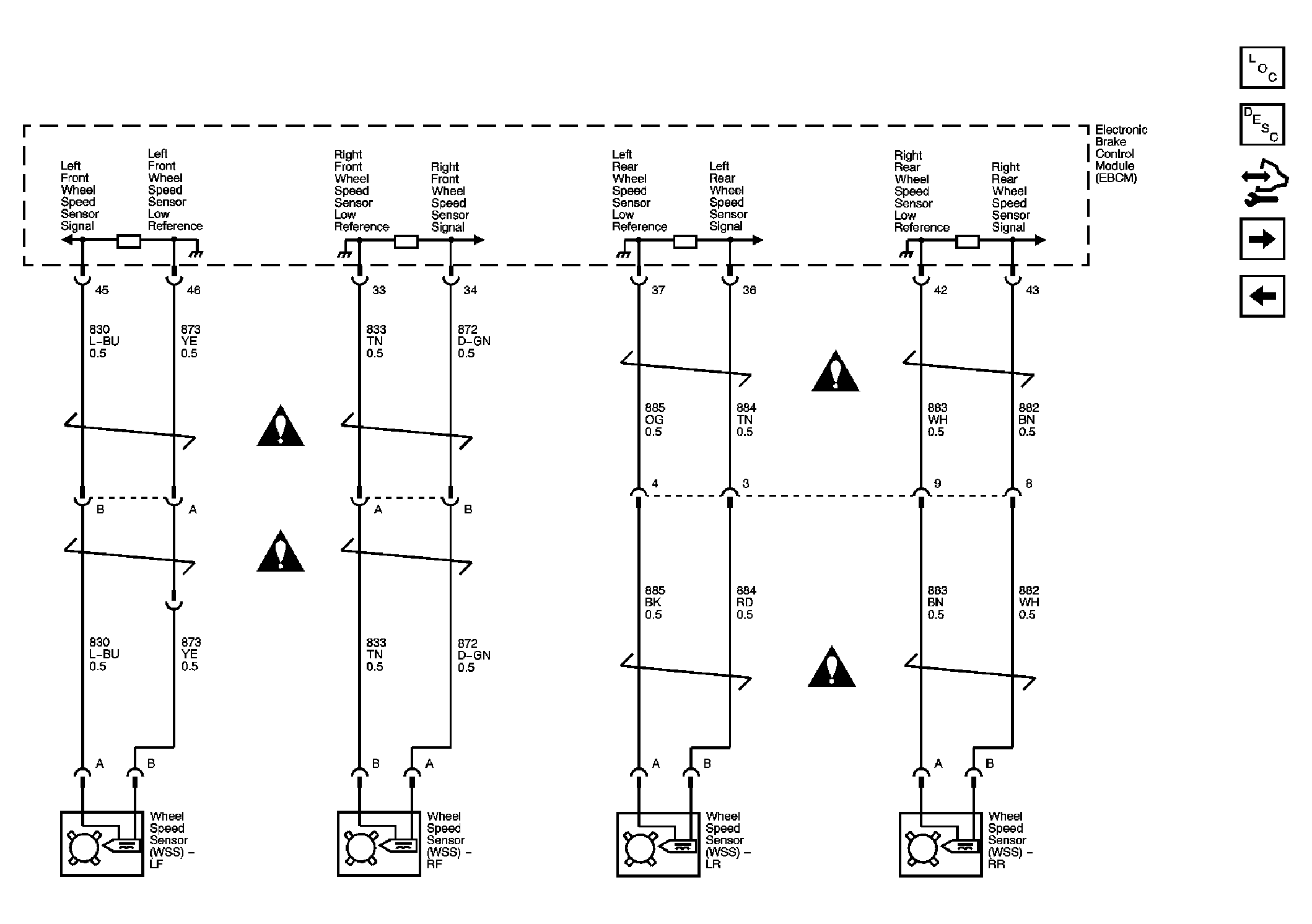

Fig 2: Wheel Speed Sensor Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: Yaw/Lateral Sensor Schematic

Courtesy of GENERAL MOTORS CORP.
