Power Outlet Component Views

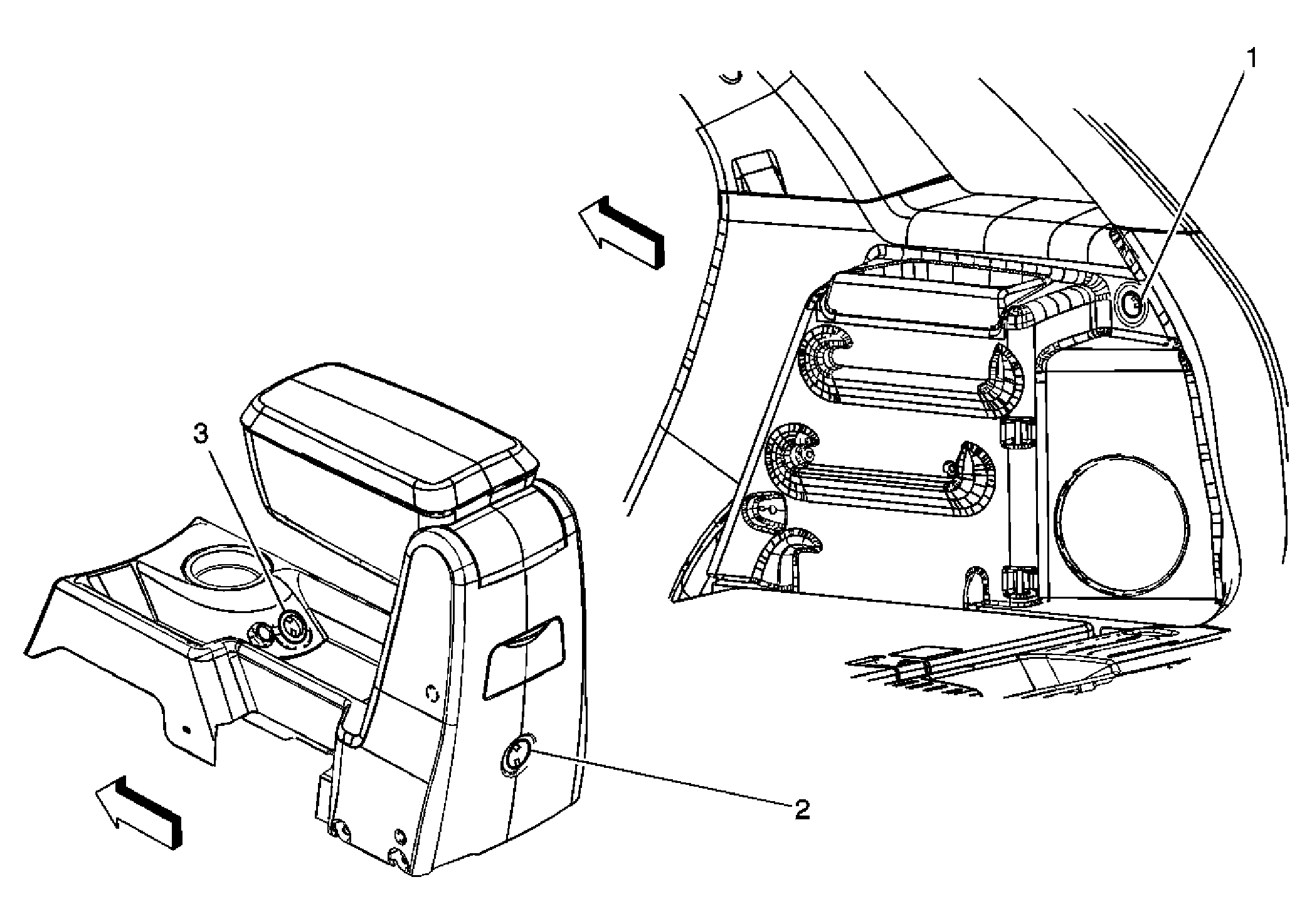

Fig 1: Power Outlets Components View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Auxiliary Power Outlet - Rear
2	Auxiliary Power Outlet - Front
3	Cigar Lighter
