Shift Lock Solenoid/Switch Assembly Replacement

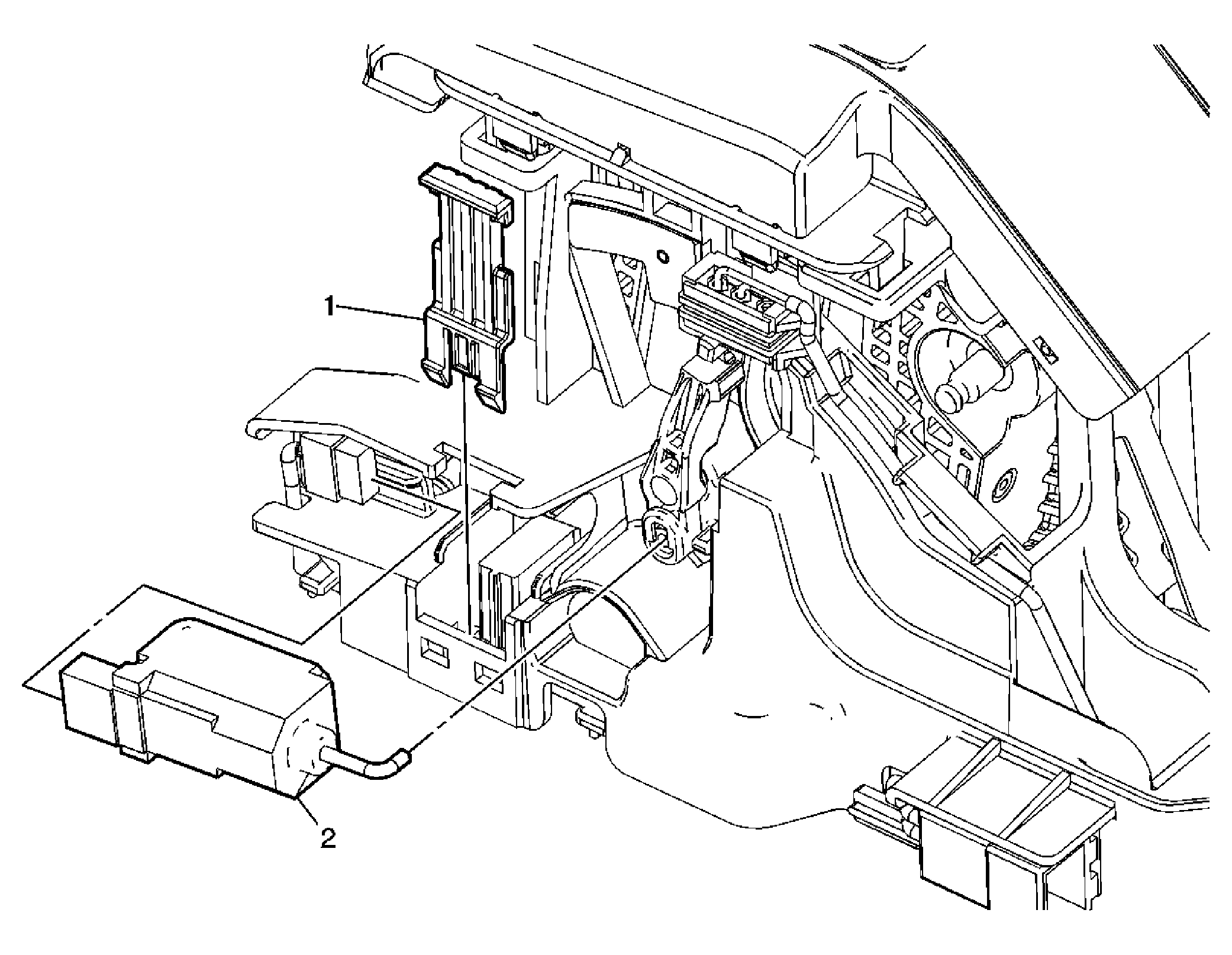

Fig 1: Identifying Shift Lock Solenoid/Switch Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the console side trim panel. Refer to Front Floor Console Side Trim Panel Replacement - Right Side . Disconnect the brake transaxle shift interlock (BTSI) solenoid electrical harness connector.
1	Brake Transaxle Shift Interlock Solenoid Retainer
2	Brake Transaxle Shift Interlock Solenoid

Callout

Component Name

Preliminary Procedures

Remove the console side trim panel. Refer to Front Floor Console Side Trim Panel Replacement - Right Side .
Disconnect the brake transaxle shift interlock (BTSI) solenoid electrical harness connector.

Brake Transaxle Shift Interlock Solenoid Retainer

Brake Transaxle Shift Interlock Solenoid
