Remote Function Component Views

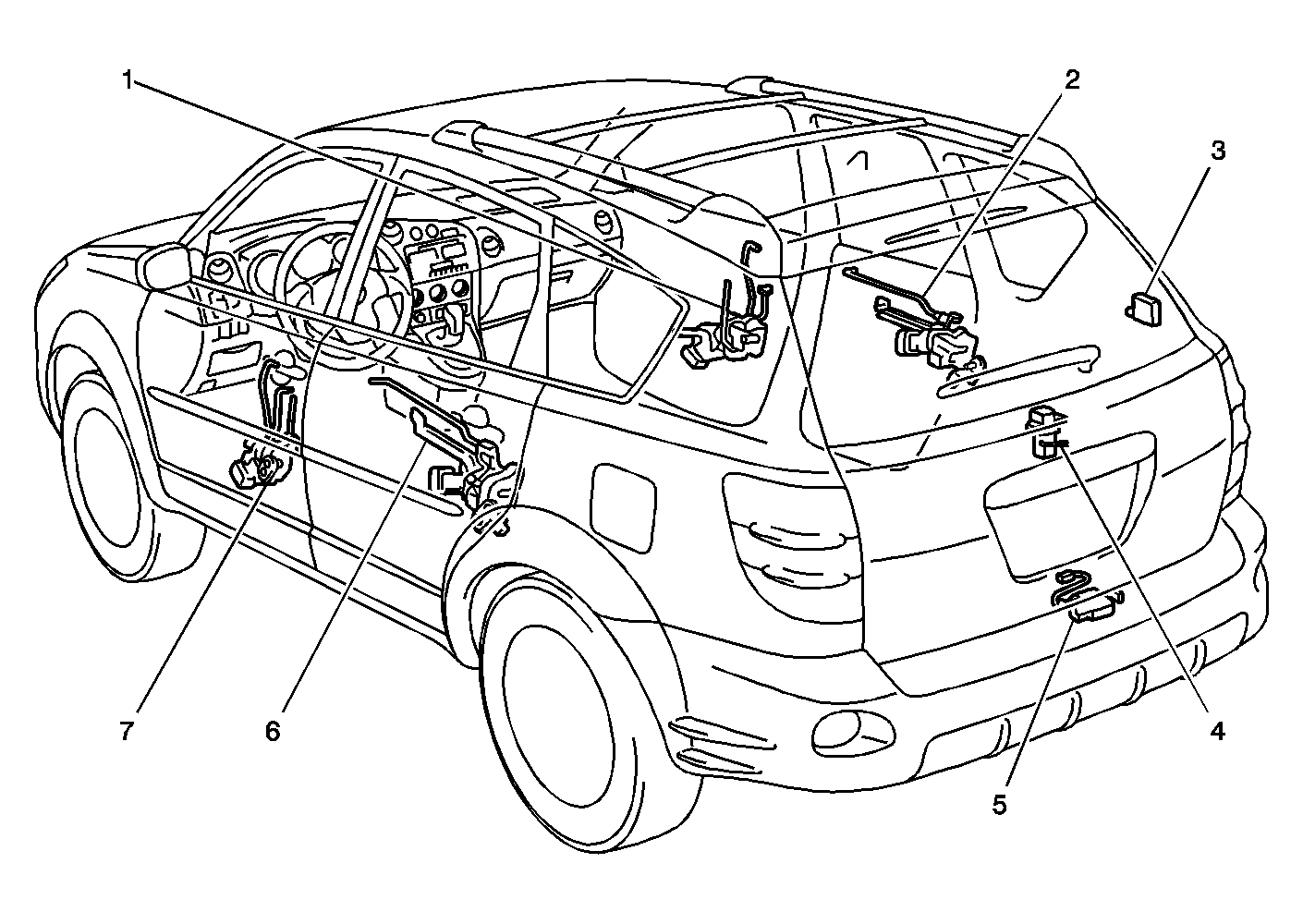

Fig 1: Keyless Entry Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Passenger Front Door Lock Assembly
2	Right Rear Door Lock Assembly
3	Keyless Entry Reciever
4	Glass Hatch Lock Assembly
5	Tailgate Lock Assembly
6	Left Rear Door Lock Assembly
7	Drivers Door Lock Assembly
