Installation Procedure

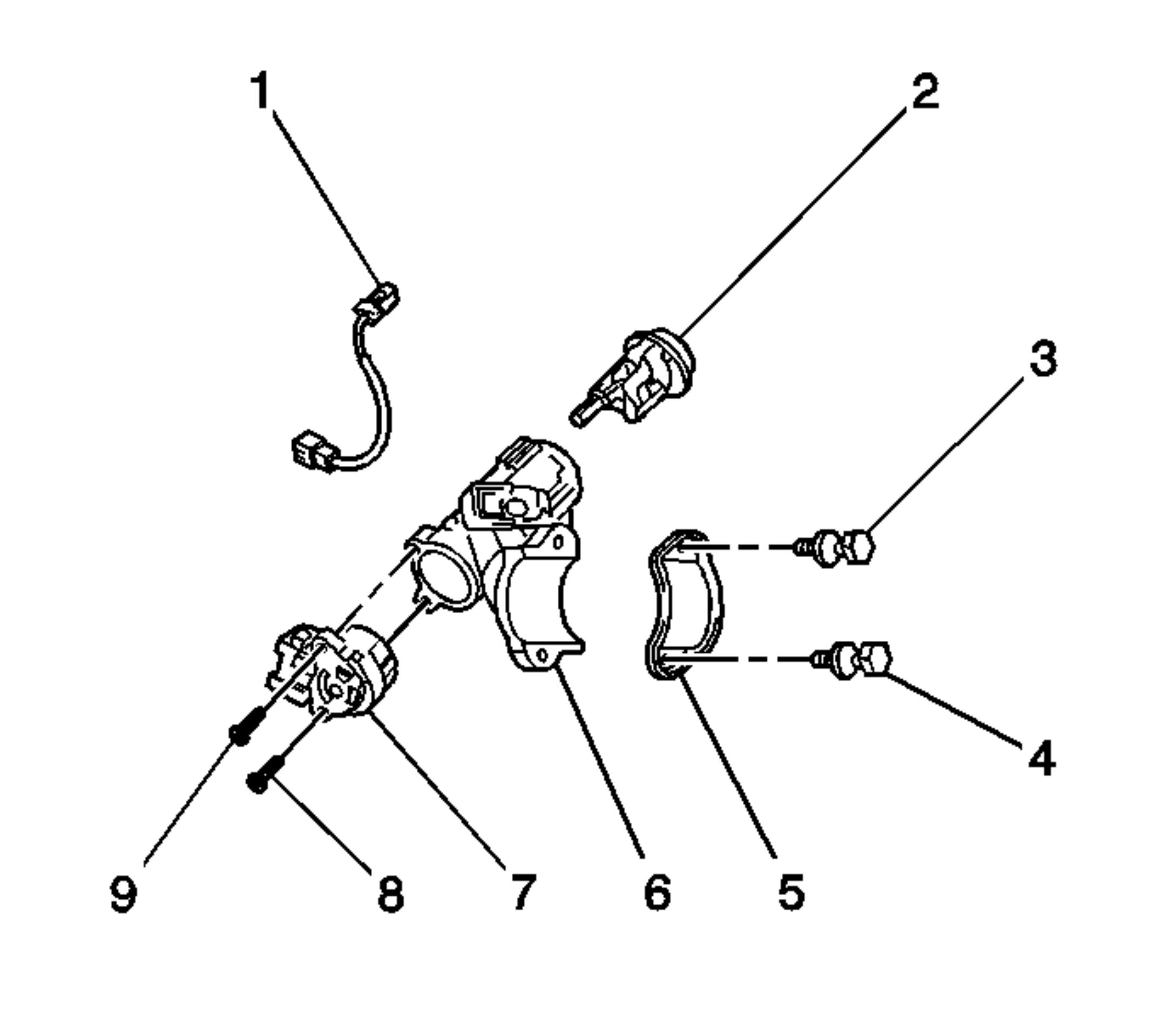

    Fig 1: Ignition Key Alarm Switch, Lock Cylinder, Ignition Switch, Cylinder Case, Case Clamp And Bolts
    GM820048Courtesy of GENERAL MOTORS CORP.
  1. Install the ignition switch (7) and the 2 screws (8,9).
  2. Connect the ignition switch electrical connector.
  3. Install the trim covers to the steering column. Refer to Steering Column Trim Covers Replacement .
  4. Enable the SIR system. Refer to SIR Disabling and Enabling .
