Mirror Component Views
Mirror Component Views

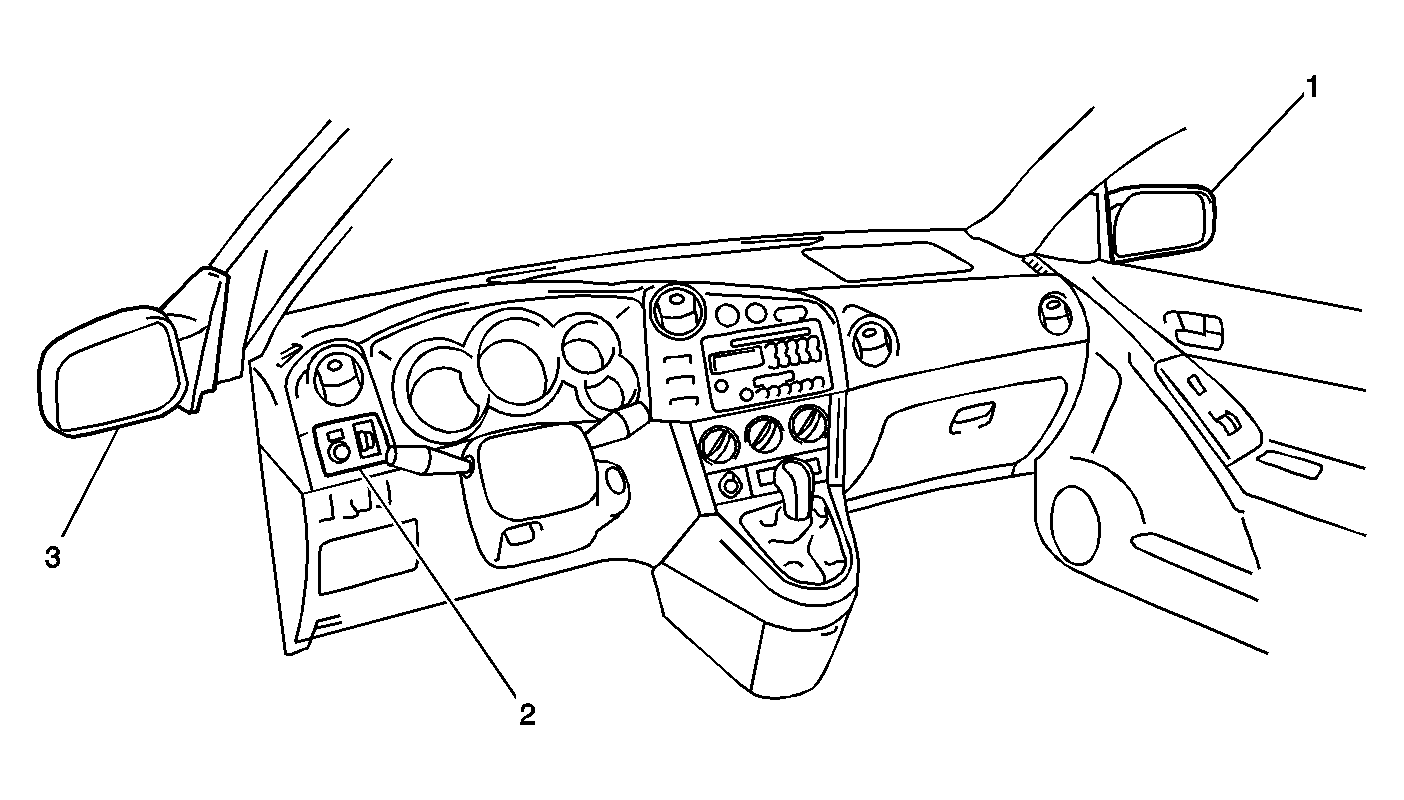

Fig 1: Power Mirrors Component Views
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Passenger Mirror Motor
2
Power Mirror Direction Switch
3
Driver Mirror Motor
