Power Mirror Replacement

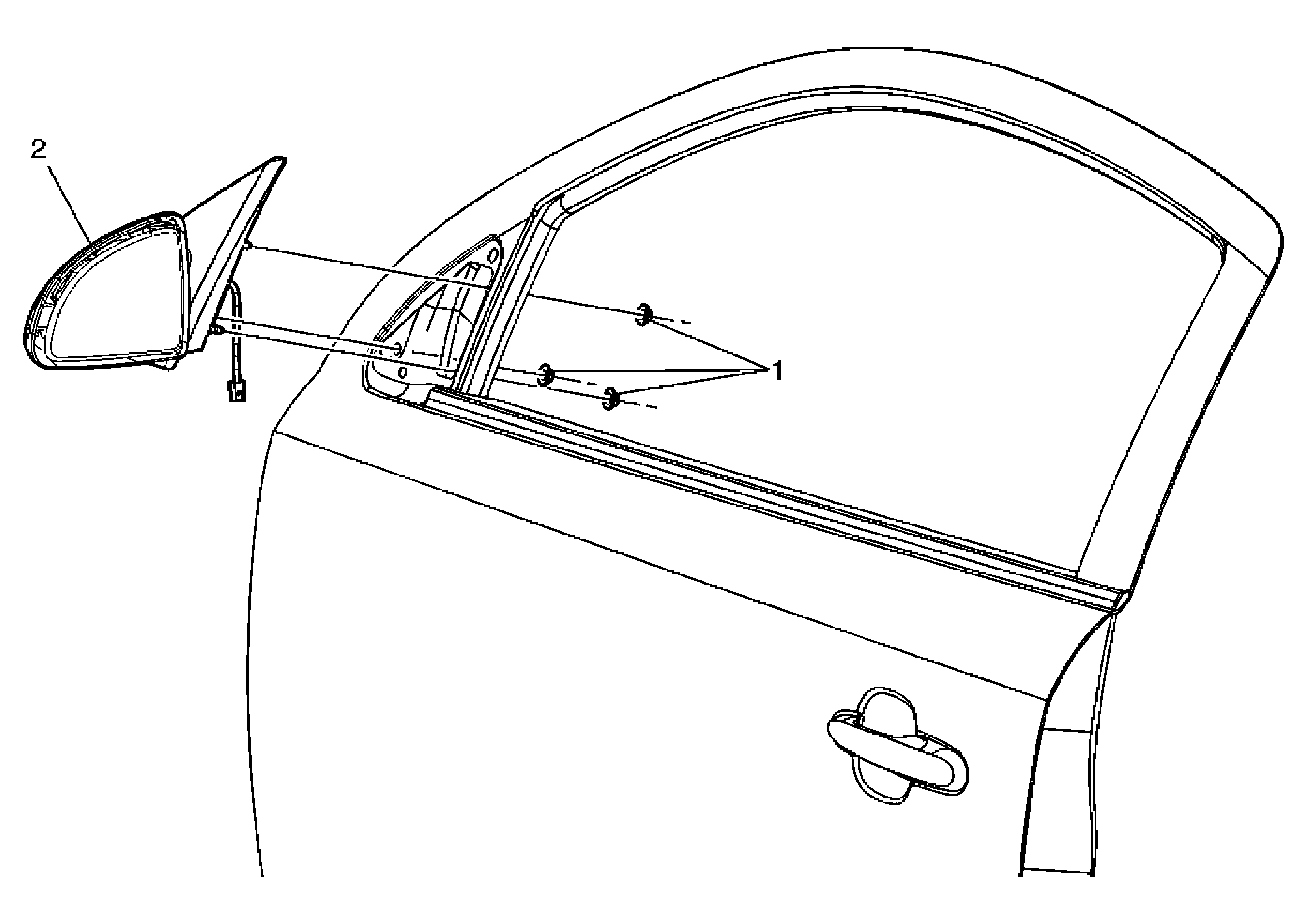

Fig 1: Mirror Replacement (Power)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the interior trim panel. Refer to Upper Extension Trim Panel Replacement .
1	Mirror Outside Rearview Nuts (Qty: 3) NOTE: Refer to Fastener Notice . Tighten: 10 N.m (89 lb in)
2	Outside Rearview Mirror Assembly Tip: Disconnect the electrical connector.
