Moveable Window Schematics

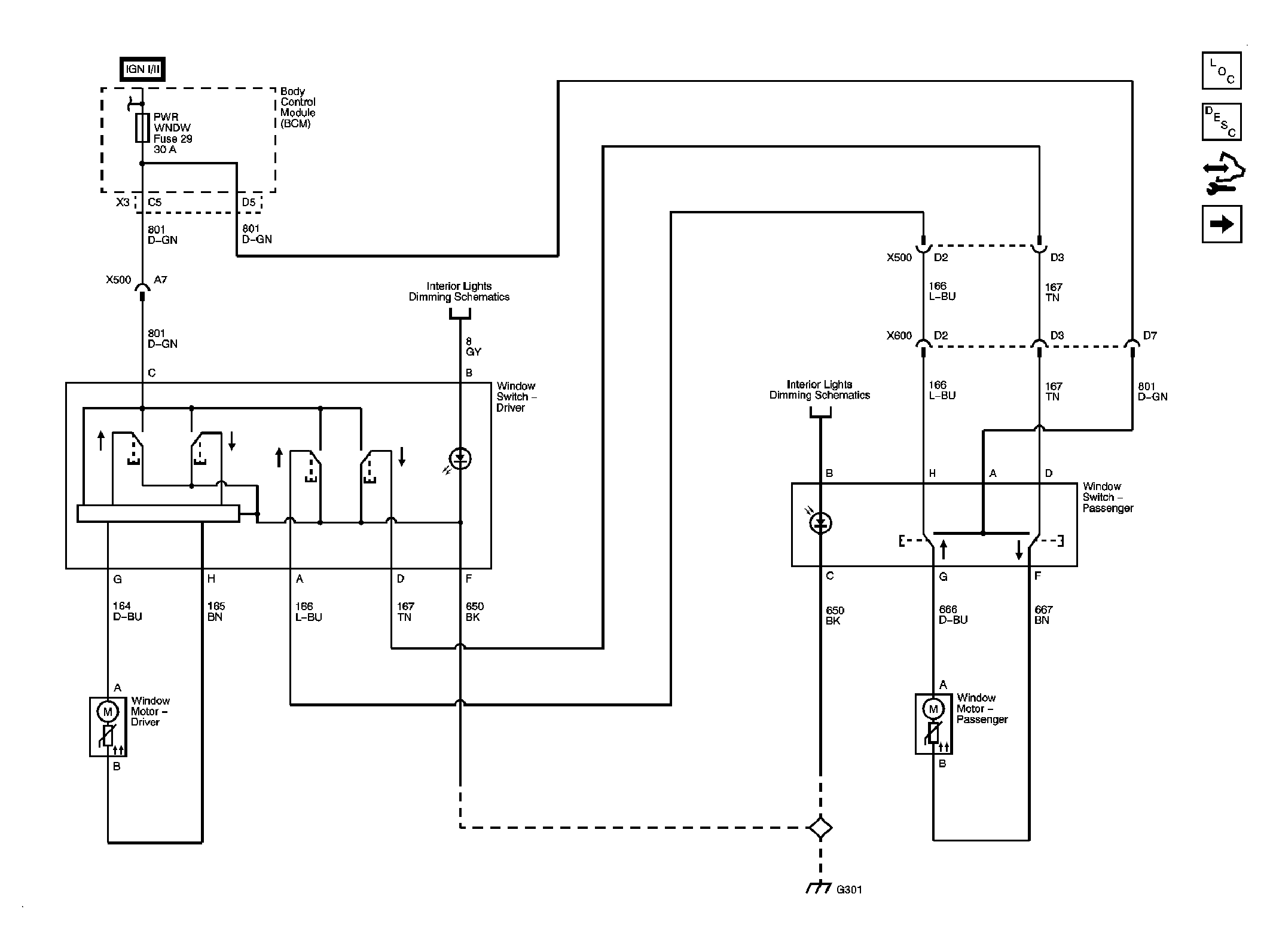

Fig 1: Moveable Window Schematic - Coupe
GM1963408Courtesy of GENERAL MOTORS CORP.

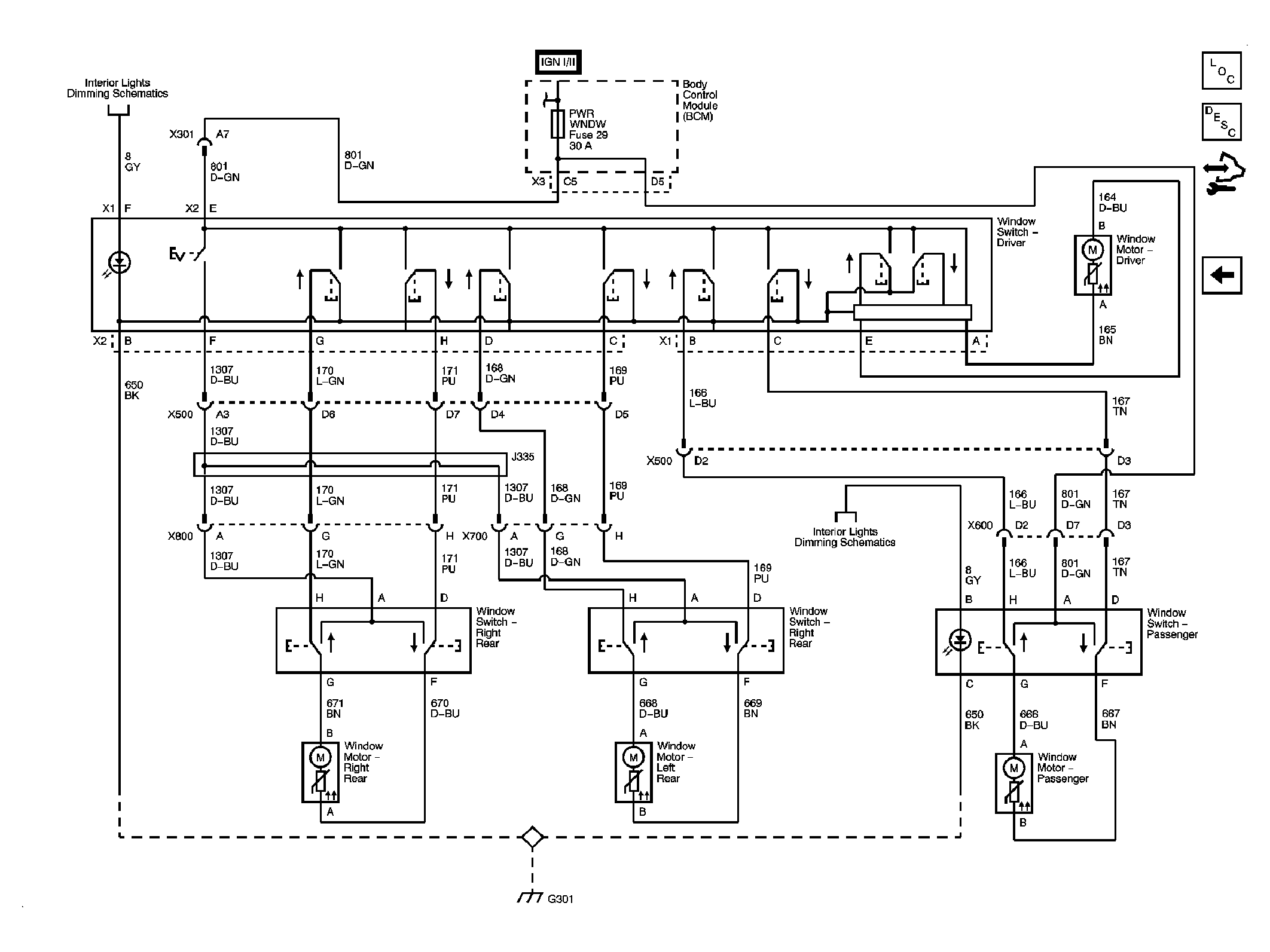

Fig 2: Moveable Window Schematic - Sedan
GM1965298Courtesy of GENERAL MOTORS CORP.
