Passenger Compartment/Roof Component Views

Fig 1: View Of Inside Rearview Mirror

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlight Sensor (DD8)
2	OnStar® Indicator - Red
3	Emergency Button
4	OnStar® Call Center Button
5	Answer/End Call Button
6	Inside Rearview Mirror (ISRVM) On./Off Button (DD8)
7	Onstar Indicator - Green

Fig 2: View Of Driver Seat

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Belt Switch
2	Heated Seat Element - Driver Back (KA1)
3	Heated Seat Element - Driver Cushion (KA1)
4	Seat Belt Switch Connector - Driver
5	X315 (KA1)
6	Heated Seat Module - Driver (KA1)

Fig 3: Identifying Passenger Presence System (PPS) Components 2 Of 2

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Front Passenger Presence System (PPS) Sensor
2	Front Passenger Seat
3	Inflatable Restraint Front Passenger Presence System (PPS) Module

Fig 4: View Of Passenger Seat

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heated Seat Element - Passenger Back (KA1)
2	Seat Belt Buckle/Seat Belt Switch
3	Heated Seat Module - Passenger (KA1)
4	X314 (KA1)
5	Heated Seat Element - Passenger Cushion (KA1)

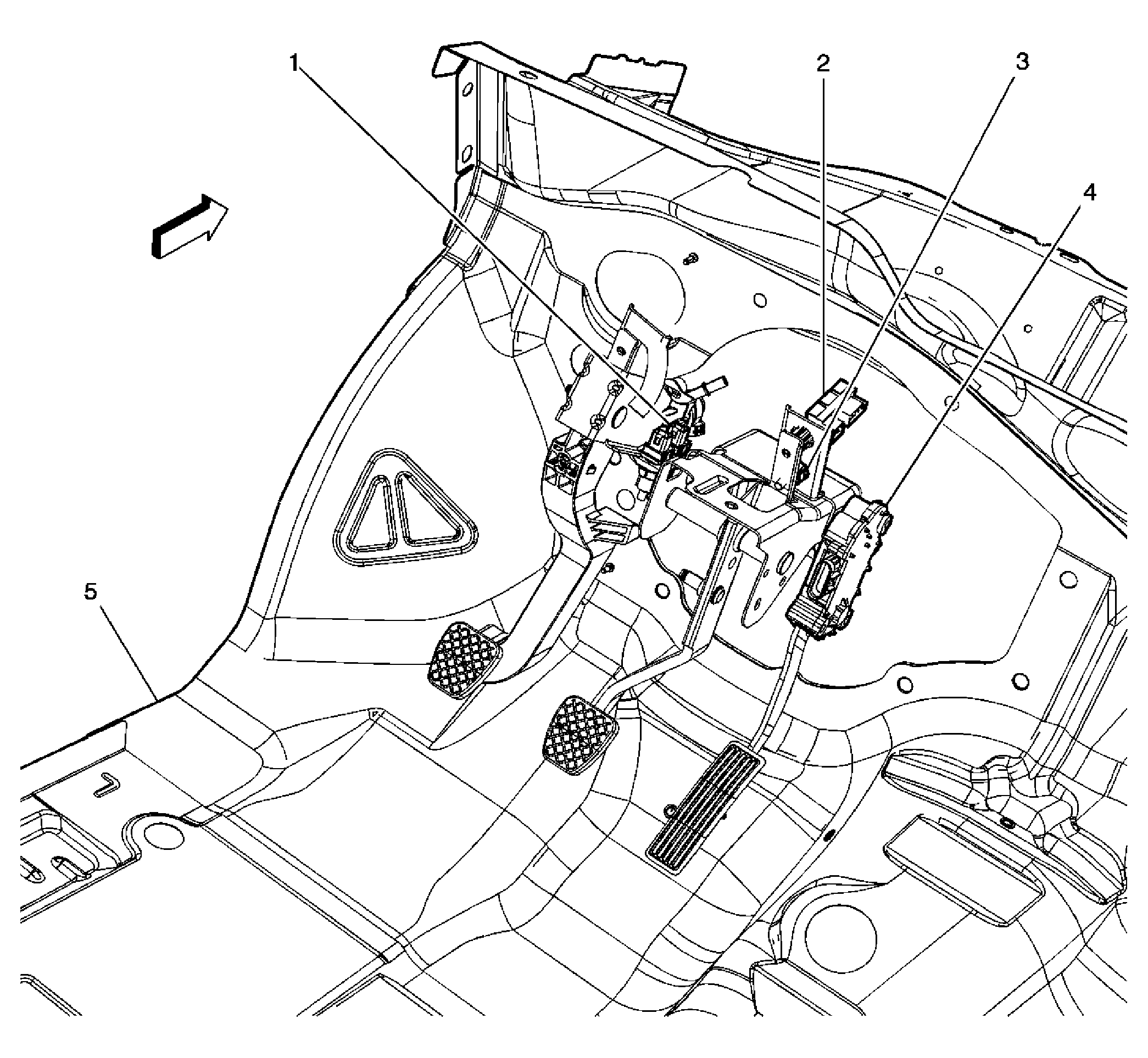

Fig 5: Identifying Pedal Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Clutch Pedal Position (CCP) Sensor (M86/MU3)
2	Brake Pedal Position Sensor
3	Cruise Control Cancel Switch
4	Accelerator Pedal Position (APP) Sensor
5	Floor Pan

Fig 6: Locating Air Bags

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Roof Rail Module - Left (ASF)
2	Inflatable Restraint I/P Module
3	Inflatable Restraint Roof Rail Module - Right (ASF)
4	Driver Seat
5	Floor Pan
6	Inflatable Restraint I/P Module

Fig 7: Identifying Audio Amplifier, Radio & Speakers

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radio
2	Speaker - Right Front Door
3	Speaker - Right Rear
4	Speaker - Subwoofer (UQ3)
5	Speaker - Left Rear
6	Floor Pan
7	Speaker - Left Front Door
8	Audio Amplifier (UQ3)

Fig 8: Identifying Seat Belt Pretensioners - Sedan

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Left Body Panel
2	Inflatable Restraint Sensing and Diagnostic Module (SDM)
3	Seat Belt Pretensioner - Right Front
4	Floor Panel
5	Seat Belt Pretensioner - Left Front

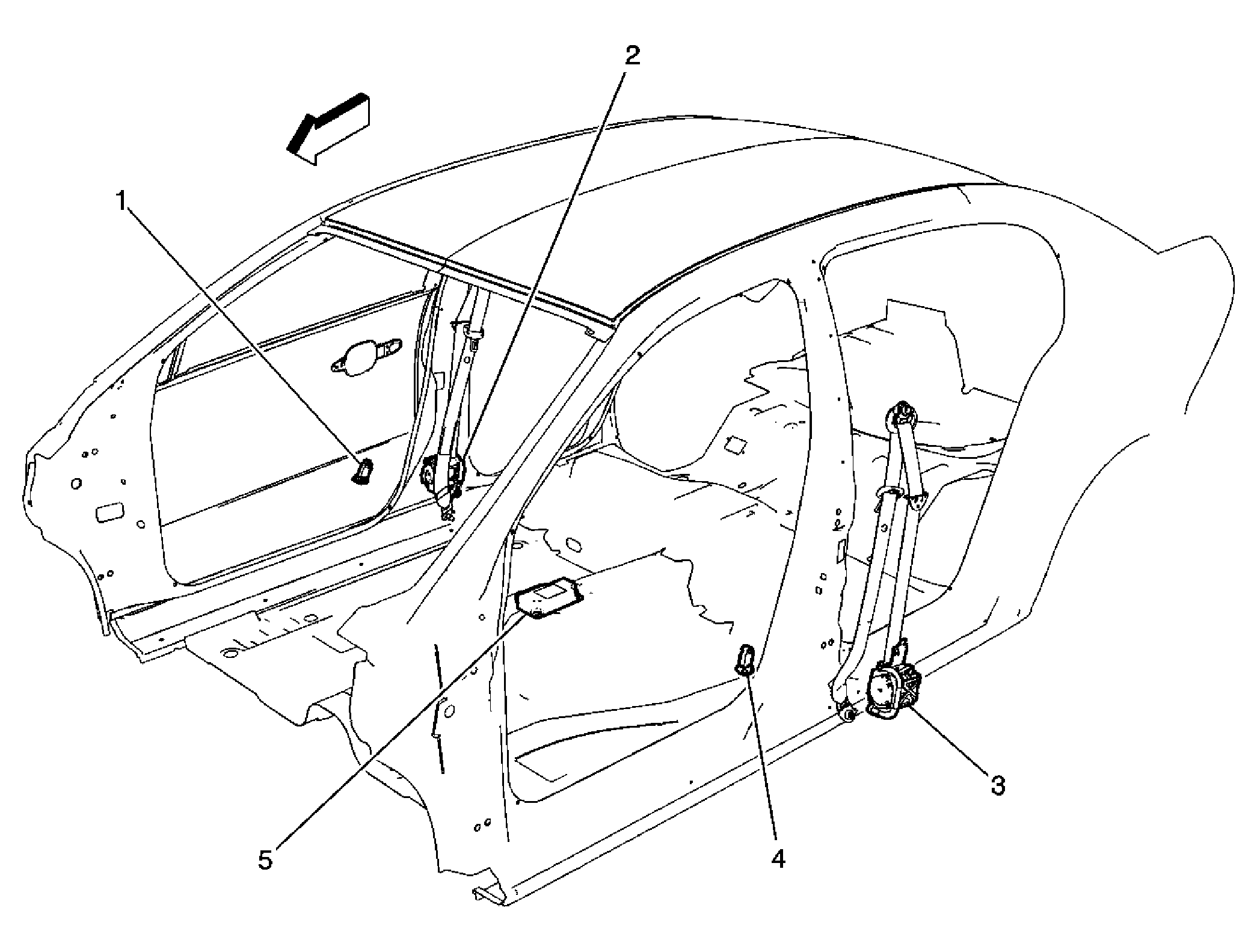

Fig 9: Identifying SIR Components - Passenger Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Side Impact Sensor (SIS) - Right (ASF)
2	Seat Belt Retractor Pretensioner - Passenger
3	Seat Belt Retractor Pretensioner - Driver
4	Inflatable Restraint Side Impact Sensor (SIS) - Left (ASF)
5	Inflatable Restraint Sensing and Diagnostic Module (SDM)

Fig 10: Locating Door Jamb Switches - Coupe

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Left Body Panel
2	Rear Window
3	Door Ajar Switch - Front Passenger
4	Door Ajar Switch - Driver

Fig 11: Locating Door Jamb Switches - Sedan

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Left Body Panel
2	Door Ajar Switch - Front Passenger
3	Door Ajar Switch - Right Rear
4	Rear Fascia
5	Door Ajar Switch - Left Rear
6	Door Ajar Switch - Driver

Fig 12: Headliner Components (w/o CF5)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headliner
2	Dome Lamp
3	Cellular Microphone (UE1)

Fig 13: Identifying Passenger Presence System (PPS) Components 1 Of 2

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radio
2	Heated Seat Switch-Passenger (KA1)
3	HVAC Control Module
4	Heated Seat Switch-Driver (KA1)
5	Inflatable Restraint PASSENGER AIR BAG ON/OFF Indicator
