Steering Wheel Secondary/Configurable Control Schematics

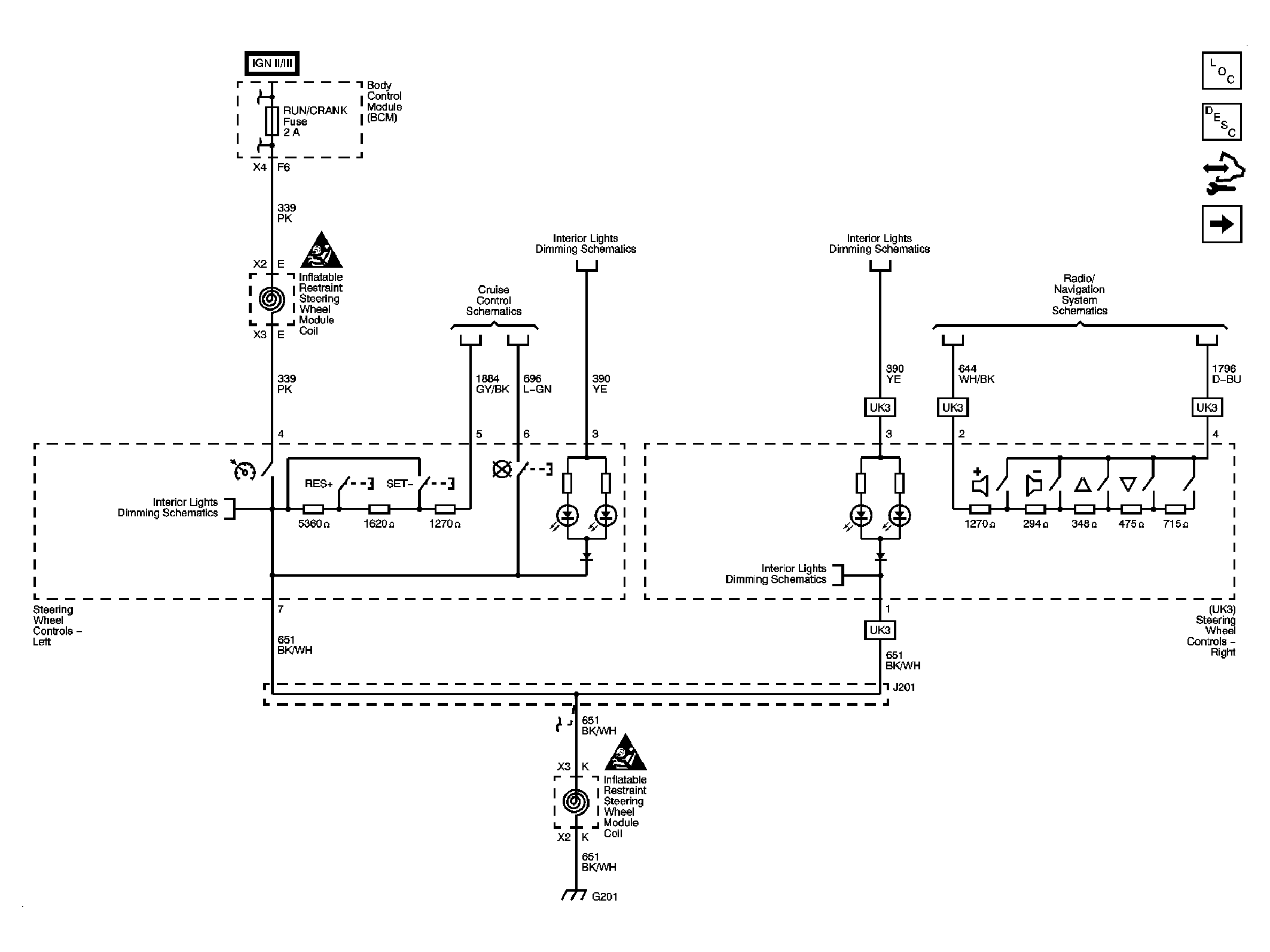

Fig 1: Steering Wheel Secondary/Configurable Control Schematic - 3-Spoke

Courtesy of GENERAL MOTORS CORP.

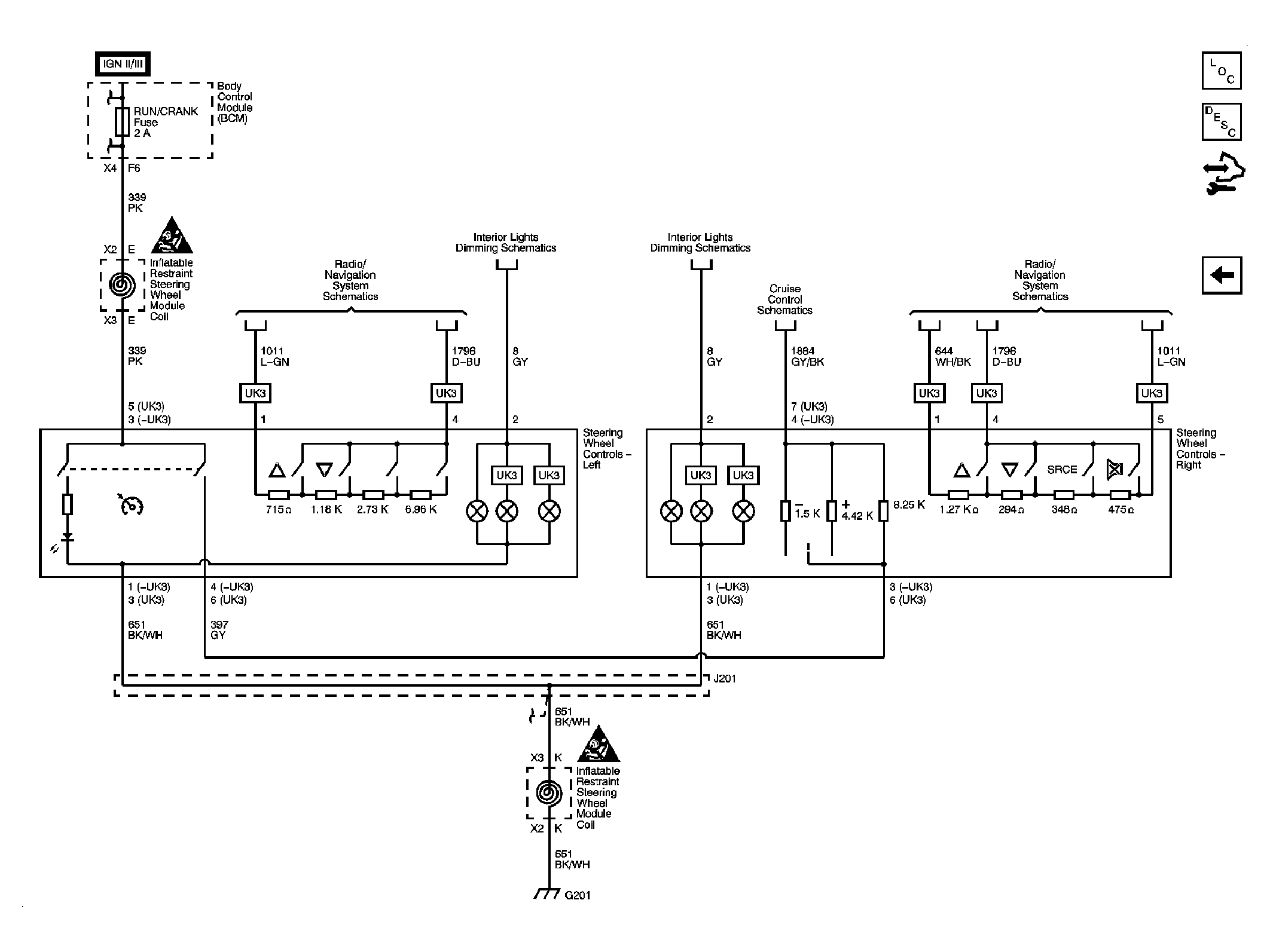

Fig 2: Steering Wheel Secondary/Configurable Control Schematic - 4-Spoke

Courtesy of GENERAL MOTORS CORP.
