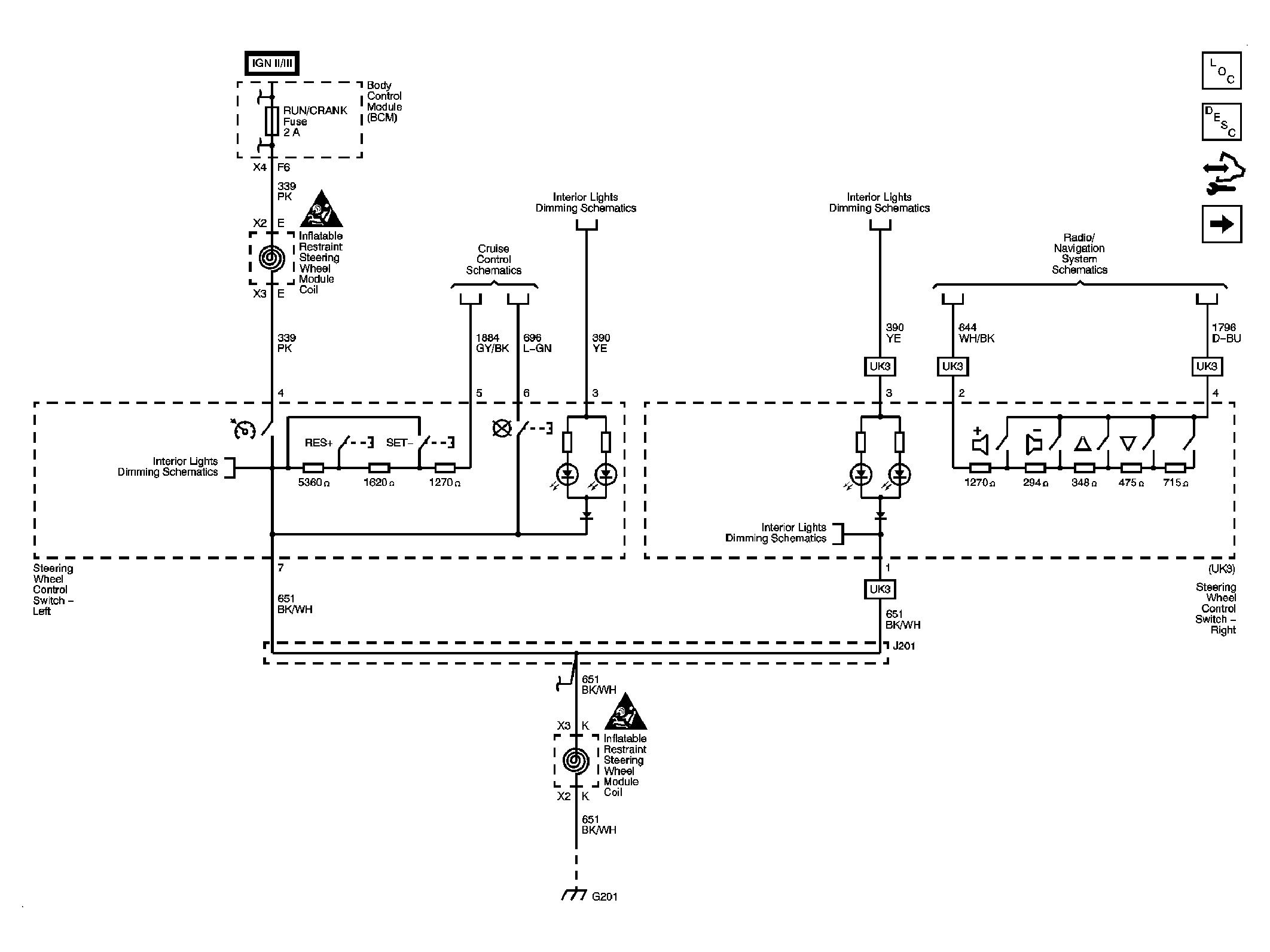

Steering Wheel Secondary/Configurable Control Schematics

WARNING: This page is about a different car, the 2010 Pontiac G6. However, it is still accessible from the selected car via links, so may be relevant.
