Front of Vehicle/Engine Compartment Component Views

Fig 1: Locating Exterior Lighting System Components, Cellular/Navigation & Digital Radio Antenna (Front of the Vehicle)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Marker Lamp - Right Front
2	Park/Turn Signal Lamp - Right Front
3	Headlamp - Low Beam - Right
4	Headlamp - High Beam - Right
5	Cellular/Navigation and Digital Radio Antenna (UE1/U2K)
6	Headlamp - High Beam - Left
7	Headlamp - Low Beam - Left
8	Park/Turn Signal Lamp - Left Front
9	Marker Lamp - Left Front
10	Fog Lamp - Left Front
11	Fog Lamp - Right Front

Fig 2: View Of Above and Forward Of Radiator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Hood Ajar Switch (AP3/AP8)

Fig 3: View Of Front Impact Bar

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Front End Sensor - Right
2	Inflatable Restraint Front End Sensor - Left

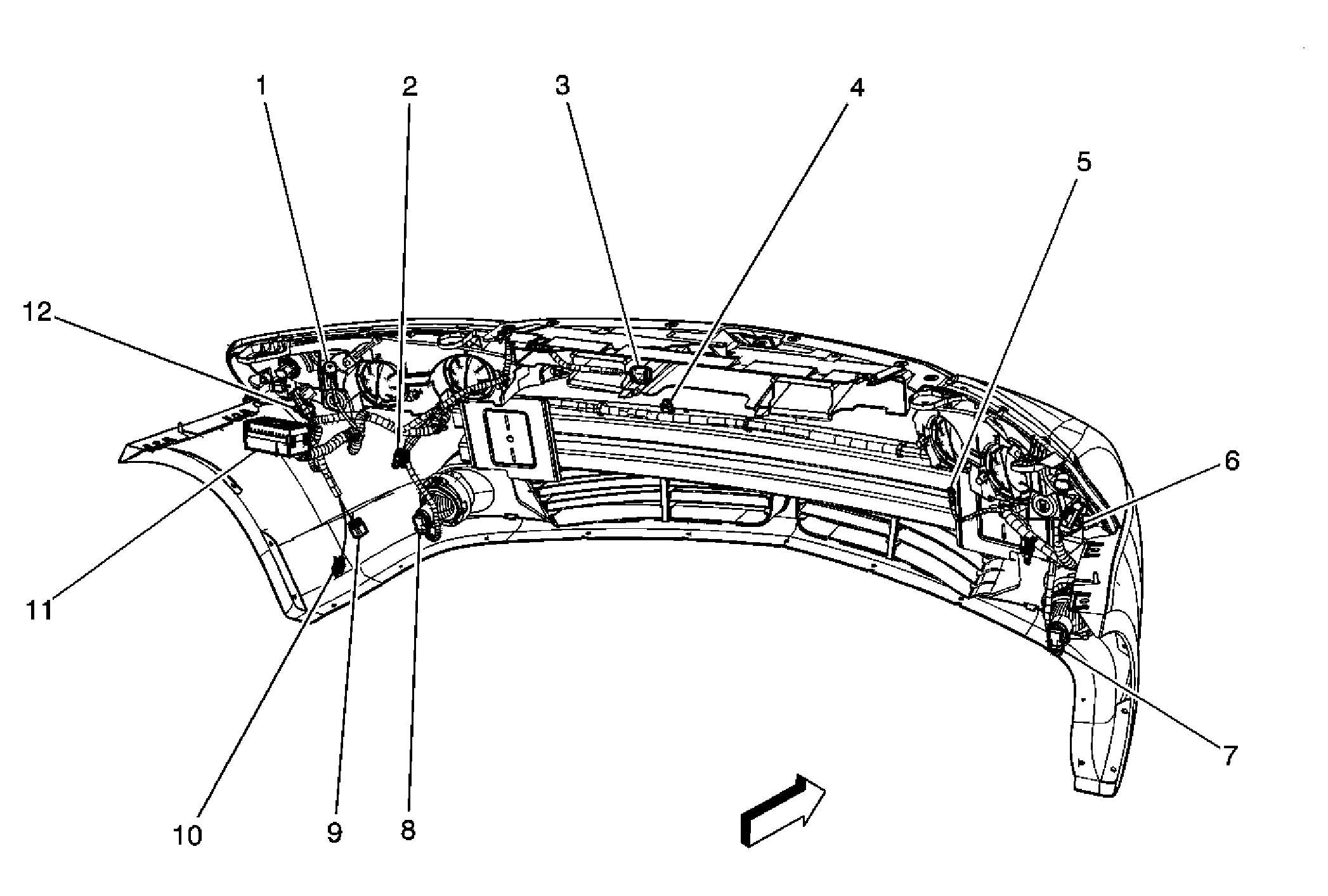

Fig 4: Locating Ambient Air Temperature Sensor (at Forward Lamp)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G101
2	Horn Assembly
3	Hood Ajar Switch (AP3)
4	Ambient Air Temperature Sensor
5	G102
6	X110 Forward Lamp Harness to Headlamp - Right
7	Fog Lamp - Right Front
8	Fog Lamp - Left Front
9	Windshield Washer Fluid Pump
10	Windshield Washer Fluid Level Switch
11	Fuse Block - Underhood X3
12	X109 Forward Lamp Harness to Headlamp - Left

Fig 5: Identifying Cooling Fans (Front Of Engine Compartment)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cooling Fan - Left
2	Cooling Fan - Right

Fig 6: Left Front Fender Well

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Washer Fluid Level Switch
2	Windshield Washer Fluid Pump
3	Horn Assembly

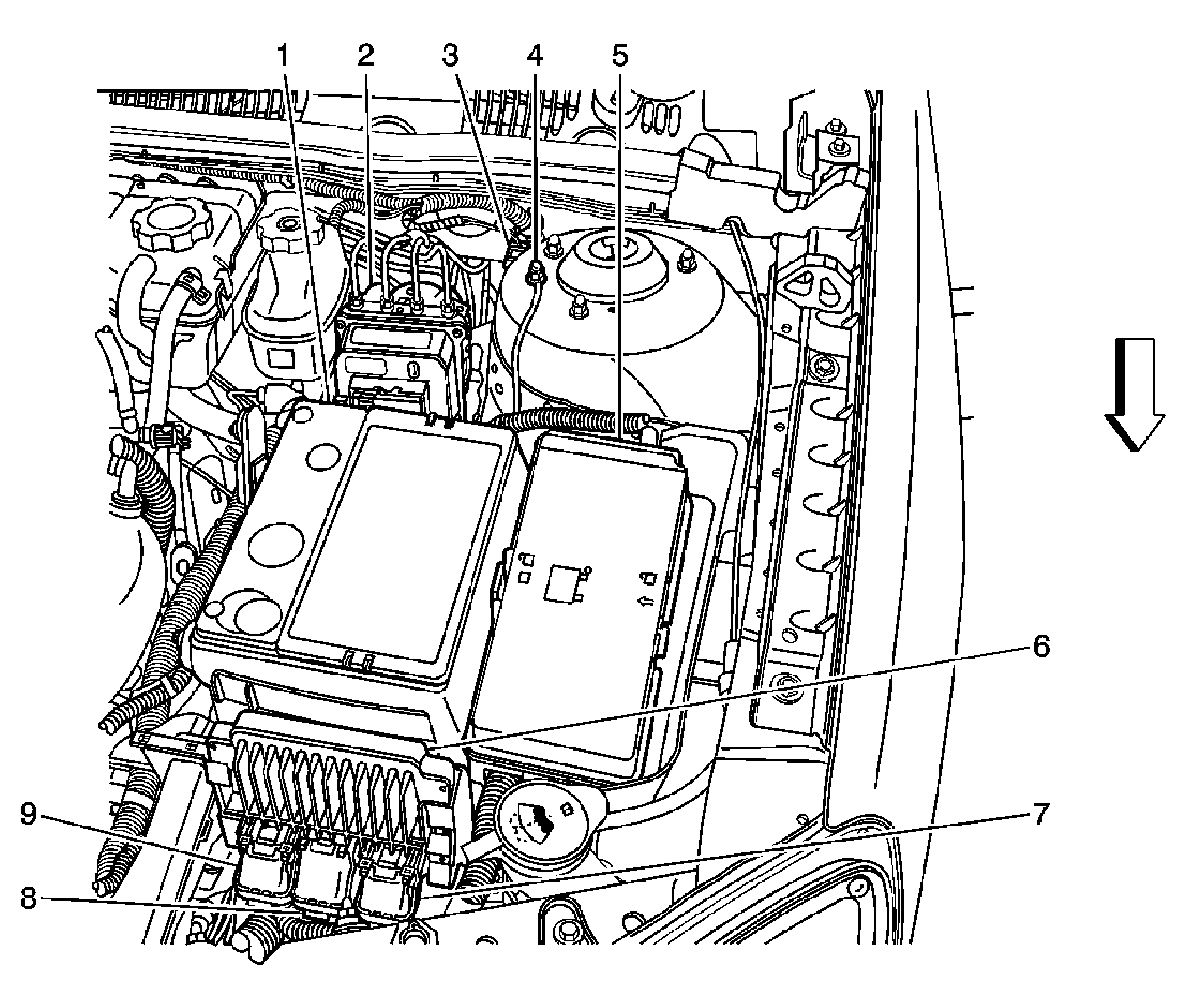

Fig 7: Left Rear of Engine Compartment Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Battery
2	Electronic Brake Control Module (EBCM)
3	X101
4	G103
5	Fuse Block - Underhood
6	Engine Control Module (ECM)
7	Engine Control Module (ECM) X3
8	Engine Control Module (ECM) X2
9	Engine Control Module (ECM) X1

Fig 8: Upper Left Rear of Engine Compartment Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Fluid Level Switch

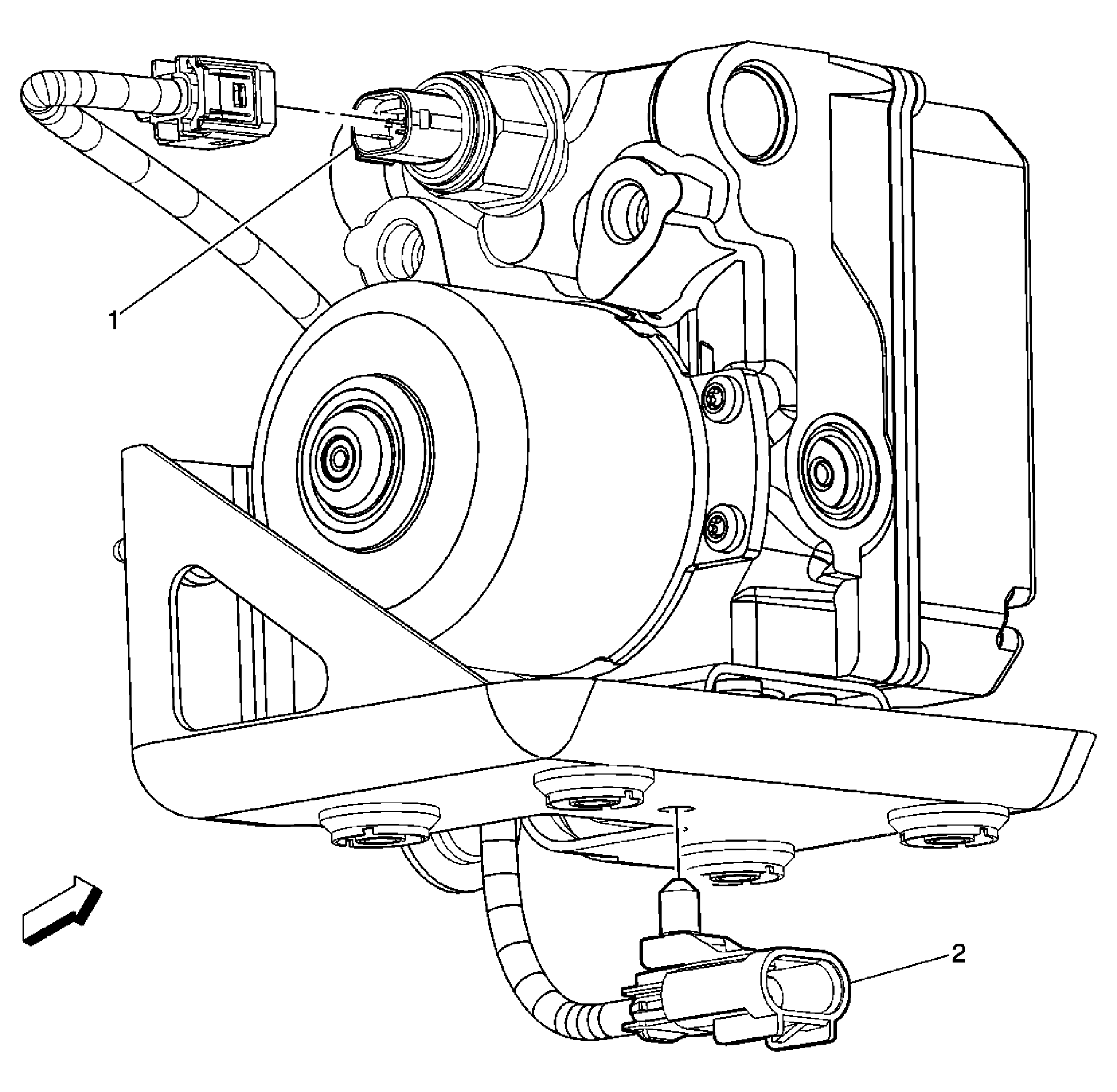

Fig 9: Locating Brake Fluid Pressure Sensor (Left Rear Of Engine Compartment) (LZ9)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Fluid Pressure Sensor (FX3)
2	X104 (FX3)

Fig 10: Under Cowl Panel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Wiper Motor Assembly

Fig 11: Right Rear of Engine Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X102
2	A/C Refrigerant Pressure Sensor
