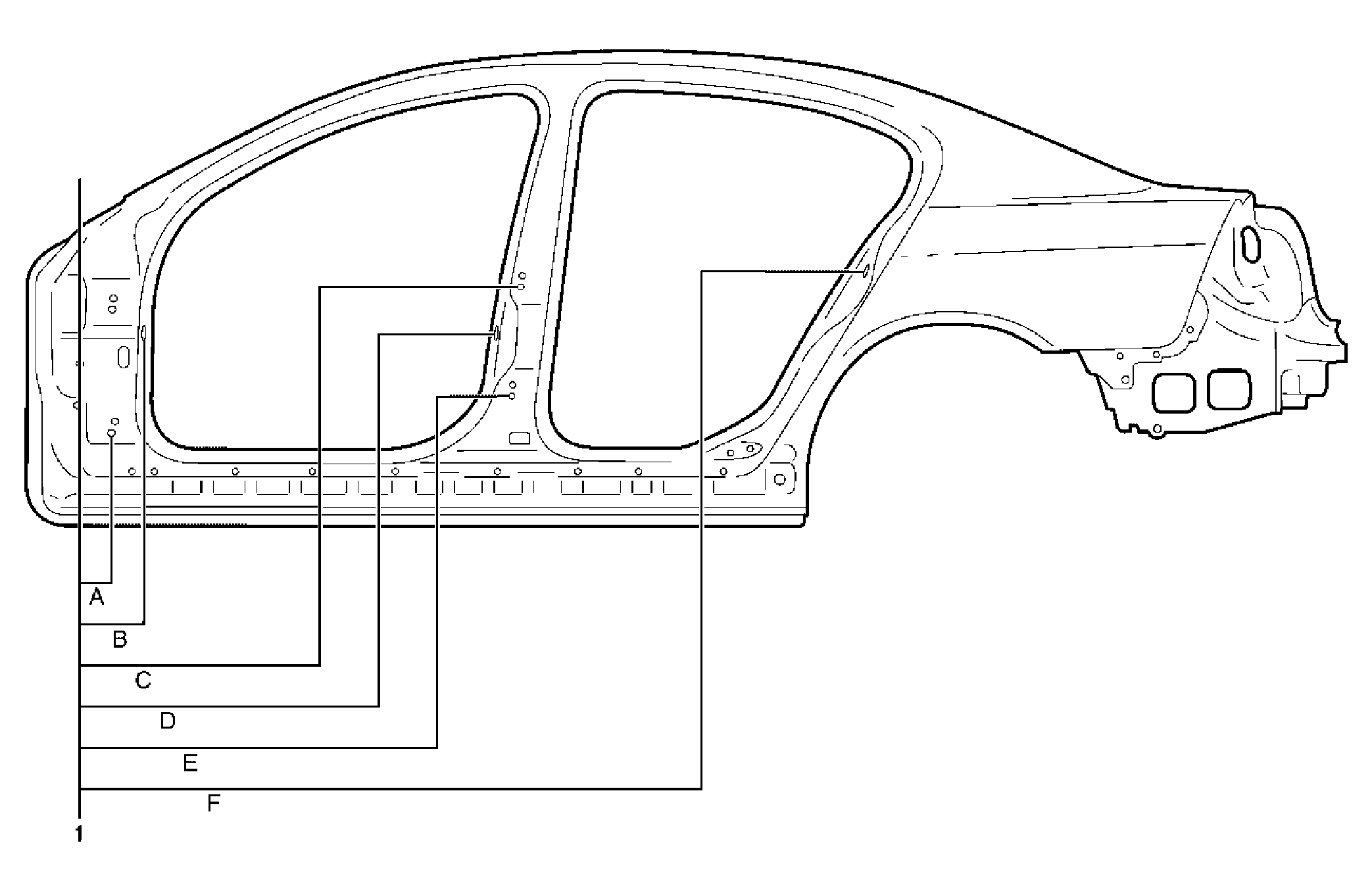

| 1 |
Zero Line 25 mm Gage Hole |
0 |
1660 mm (65.35 in) |
550 mm (21.65 in) |
| A |
Door Hinge Attach |
76 mm (2.99 in) |
1687 mm (66.42 in) |
363 mm (14.29 in) |
| B |
Door Hinge Attach |
155 mm (6.1 in) |
1592 mm (62.68 in) |
452 mm (17.8 in) |
| C |
Door Hinge Attach |
1186 mm (46.69 in) |
1704 mm (67.09 in) |
756 mm (29.76 in) |
| D |
Upper Door Lock Striker Attach |
1170 mm (46.06 in) |
1633 mm (64.29 in) |
581 mm (22.87 in) |
| E |
Door Hinge Attach |
1186 mm (46.69 in) |
1702 mm (67.01 in) |
461 mm (18.15 in) |
| F |
Upper Door Lock Striker Attach |
2131 mm (83.9 in) |
1640 mm (64.57 in) |
795 mm (31.3 in) |
| All dimensions are measured from a zero line, a center line, and a common datum. All dimensions are symmetrical unless otherwise specified. |
