Power Moding Schematics

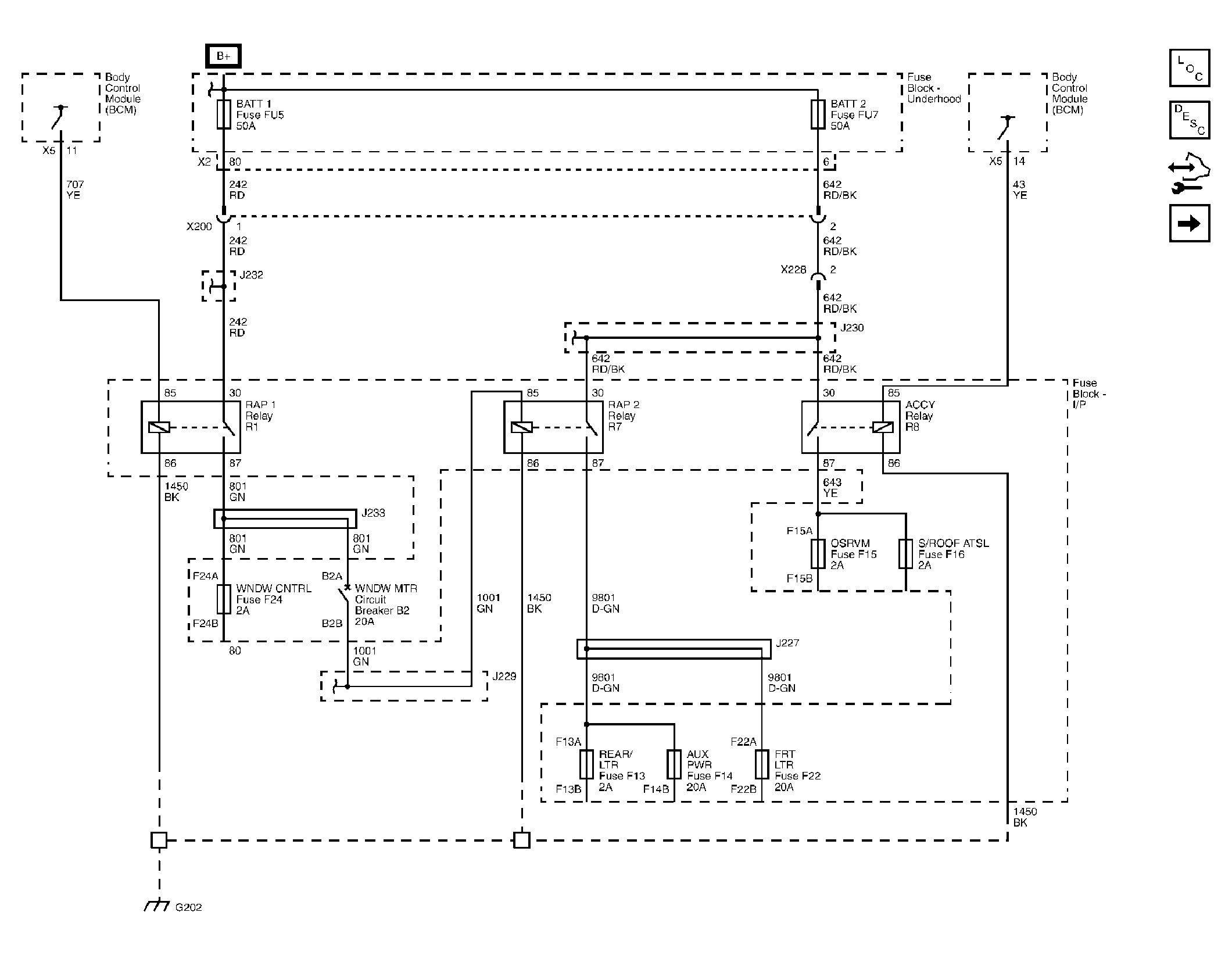

Fig 1: ACCY, RAP 1, and RAP 2 Control
GM2075267Courtesy of GENERAL MOTORS CORP.

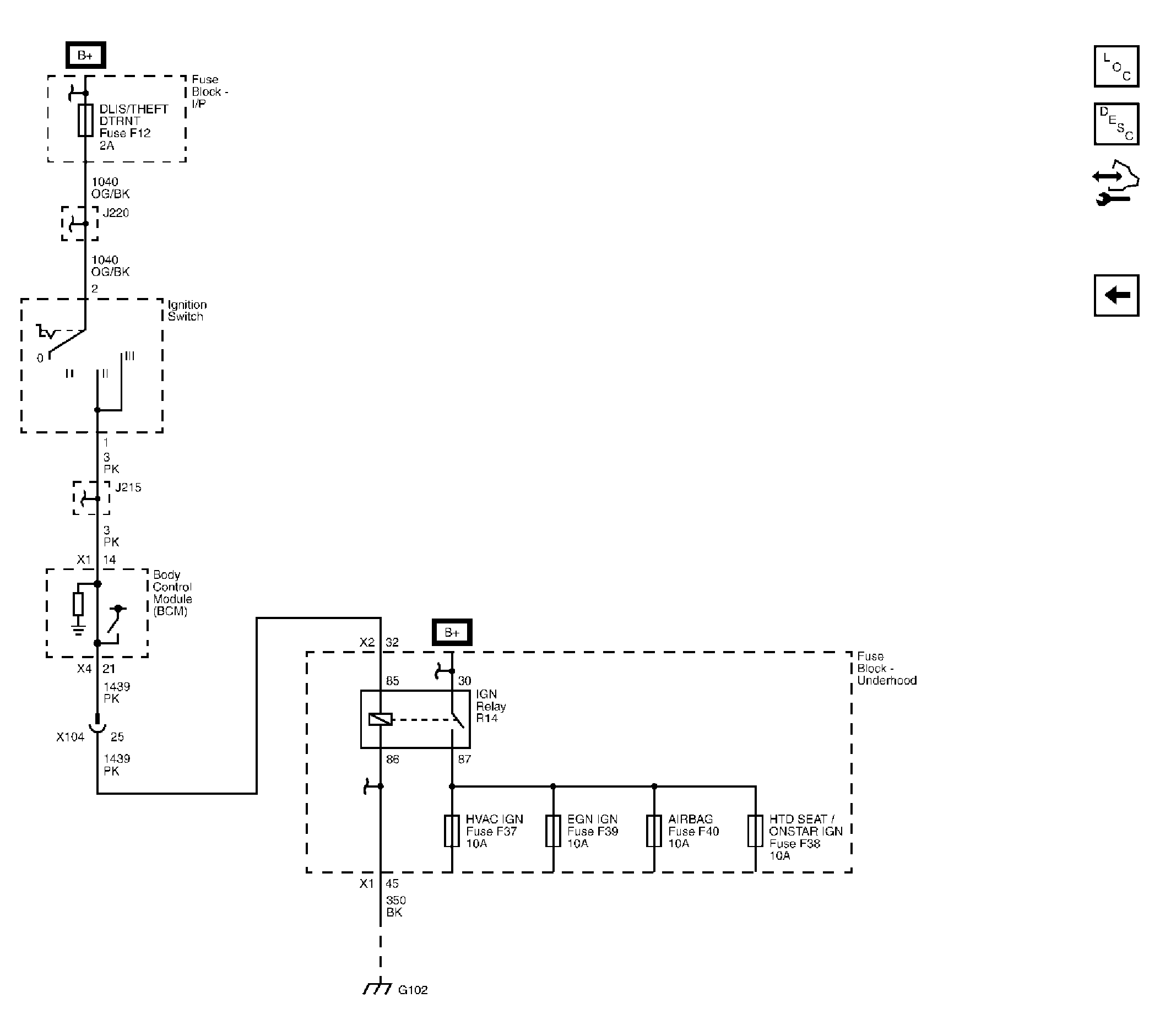

Fig 2: IGN 1 Control
GM2075264Courtesy of GENERAL MOTORS CORP.
