Moveable Window Schematics

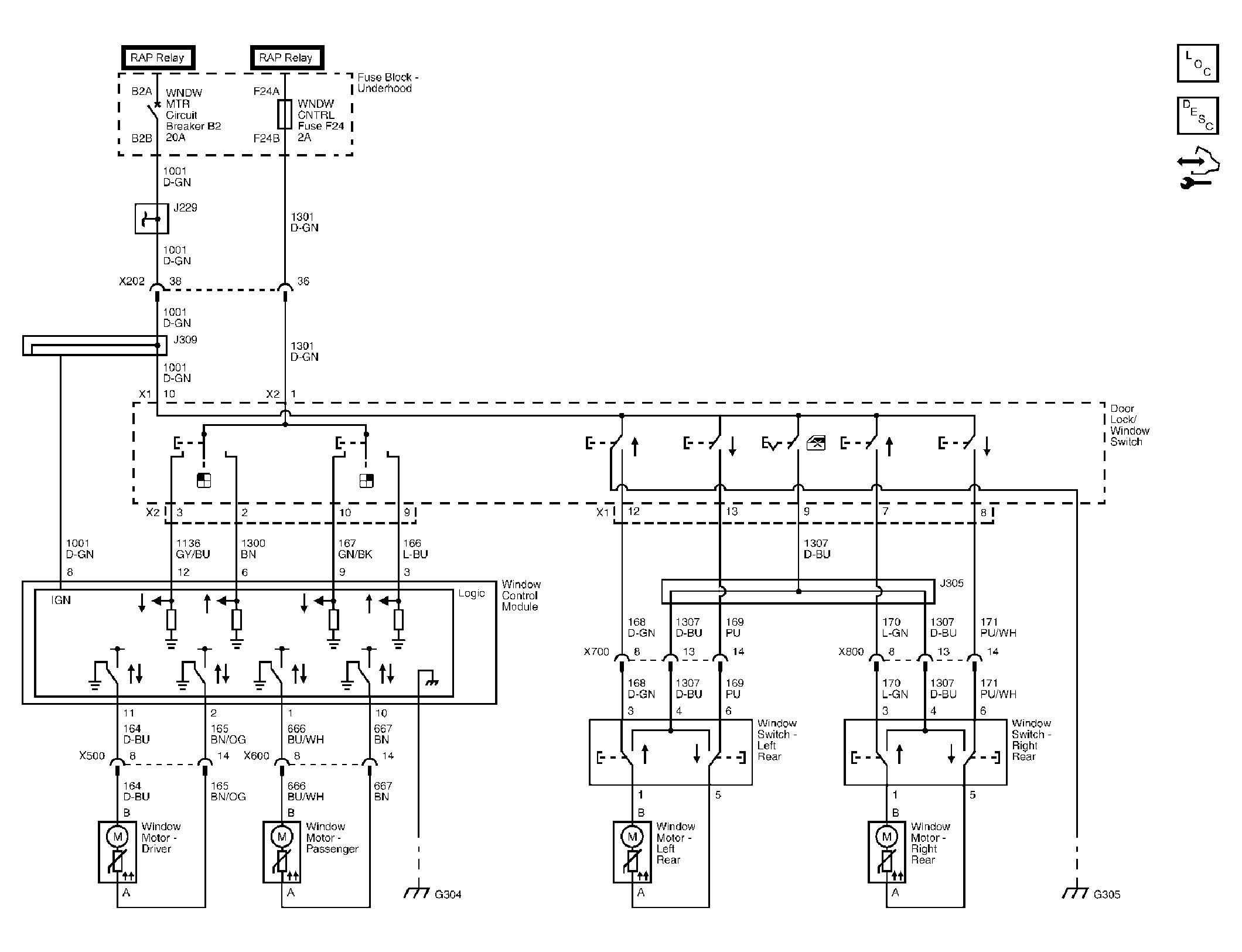

Fig 1: Identifying Moveable Window Schematics
GM2034220Courtesy of GENERAL MOTORS CORP.
