Antilock Brake System Schematics

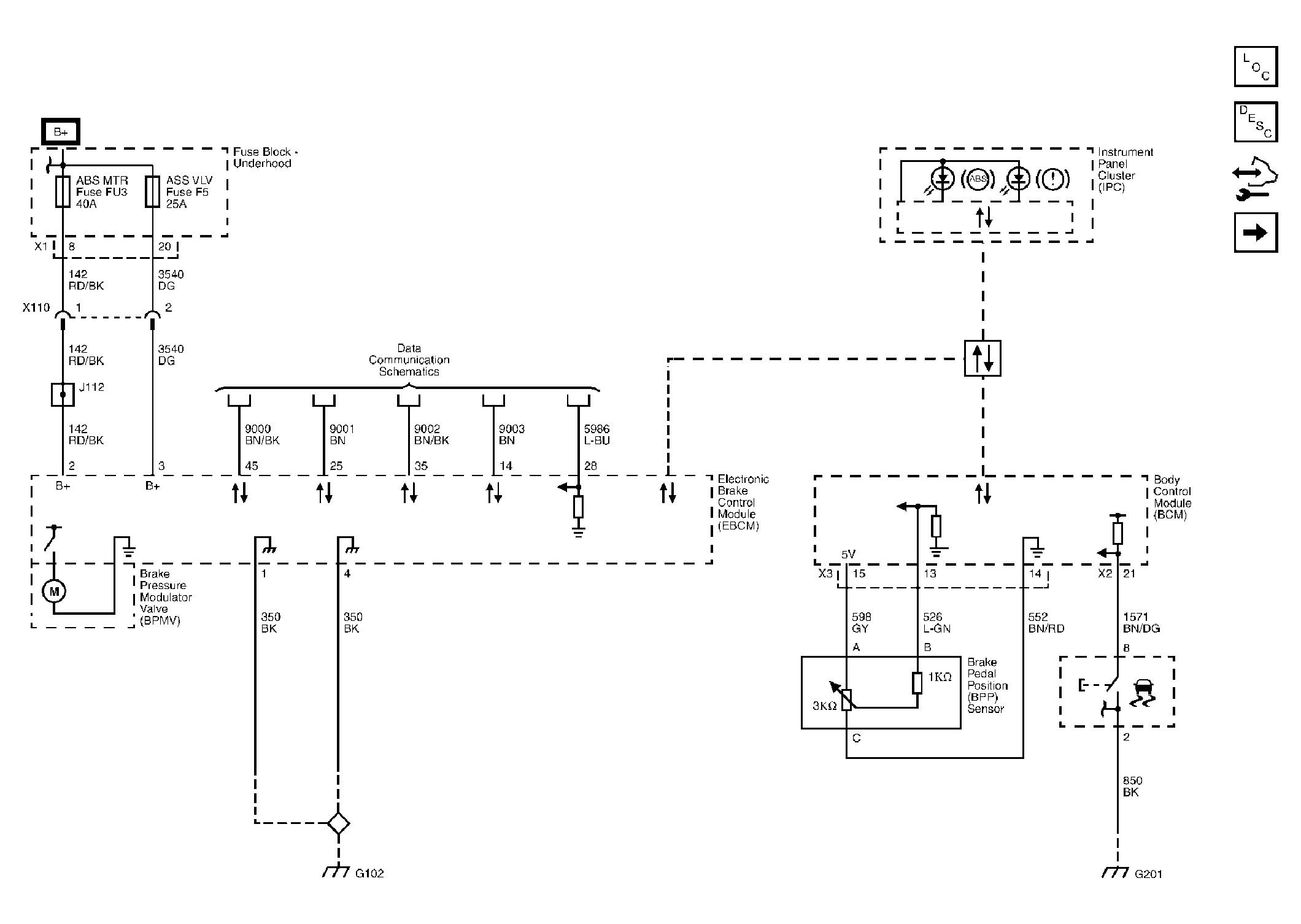

Fig 1: Module Power, Ground and Serial Data

Courtesy of GENERAL MOTORS CORP.

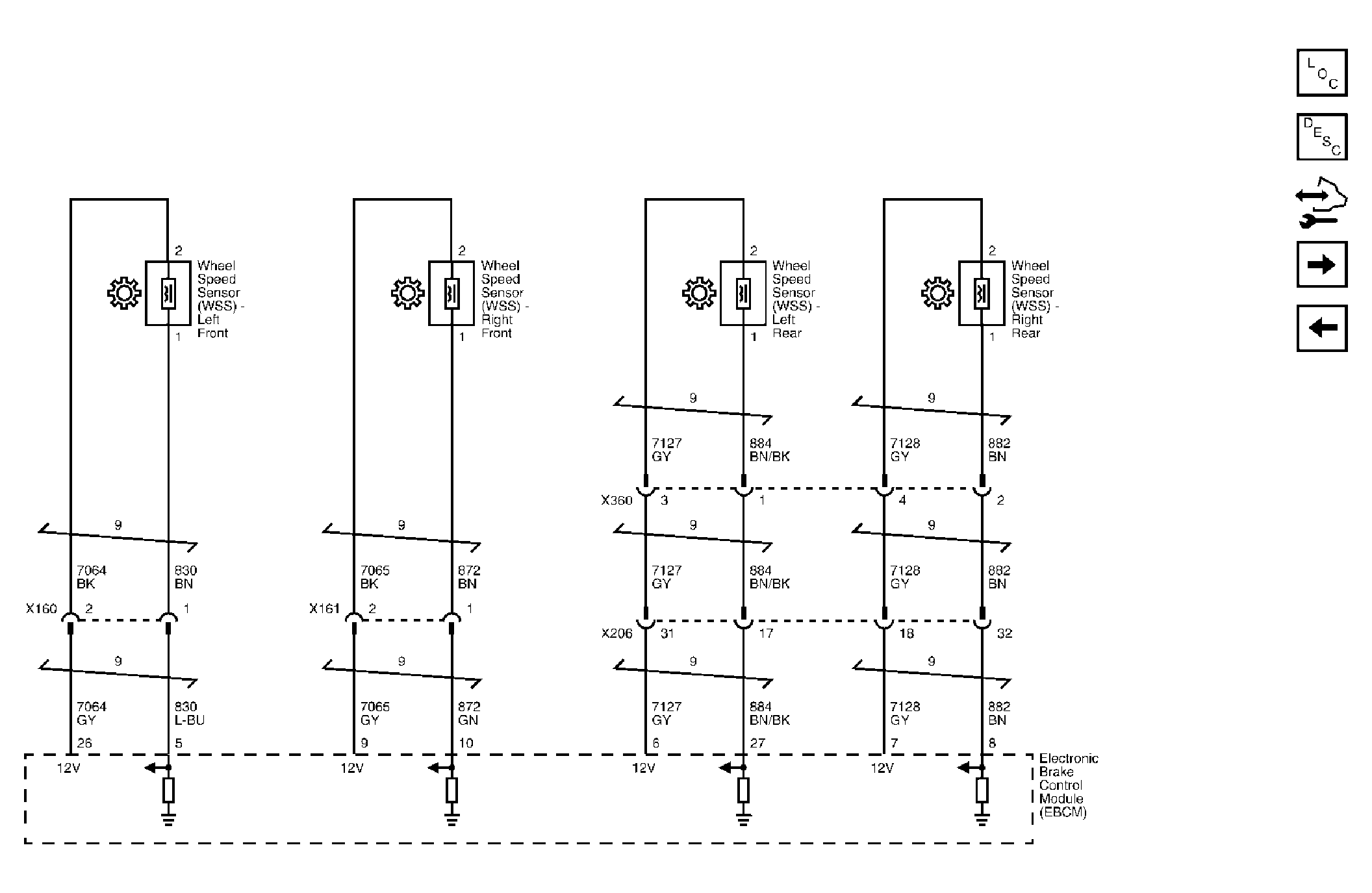

Fig 2: Wheel Speed Sensors

Courtesy of GENERAL MOTORS CORP.

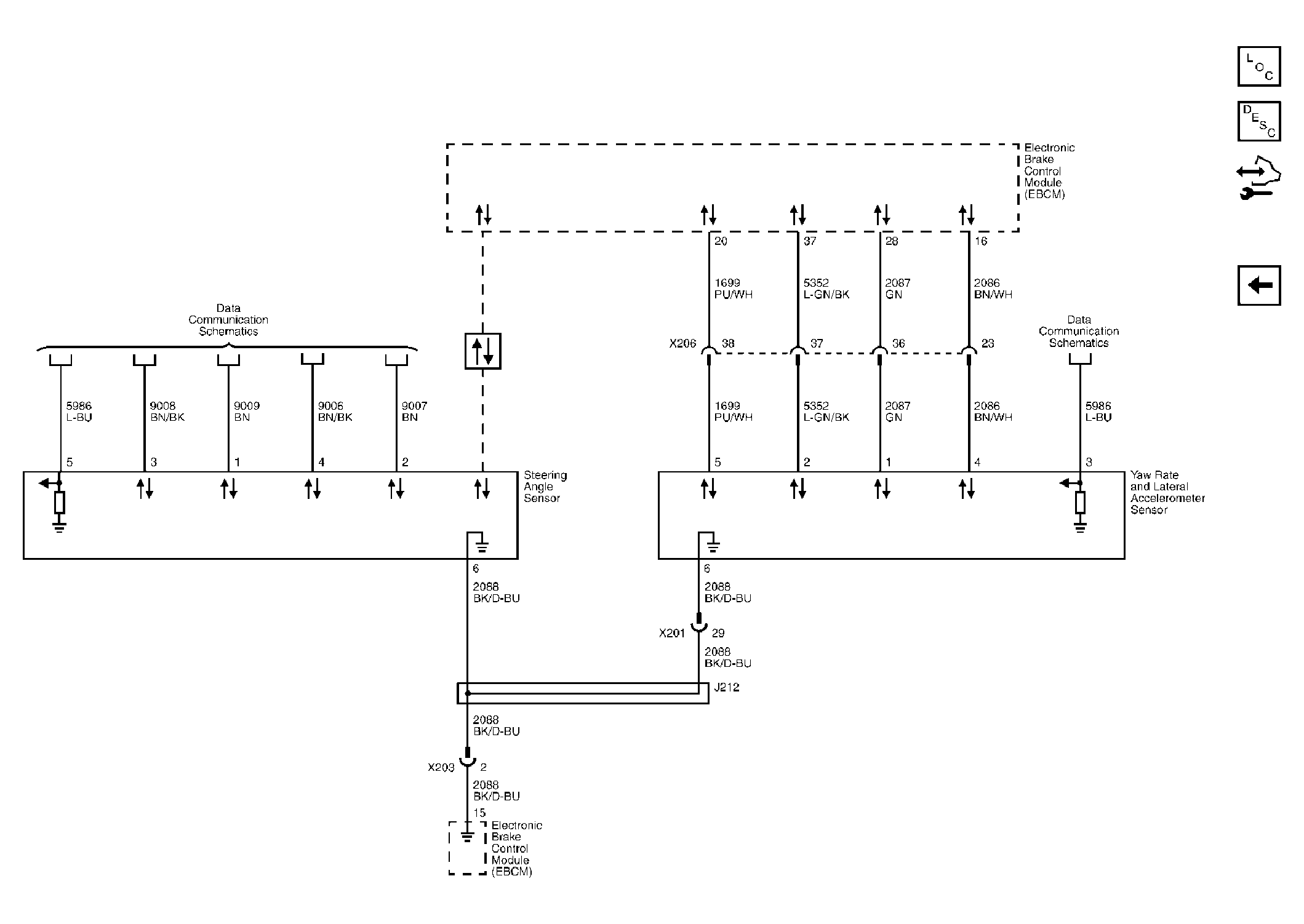

Fig 3: Electronic Stability Program Sensors

Courtesy of GENERAL MOTORS CORP.
